SNORKEL TOWABLE BOOM LIFT — TL49J
MIGHTY MOBILE

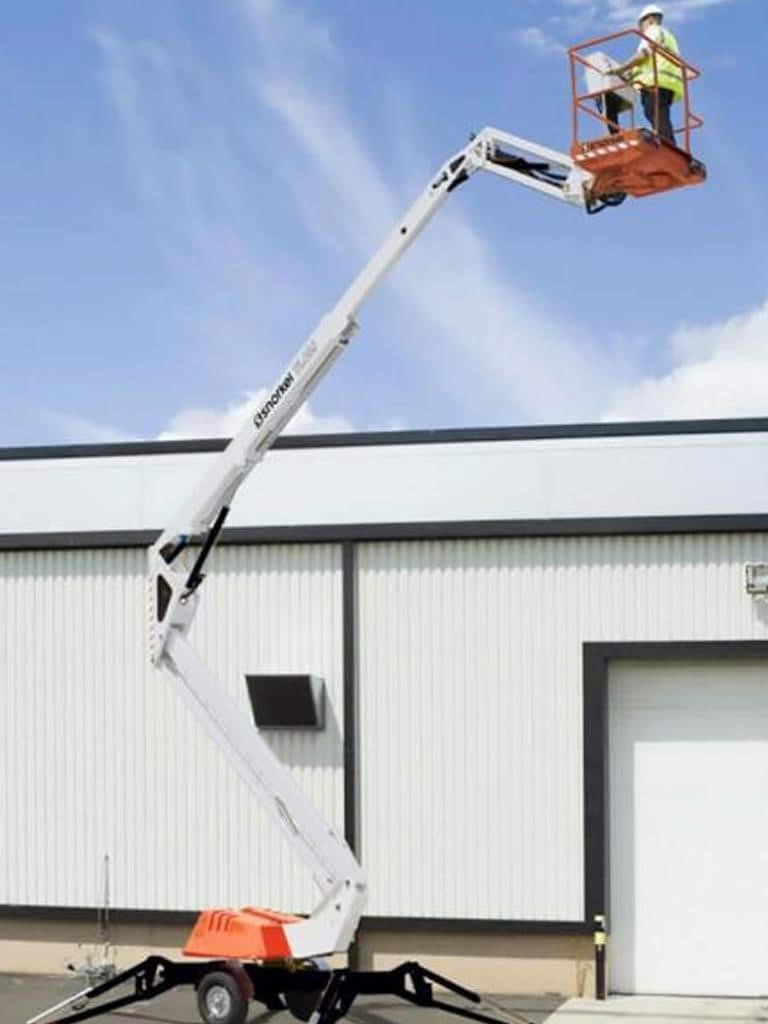

The Snorkel TL49J is a heavy-duty towable boom lift. The articulating/telescopic boom with jib offers a superb working envelope and class-leading outreach. Stabilizing outriggers include load-sensing interlocks for safe operation. Live hydraulic controls make this robust machine simple to operate and maintain.
FEATURES

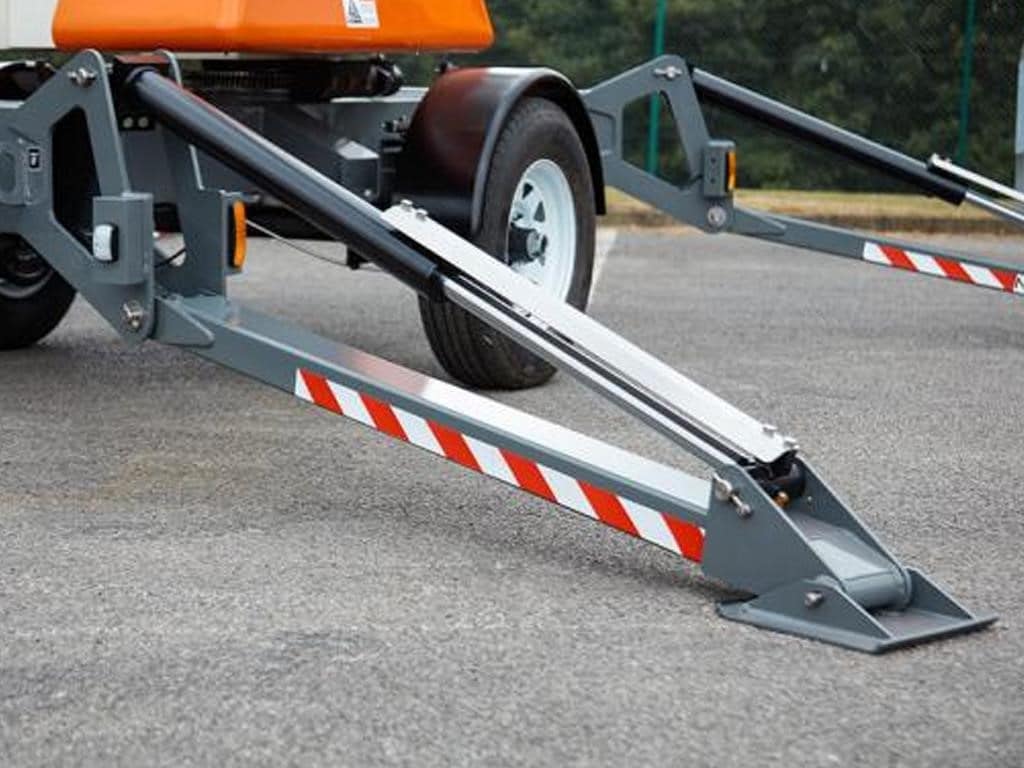

• Hydraulic stabilizers
• In-line boom design for maximum rigidity
• Hand pump emergency lowering from platform
• Lock valves on all hydraulic cylinders

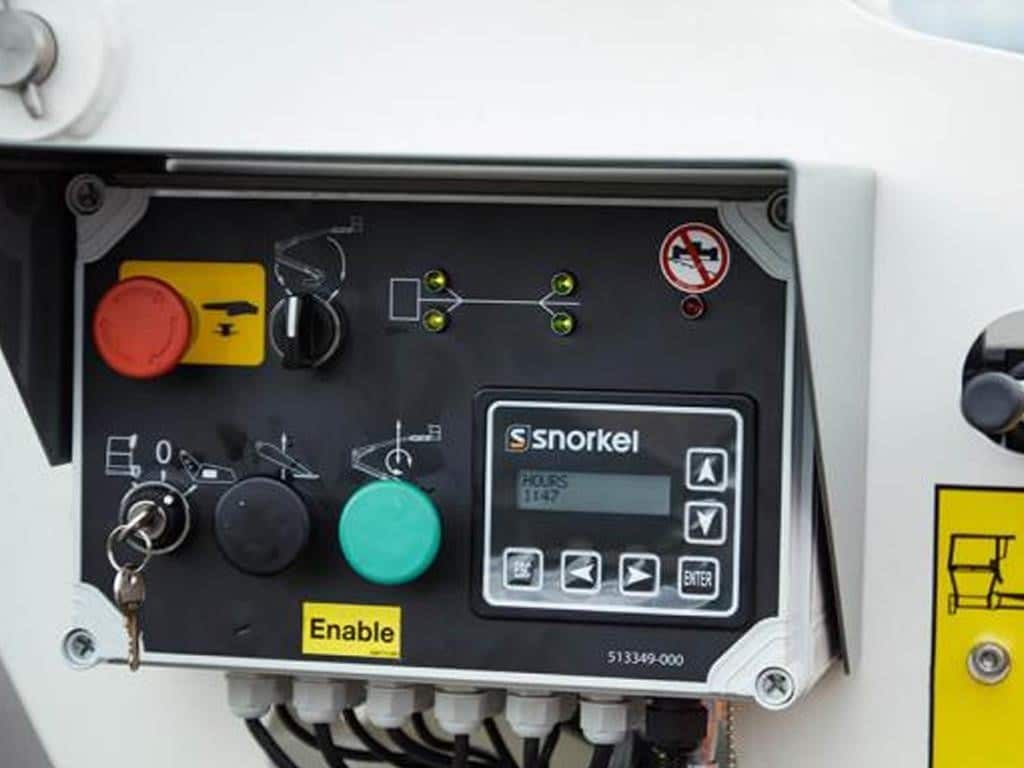

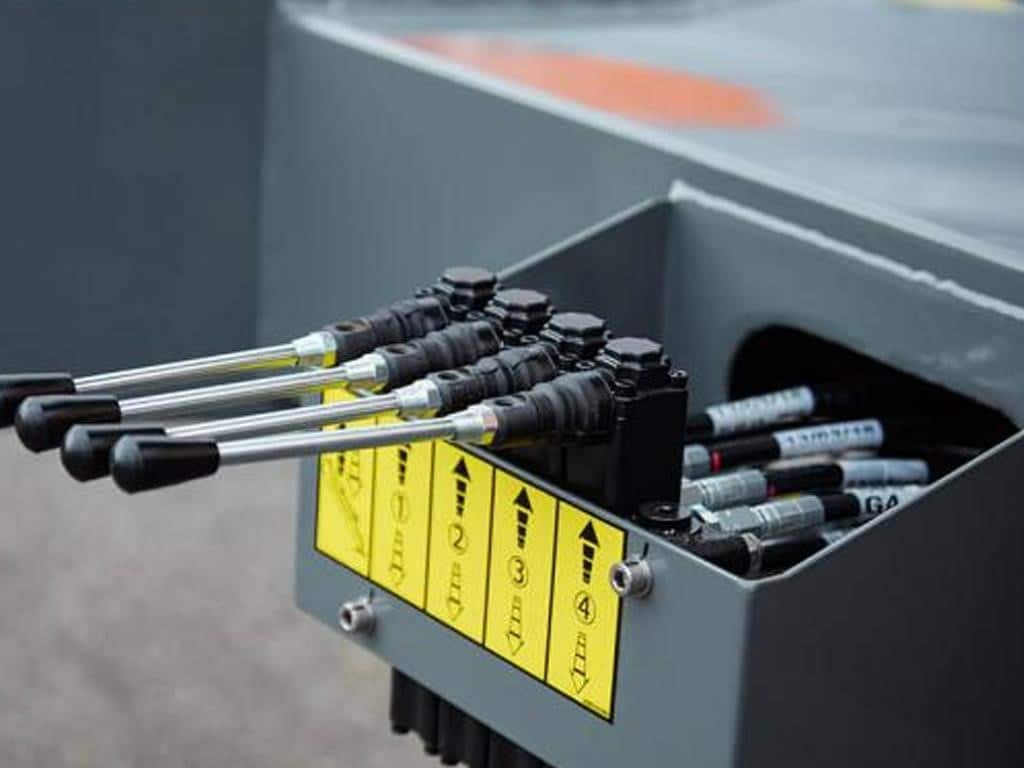

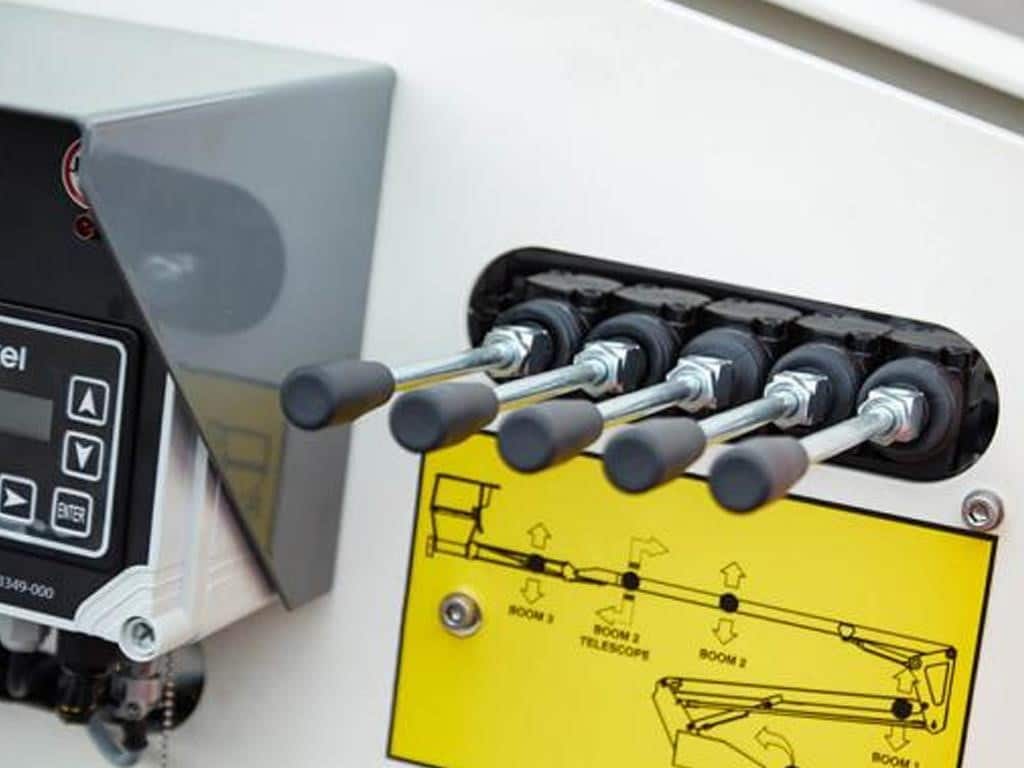

• Proportional live hydraulic controls
• Integral road lighting board
• Power line to platform
• Dual lanyard attachment points
• 2 year parts & labor, 5 year structural warranty
OPTIONS
• Special paint colors
• Work lights in platform
• Flashing amber light
• Airline to platform
• Nylon spreader pads (set of 4)
• 110V/220V AC power
• Gasoline power
• Bi-energy (gas + batteries)
• Environmental hydraulic oil
• Snorkel OnSite™ telematics
Specifications are subject to change without prior notice. Similar models may be shown in addition to the featured model. Equipment may be shown with options.

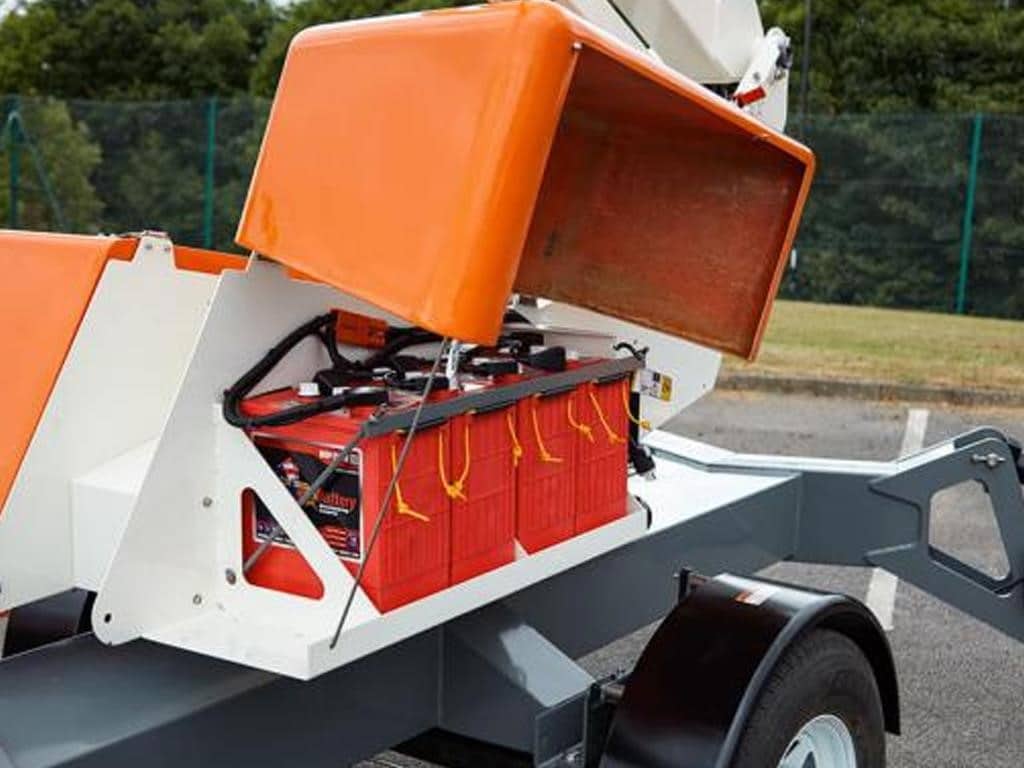

- Specifications - Battery: 4 x 6V 195Ah
- Specifications - Superstructure rotation (non-continuous): 680°
- Specifications - Platform rotation: 90°
- Specifications - Weight: 5,269 lbs
- Specifications - Towing width: 5 ft 8 in
- Specifications - Max. working height: 54 ft 8 in
- Specifications - Jib length: 4 ft 3 in
- Specifications - Platform width: 3 ft 9 in
- Specifications - Towing length: 23 ft 3 in
- Specifications - Power source: 24V DC battery
- Specifications - Max. horizontal reach: 27 ft 10 in
- Specifications - Stowed height: 7 ft 2 in
- Specifications - Power options: Gasoline; bi-energy (combustion & battery); AC electric
- Specifications - Platform depth: 2 ft 4 in
- Specifications - Wheels: 205/75R16
- Specifications - Platform capacity (SWL): 425 lbs
- Specifications - Max. platform height: 48 ft 8 in
- Specifications - Controls: Hydraulic proportional
- Specifications - Jib arc: 130°
- Specifications - Stabilizer footprint: 15 ft 9 in x 15 ft 5 in
- Specifications - Max. wind speed: 28 mph
