SNORKEL TOWABLE BOOM LIFT — TL37J
TRULY TOWABLE

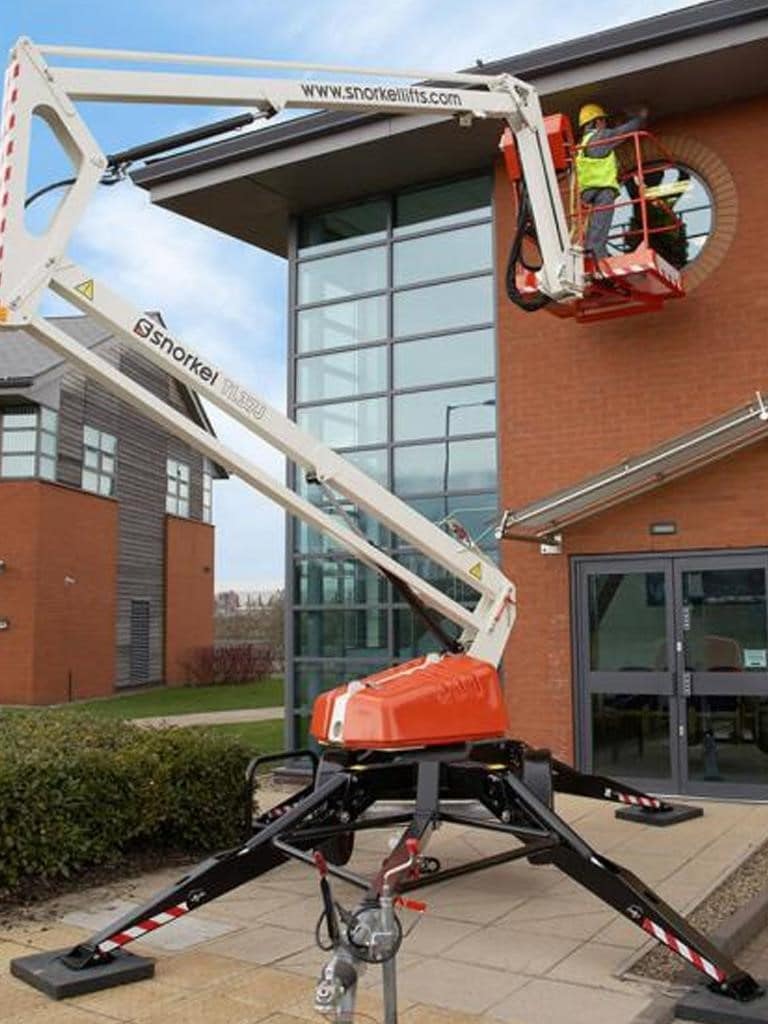

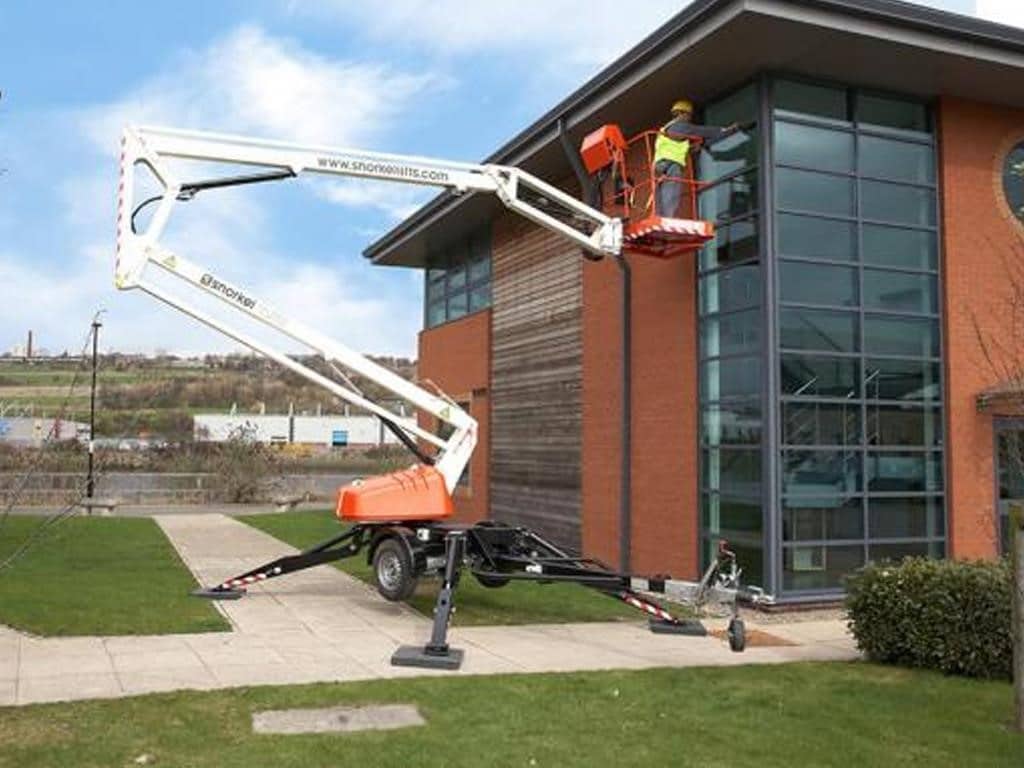

The Snorkel TL37J is a high specification trailer-mounted boom lift. This highly maneuverable towable lift has fully proportional hydraulics and up-and-over access. Powered platform rotation and auto-leveling outriggers come as standard. This articulating boom also offers a bi-energy option for clean and quiet indoor use.
FEATURES
• 4ft 3in, 130° jib (1.3m jib with 130˚ working arc)
• In-line boom design for maximum rigidity
• Hydraulic stabilizers
• Hand pump emergency lowering from platform
• Lock valves on all hydraulic cylinders
• Proportional live hydraulic controls
• Power line to platform
• Dual lanyard attachment points
• 2 year parts & labor, 5 year structural warranty
OPTIONS
• Special paint colors
• Friction drive assist package
• Flashing amber light
• Work lights in platform
• Nylon spreader pads (set of 4)
• Environmental hydraulic oil
• Snorkel OnSite™ telematics
Specifications are subject to change without prior notice. Similar models may be shown in addition to the featured model. Equipment may be shown with options.
- Specifications - Stabilizer footprint: 12 ft 9 in x 10 ft 10 in
- Specifications - Towing length: 20 ft 11 in
- Specifications - Wheels: 185R14C
- Specifications - Platform depth: 2 ft 4 in
- Specifications - Platform capacity (SWL): 475 lbs
- Specifications - Towing width: 5 ft 3 in
- Specifications - Battery: 4 x 6V 225Ah
- Specifications - Superstructure rotation (non-continuous): 700°
- Specifications - Max. horizontal reach: 18 ft 5 in
- Specifications - Power source: 24V DC battery
- Specifications - Max. platform height: 35 ft 9 in
- Specifications - Stowed height: 6 ft 11 in
- Specifications - Platform width: 3 ft 9 in
- Specifications - Weight: 3,498 lbs
- Specifications - Jib length: 4 ft 3 in
- Specifications - Controls: Hydraulic proportional
- Specifications - Max. wind speed: 28 mph
- Specifications - Jib arc: 130°
- Specifications - Power options: Gasoline; bi-energy (combustion & battery); AC electric
- Specifications - Max. working height: 41 ft 9 in
- Specifications - Platform rotation: 160°
