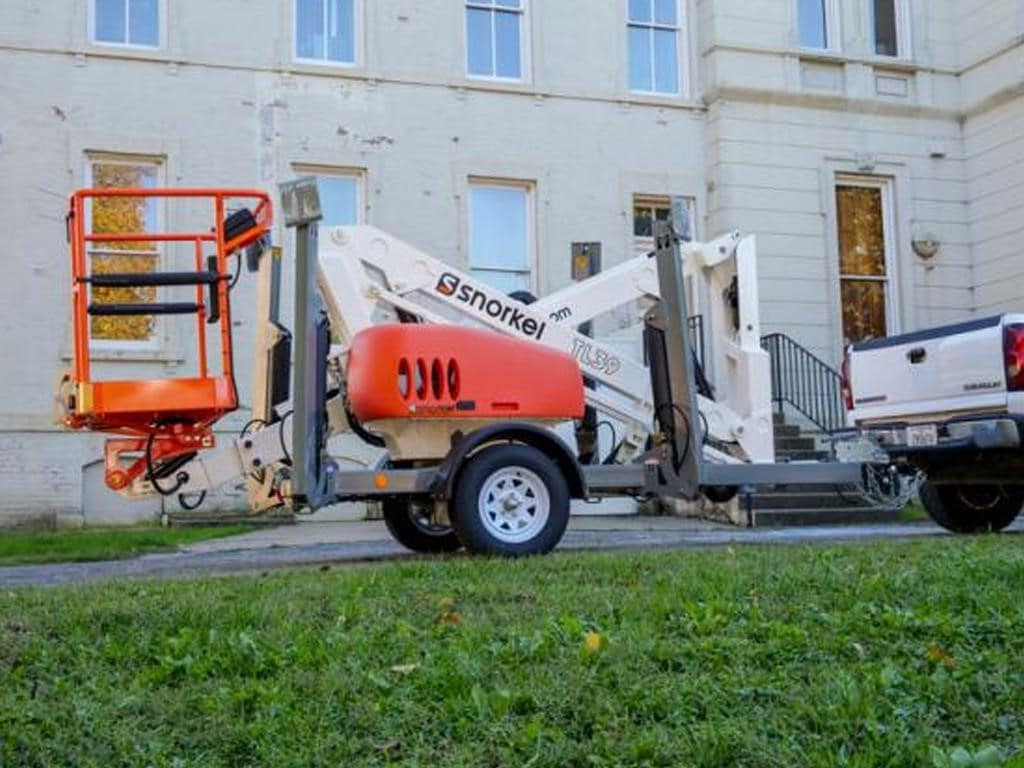

SNORKEL TOWABLE BOOM LIFT — TL39
EASILY PORTABLE

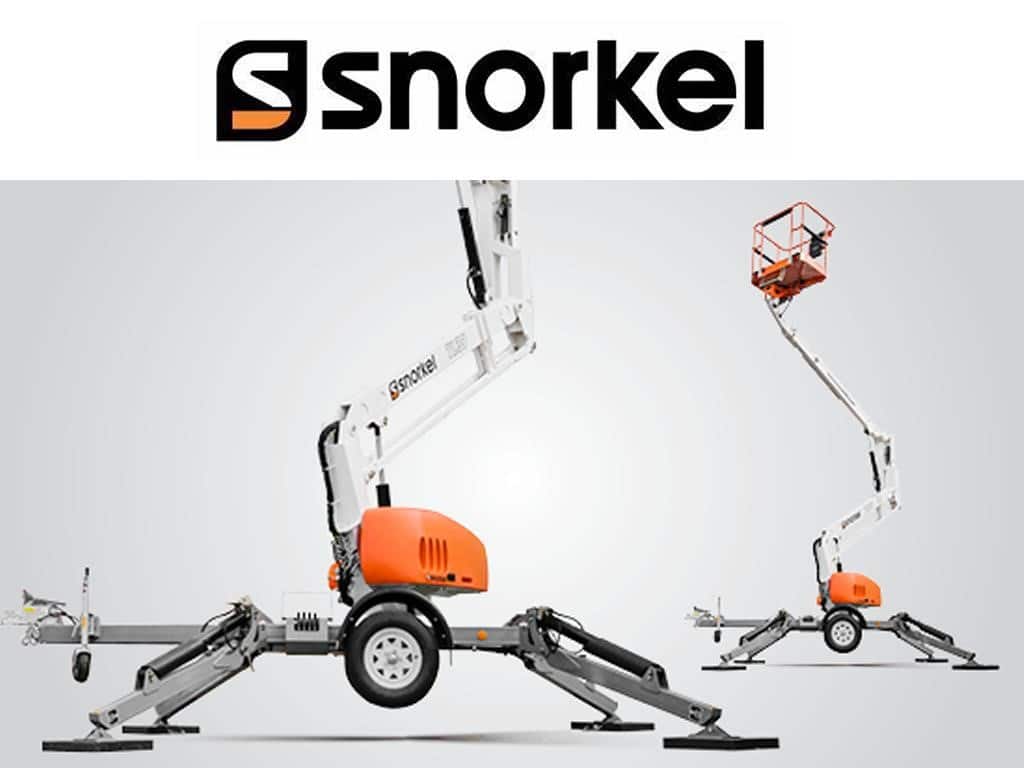

The Snorkel TL39 is a compact articulating/telescopic trailer boom. Easy to stow and tow, this boom lift is also simple to operate. An excellent working envelope provides high performance in a range of applications. Hydraulically powered fold-down outriggers come as standard with optional auto-leveling.
FEATURES
• Articulating / telescopic boom configuration

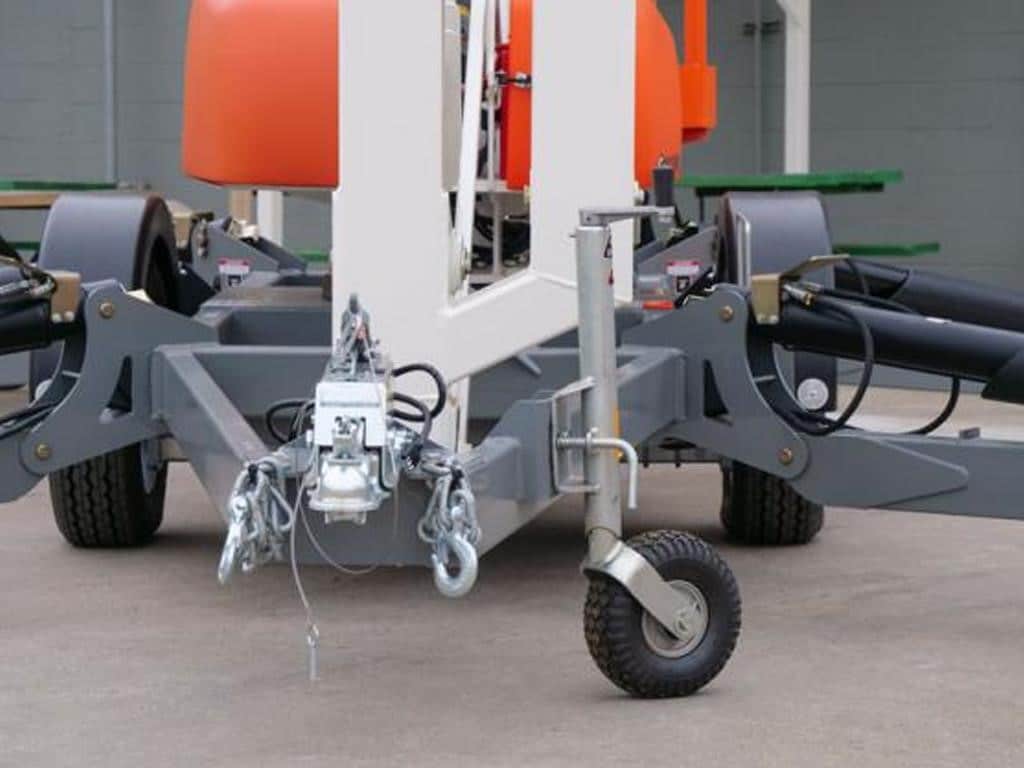

• Hydraulic outriggers

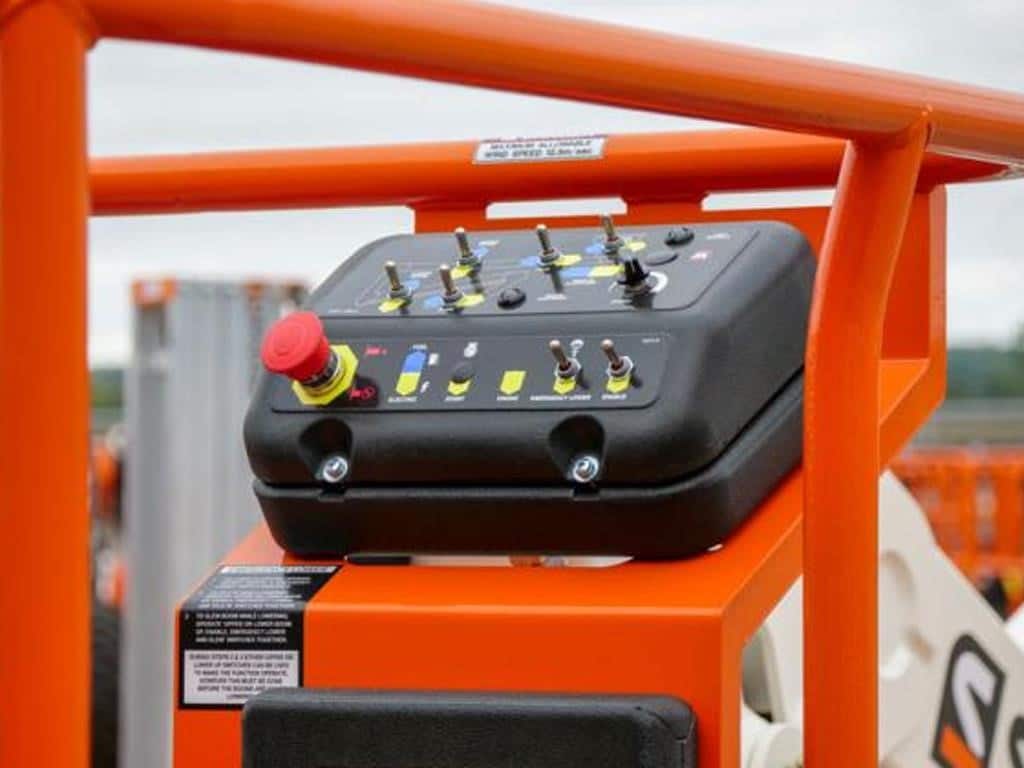

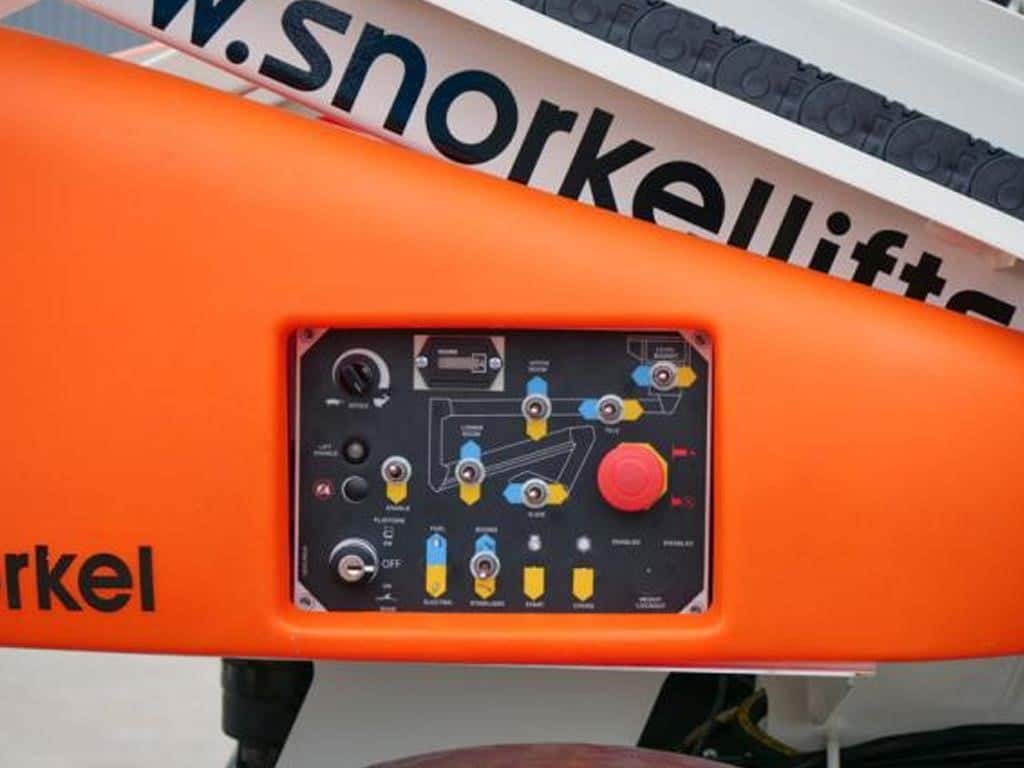

• Electric controls at platform
• Power line to platform
• Hydraulic platform rotate
• Integral road lighting board
• Integrated automatic battery charger 110V-230V
• Dual lanyard attachment points
• 2 year parts & labour, 5 year structural warranty
OPTIONS
• Special paint colours
• Work lights in platform
• Airline to platform
• Flashing amber light
• Nylon spreader pads (set of 4)
• Environmental hydraulic oil
• Snorkel OnSite™ telematics
Specifications are subject to change without prior notice. Similar models may be shown in addition to the featured model. Equipment may be shown with options.
- Specifications - Wheels: 185R14 C8
- Specifications - Superstructure rotation (non-continuous): 540°
- Specifications - Power source: 24V DC battery
- Specifications - Towing length: 16 ft 8 in
- Specifications - Platform width: 4 ft 1 in
- Specifications - Controls: Electric over hydraulic, variable speed
- Specifications - Power options: Gasoline; bi-energy (combustion & battery); AC electric, diesel
- Specifications - Platform depth: 2 ft 4 in
- Specifications - Stowed height: 6 ft 7 in
- Specifications - Max. horizontal reach: 21 ft
- Specifications - Max. platform height: 37 ft 9 in
- Specifications - Weight: 3,703 lbs
- Specifications - Towing width: 5 ft 3 in
- Specifications - Max. working height: 43 ft 9 in
- Specifications - Stabilizer footprint: 13 ft 1 in x 11 ft 10 in
- Specifications - Platform capacity (SWL): 475 lbs
- Specifications - Max. wind speed: 28 mph
