SNORKEL TELESCOPIC BOOM LIFT — TB126J
OUTSTANDING OUTREACH

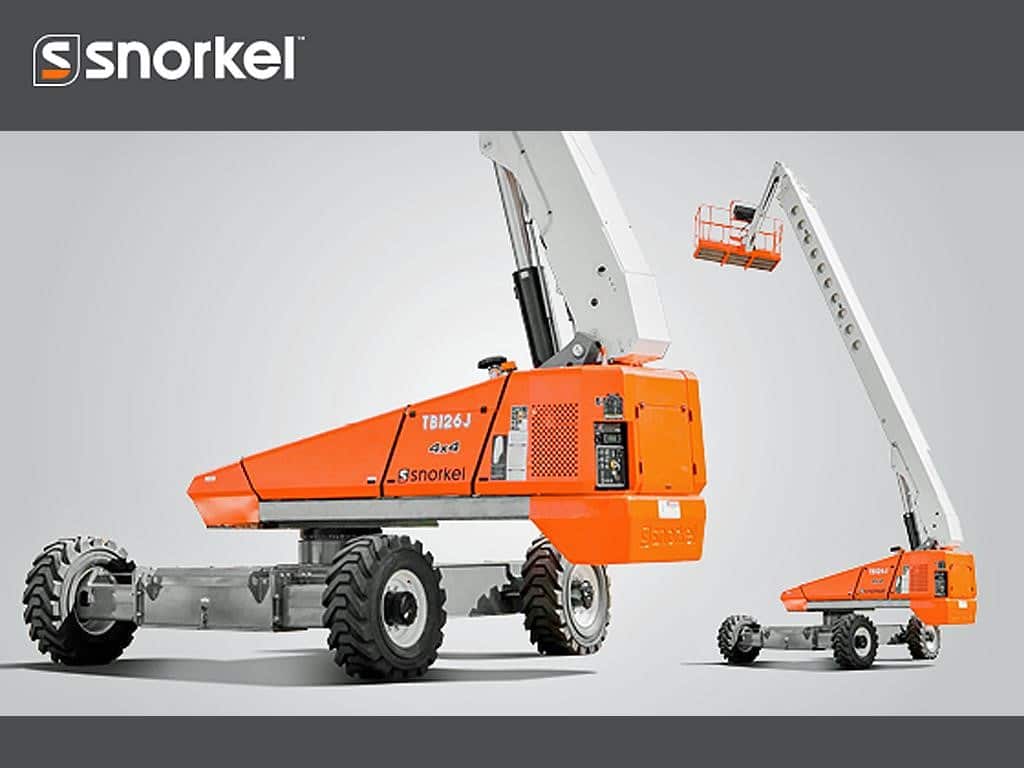

The Snorkel TB126J is the largest model in the line of telescopic boom lifts. The TB126J offers the highest working height in the family with a jib for added outreach. Designed for construction applications, a powerful diesel engine comes as standard, along with a fixed front axle and extendable rear axle.
FEATURES
• Snorkel Guard™ secondary guarding system
• 6 ́ 6 ̋ 135° jib / 2.0m 135º jib
• Four wheel drive, braking & fixed front steering
• Hydraulic platform rotation
• 360° continuous turntable rotation

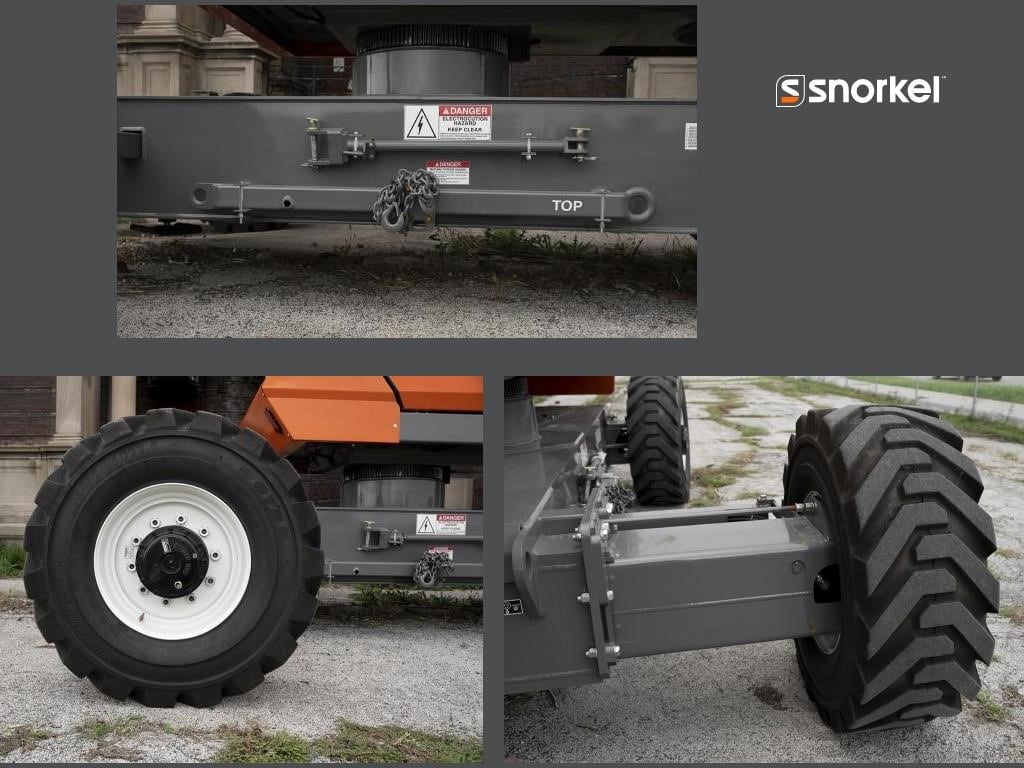

• Hydraulic extended rear axles w/ boom interlocks
• Built-in jack for raising chassis
• Flashing amber light
• Proportional drive, lift, swing, extend & jib (if equipped)
• Dual lanyard attachment points
• Foam filled tires
• Power line to platform
• 3.5º tilt & cut out
• 2 year parts & labor, 5 year structural warranty
OPTIONS
• Special paint colors
• Airline to platform
• Non-marking tires
• AC generator 110V/2.5kW
• Cold weather package
• Extreme cold weather package
• Extreme environment package
• Light package
• Glazier package
• Utility package
• 12kW generator package
• 12kW generator/Welder package
• Tow kit
• Environmental hydraulic oil
• Tool tray
• Snorkel OnSite™ telematics
• Personal fall arrest system
Specifications are subject to change without prior notice. Similar models may be shown in addition to the featured model. Equipment may be shown with options.
- Specifications - Max. drive height: 126 ft
- Specifications - Overall width: 8 ft 6 in
- Specifications - Tires: 445-65 D22.5 foam filled lug
- Specifications - Stowed height: 10 ft 5 in
- Specifications - Tailswing (axles extended): 54.25 in
- Specifications - Max. working height: 132 ft
- Specifications - Max. drive speed (stowed): 2.9 mph
- Specifications - Max. platform height: 126 ft
- Specifications - Max. horizontal reach: 62 ft 11 in
- Specifications - Stowed length: 44 ft 9 in
- Specifications - Power source: Kubota V2403 65hp diesel - Tier 4 Final
- Specifications - Tailswing (axles retracted): 80.5 in
- Specifications - Gradeability: 30%
- Specifications - Platform rotation: 180°
- Specifications - Superstructure rotation: 360° continuous
- Specifications - Ground clearance: 13 in
- Specifications - Outside turning radius: 33 ft
- Specifications - Raise / lower time: 208 / 215 sec
- Specifications - Jib working arc: 135°
- Specifications - Max. wind speed: 28 mph
- Specifications - Weight: 41,800 lbs
- Specifications - Platform capacity (SWL): 500 lbs
- Specifications - Jib length: 5 ft 6 in
- Specifications - Controls: Proportional joystick
- Specifications - Drive system: 4 wheel drive
- Specifications - Platform size: 8 ft x 3 ft
- Specifications - Max. drive speed (elevated): 0.15 mph
