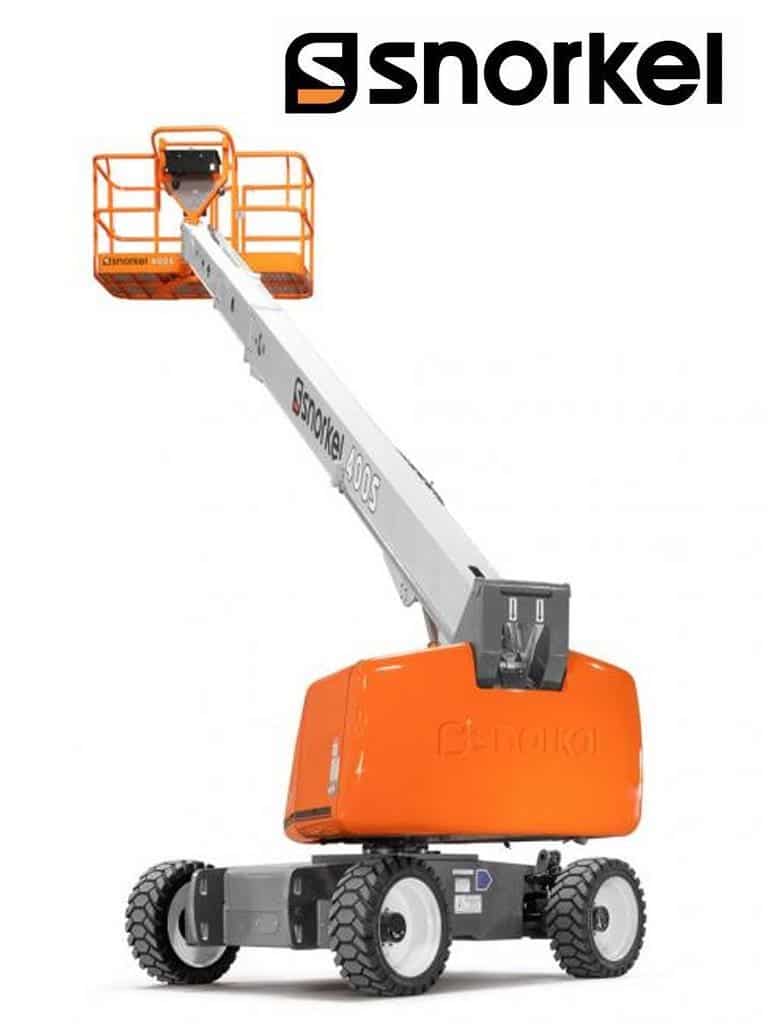

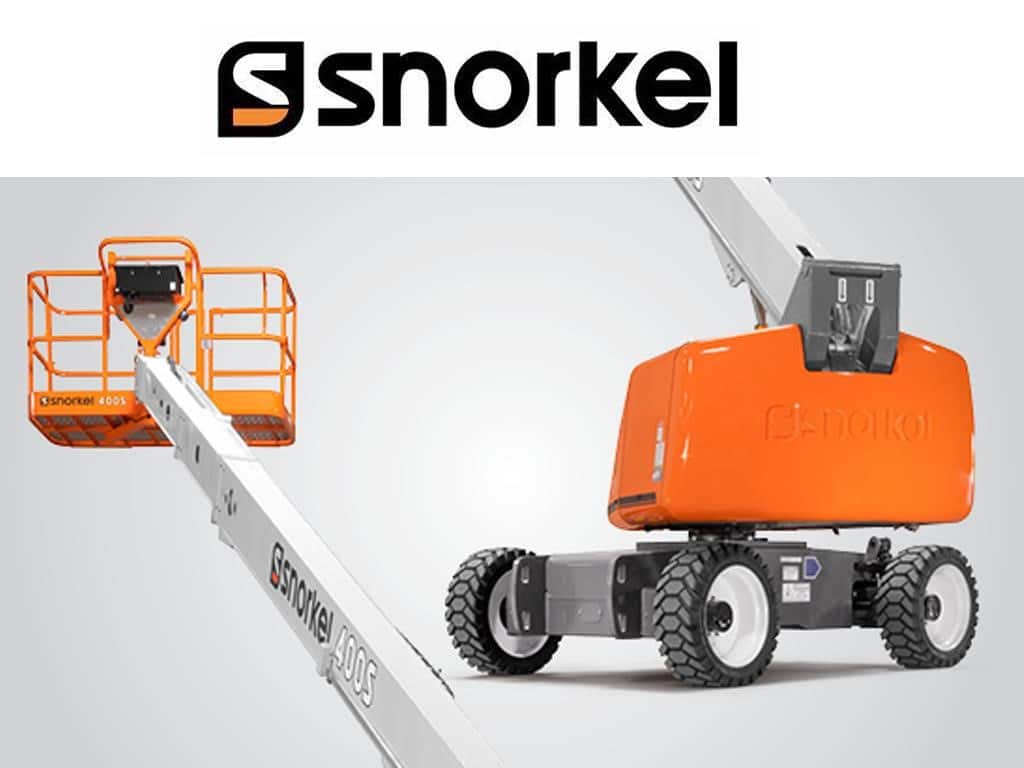

SNORKEL TELESCOPIC BOOM LIFTS — 400S
POWERED TO PERFORM
The Snorkel 400S is a mid-sized telescopic boom lift equipped for tough jobsites. Powered by 4-wheel drive and an oscillating axle as standard, the boom lift delivers excellent rough terrain performance. All-proportional controls make the 400S highly versatile on the job. Its durable design is built to last in construction and industrial applications.
FEATURES
• Snorkel Guard™ secondary guarding system
• Oscillating axle
• Hydraulic platform rotation
• Hydraulic oil cooler
• Four wheel drive
• All proportional controls
• Swing-out engine tray
• Hour meter & on-board diagnostics display
• Power line to platform
• Tilt alarm & cut-out
• DC emergency operation
• Tri-entry platform
• Flashing amber light
• Platform overload system
• 2 year parts & labor, 5 year structural warranty
OPTIONS
• Special paint colors
• AC generator 110V/2.5kW
• Non-marking tires
• Air-filled flotation tires
• Dual fuel
• Airline to platform
• Aircraft package
• Deluxe aircraft package
• Cold weather package
• Extreme cold weather package
• Extreme environment package
• Light package
• Tow kit
• Glazier package
• 7.5kW generator package
• Environmental hydraulic oil
• Tool Tray
• Pipe rack
• Snorkel OnSite™ telematics
ACCESSORY PACKAGES
• Aircraft Package
• Cold Weather Package
• Deluxe Aircraft Package
• Extreme Cold Weather Package
• Extreme Environment Package
• Generator Package
• Glazier Package
• Lights Package
• Pipe Rack
• Tow Kit
Specifications are subject to change without prior notice. Similar models may be shown in addition to the featured model. Equipment may be shown with options.
- Specifications - Transport Length: 24 ft 10 in
- Specifications - Platform rotation: 150°
- Specifications - Overall width: 7 ft 7 in
- Specifications - Transport Height: 9 ft 6 in
- Specifications - Max. wind speed: 28 mph
- Specifications - Gradeability: 50%
- Specifications - Platform size: 8 ft x 3 ft
- Specifications - Max. platform height: 40 ft 2 in
- Specifications - Ground clearance: 12.5 in
- Specifications - Outside turning radius: 16 ft 7 in
- Specifications - Tailswing: 35.5 in
- Specifications - Auxiliary power unit: 12V DC
- Specifications - Weight: 15,730 lbs
- Specifications - Max. drive speed (elevated): 0.75 mph
- Specifications - Jib length: n/a
- Specifications - Controls: All proportional controls
- Specifications - Drive system: 4 wheel drive
- Specifications - Tires: 355/55 D625 foam filled lug
- Specifications - Inside turning radius: 9 ft 10 in
- Specifications - Jib arc: n/a
- Specifications - Platform capacity - unrestricted: 600 lbs
- Specifications - Stowed height: 7 ft 10 in
- Specifications - Power source: Kubota 24.9hp (18.6kW) diesel Tier 4 Final
- Specifications - Max. horizontal reach: 34 ft 9 in
- Specifications - Transport Width: 6 ft 10 in
- Specifications - Superstructure rotation: 360° continuous
- Specifications - Platform capacity - restricted: 1,000 lbs
- Specifications - Max. working height: 46 ft 2 in
- Specifications - Max. drive speed (stowed): 4.0 mph
- Specifications - Max. drive height: 40 ft 2 in
- Specifications - Raise / lower time: 64 / 64 sec
