SNORKEL ARTICULATED BOOM LIFTS — AB85J
REACHING EVERY HEIGHT
Snorkel articulated diesel booms combine superb working envelopes with power and precision for full versatility at height. Articulated jibs deliver improved reach, and Snorkel Guard™ secondary guarding system is fitted as standard on all Snorkel boom lifts.

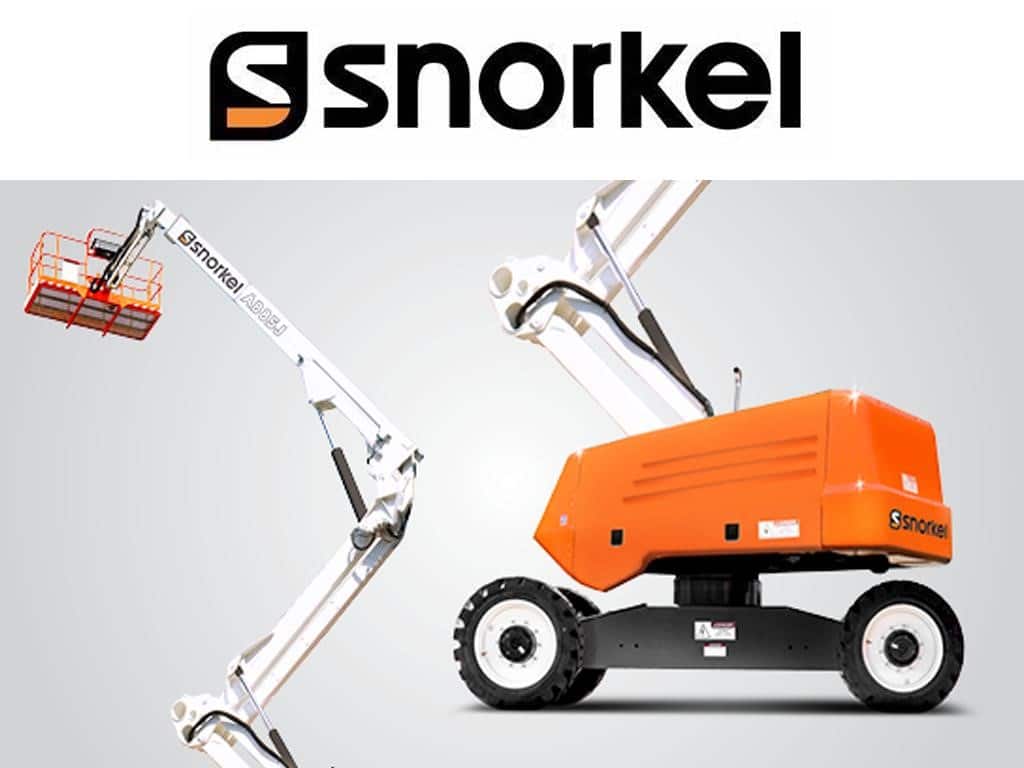

The Snorkel AB85J articulated boom lift is the largest model in the articulated boom family. Equipped with a jib boom for 140° side-to-side rotation, it provides the ultimate working envelope. Proportional controls combined with powerful 4-wheel drive delivers smooth performance on any surface.
FEATURES
• Snorkel Guard™ secondary guarding system
• Hydraulic platform rotation
• Four wheel drive, steer and crab steer
• Foam filled lug tires
• 360° continuous turntable rotation
• Proportional drive, lift & swing, extend & rotate
• Drive motion alarm
• Flashing amber light
• Horn
• Dual lanyard attachment points
• Power line to platform
• 5° tilt alarm
• 2 year parts & labor, 5 year structural warranty
OPTIONS
• Special paint colors
• Airline to platform
• Non-marking tires
• AC generator 110V/240V 2kW
• Aircraft package
• Deluxe aircraft package
• Cold weather package
• Extreme cold weather package
• Extreme environment package
• Light package
• Tow kit
• Glazier package
• Utility package
• 12k Generator package
• 12k Generator/Welder package
• Dual fuel
• Environmental hydraulic oil
• Tool tray
• CSA compliant
Specifications are subject to change without prior notice. Similar models may be shown in addition to the featured model. Equipment may be shown with options.
- Specifications - Max. drive height: 84 ft 6 in
- Specifications - Jib rotation: 140° side to side
- Specifications - Max. drive speed (stowed): 3.0 mph
- Specifications - Jib arc: 135° (+70°/-65°)
- Specifications - Controls: Proportional joystick
- Specifications - Power source: Kubota V2403 65hp diesel - Tier 4 Final
- Specifications - Raise / lower time: 240 / 240 sec
- Specifications - Tailswing: 35 in
- Specifications - Weight: 38,580 lbs
- Specifications - Outside turning radius: 15 ft 5 in
- Specifications - Clearance height at max. outreach: 27 ft 11 in
- Specifications - Max. drive speed (elevated): 0.6 mph
- Specifications - Max. working height: 90 ft 6 in
- Specifications - Jib length: 5 ft 6 in
- Specifications - Max. horizontal reach: 61 ft 11 in
- Specifications - Drive system: 4 wheel drive
- Specifications - Gradeability: 30%
- Specifications - Platform rotation: 150°
- drive: 4WD
- Specifications - Max. platform height: 84 ft 6 in
- Specifications - Tires: 15 x 625 foam filled lug
- Specifications - Ground clearance: 13 in
- Specifications - Inside turning radius: 7 ft 10 in
- Specifications - Platform size: 8 ft x 3 ft
- Specifications - Max. wind speed: 28 mph
- Specifications - Stowed height: 9 ft 10 in
- Specifications - Overall width: 8 ft 6 in
- Specifications - Overall length: 41 ft 2 in
- Specifications - Platform capacity (SWL): 500 lbs
- Specifications - Superstructure rotation: 360° continuous
