SNORKEL ELECTRIC BOOM LIFTS — A46JE
DELIVERING ACCURACY
Snorkel’s industry leading electric articulating and mast boom lifts combine superb maneuverability with clean, quiet operation. The battery-powered machines deliver working heights of up to 52 ft. (16m) with zero emissions.

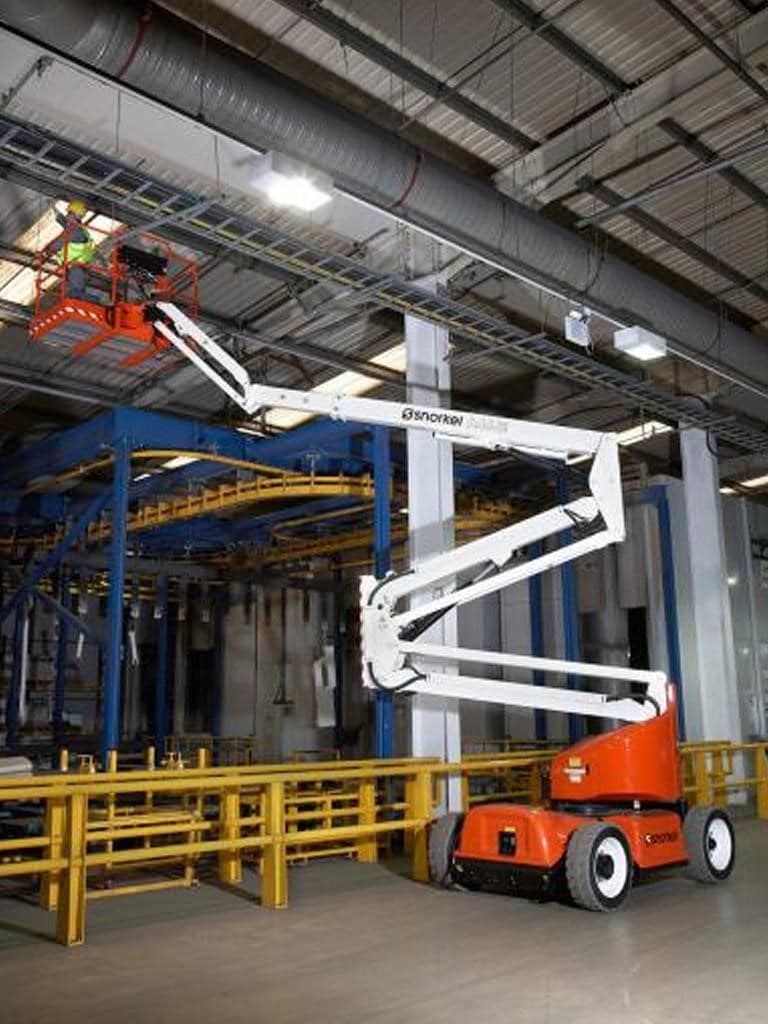

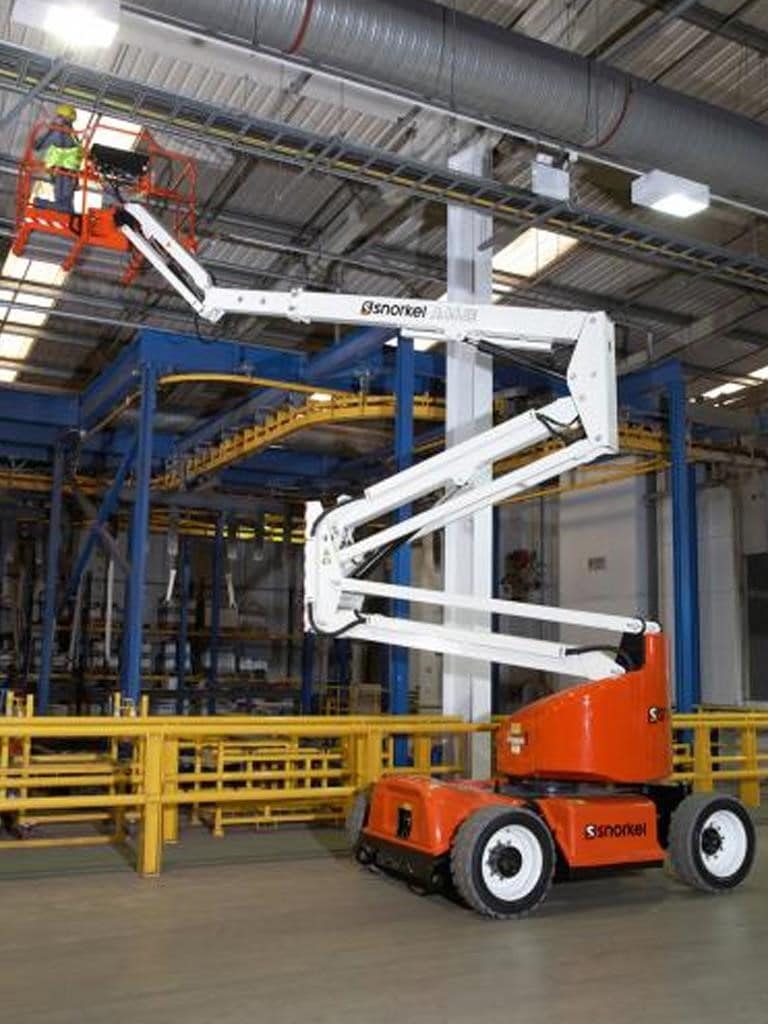

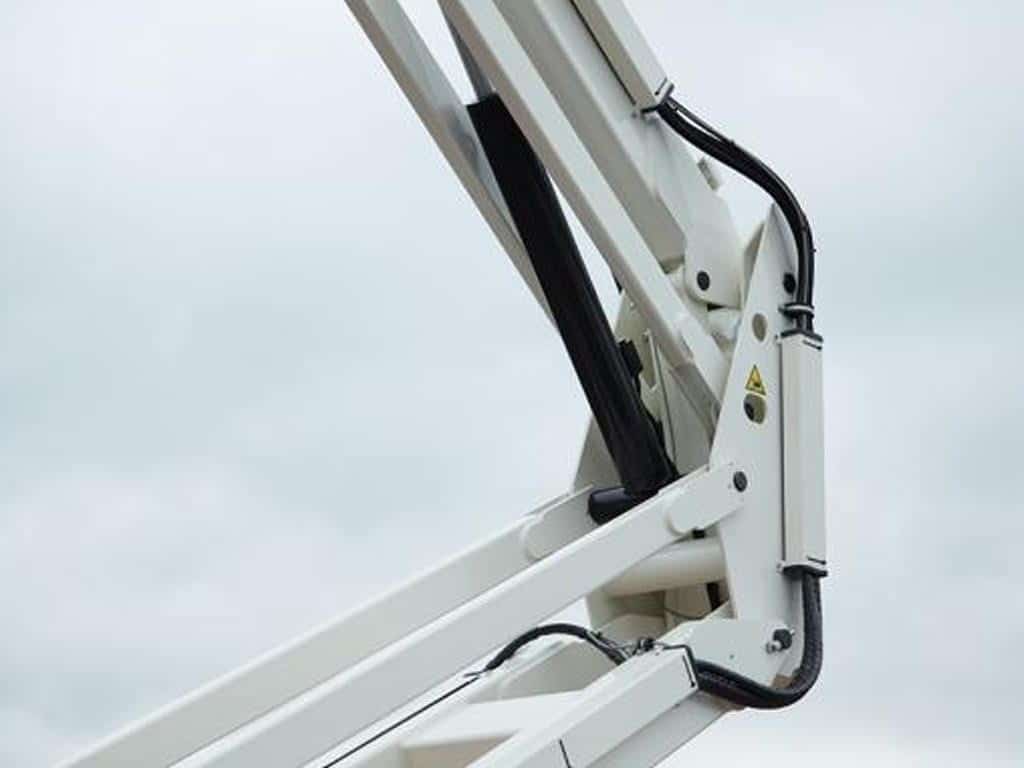

The Snorkel A46JE is the battery-electric version of the A46JRT articulating boom lift. This 2WD self-propelled boom features a spacious platform that can easily lift two people with tools. An articulating jib and powered 160° platform rotation add versatility to the A46JE’s quiet, emission-free operation.
FEATURES
• Snorkel Guard™ secondary guarding system

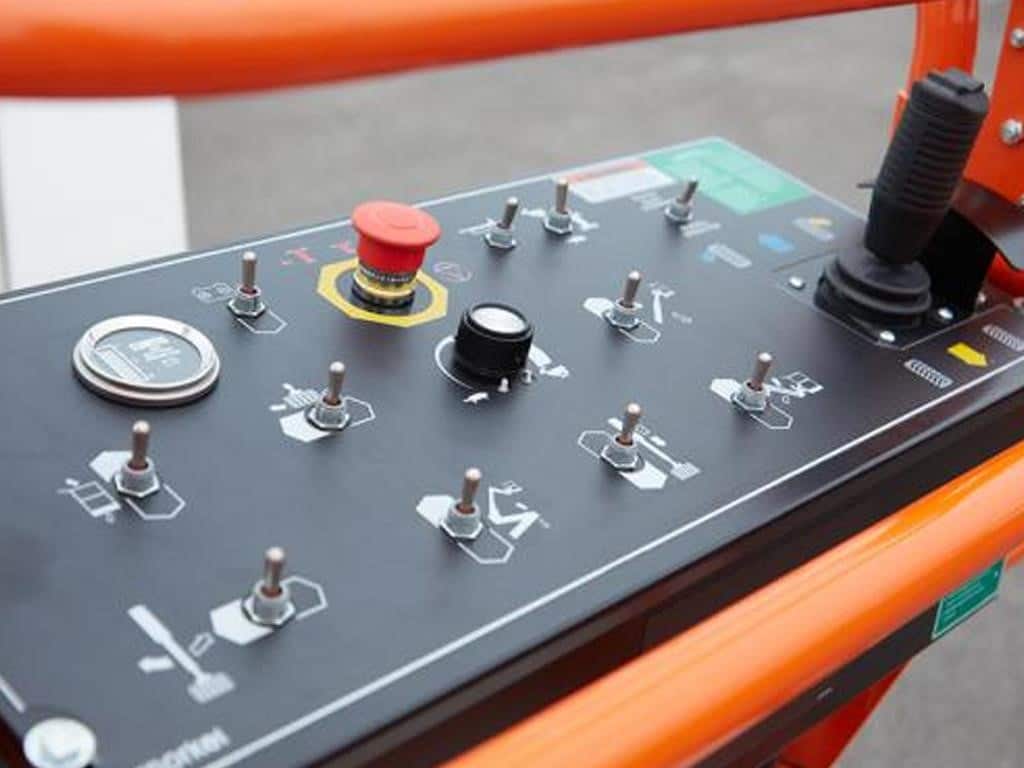

• Multi-function proportional controls
• Zero tailswing
• Tri-entry platform
• Non-marking tires
• Power line to platform

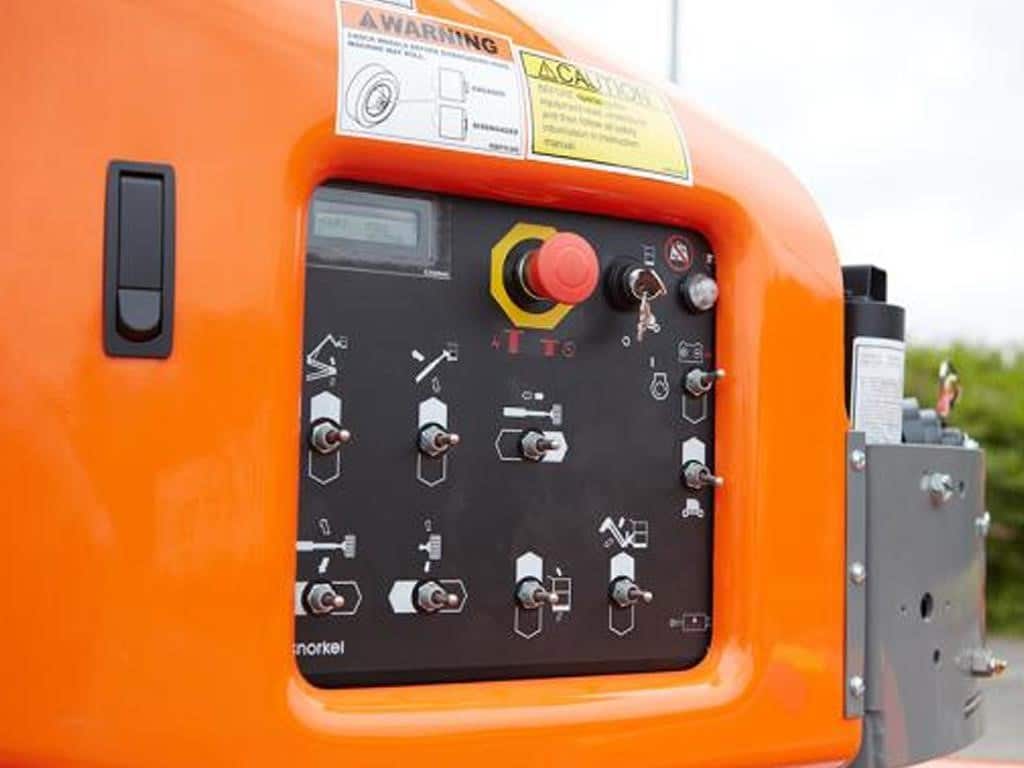

• Hour meter & on-board diagnostics display
• Tilt alarm
• Horn
• Battery charge indicator
• Drive motion alarm
• Flashing amber light
• Platform overload system
• 2 year parts & labor, 5 year structural warranty
OPTIONS
• Special paint colors
• Airline to platform

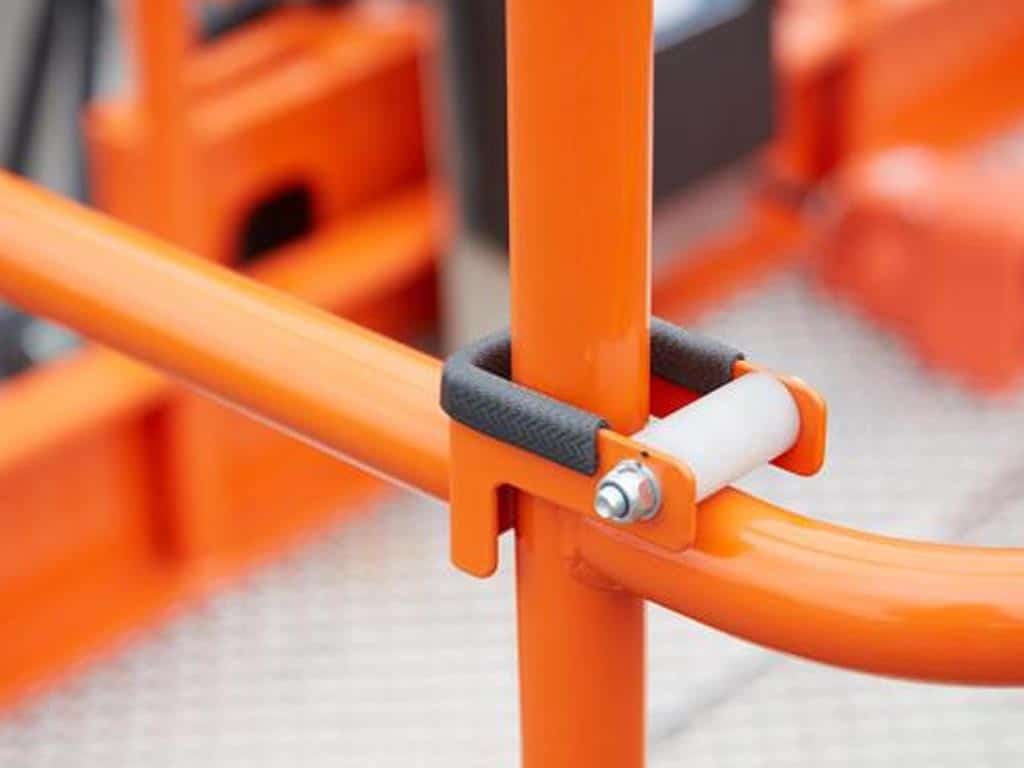

• 5 ́ aluminum platform swing gate
• Aircraft package
• Deluxe aircraft package
• Cold weather package
• Extreme environmental package
• Light package
• Environmental hydraulic oil
• Pipe rack
• Snorkel OnSite™ telematics
ACCESSORY PACKAGES
• Aircraft Package
• Deluxe Aircraft Package
• Extreme Environment Package
• Lights Package
Specifications are subject to change without prior notice. Similar models may be shown in addition to the featured model. Equipment may be shown with options.
- Specifications - Jib arc: 140°
- Specifications - Drive system: 2 wheel drive
- Specifications - Overall length: 18 ft 4 in
- Specifications - Stowed height: 6 ft 7 in
- Specifications - Tires: Non-marking foam filled IN240/55D 17.5
- Specifications - Max. horizontal reach: 24 ft 11 in
- Specifications - Platform rotation: 160°
- Specifications - Max. drive speed (elevated): 0.5 mph
- Specifications - Clearance height at max. outreach: 24 ft 6 in
- Specifications - Ground clearance: 6 in
- Specifications - Outside turning radius: 9 ft 10 in
- Specifications - Chassis width: 5 ft 8 in
- Specifications - Max. drive height: 46 ft 3 in
- Specifications - Max. working height: 52 ft 3 in
- Specifications - Gradeability: 30%
- Specifications - Platform size: 39 in x 72 in
- Specifications - Tailswing: 0 in
- Specifications - Platform capacity (SWL): 500 lbs
- drive: 2WD
- Specifications - Inside turning radius: 2 ft
- Specifications - Weight: 14,690 lbs
- Specifications - Max. drive speed (stowed): 4.25 mph
- Specifications - Max. platform height: 46 ft 3 in
- Specifications - Superstructure rotation: 360° non-continuous
- Specifications - Raise / lower time: 99 / 92 sec
- Specifications - Max. wind speed: 28 mph
- Specifications - Controls: Proportional
- Specifications - Jib length: 5 ft

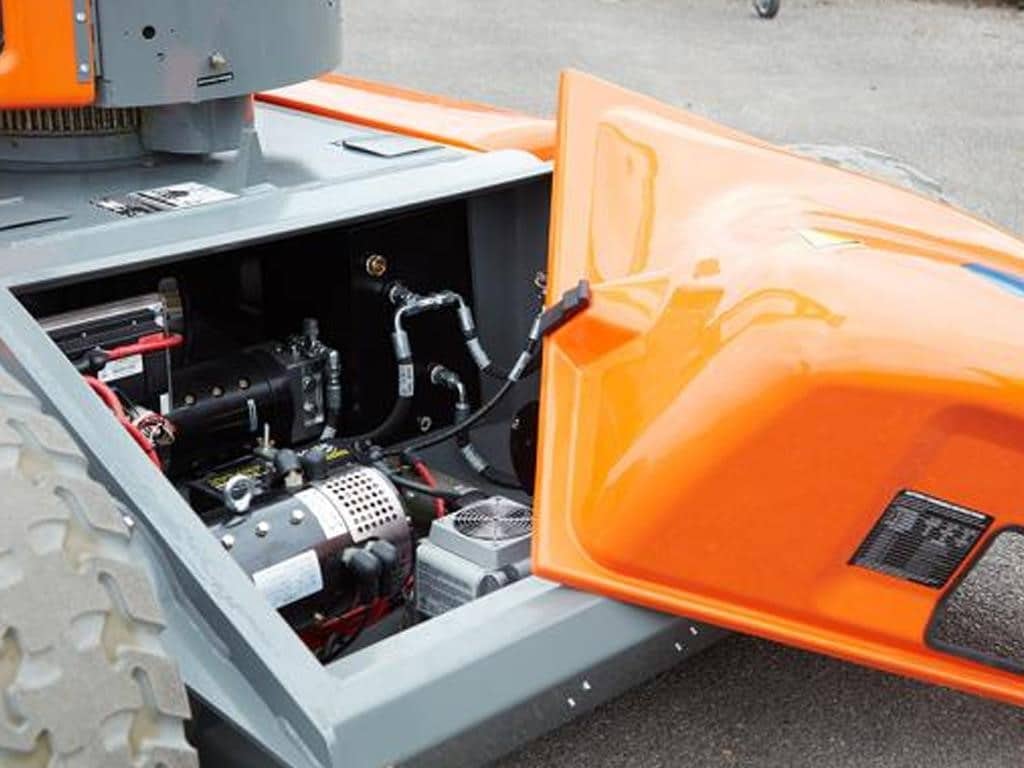

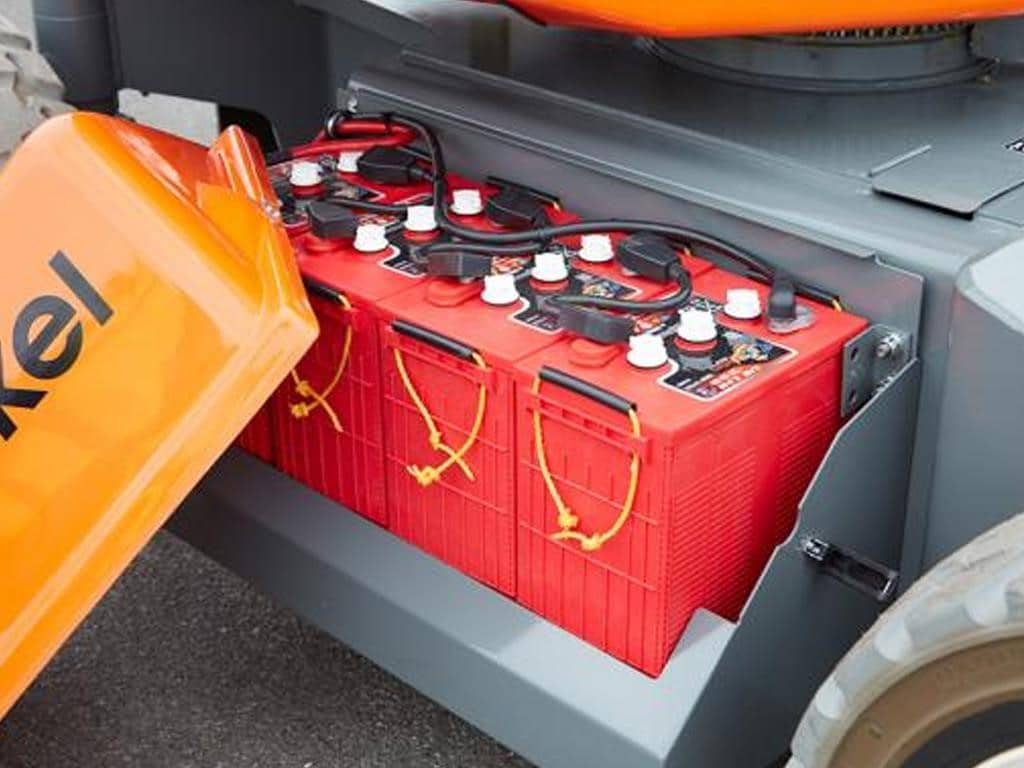

- Specifications - Power source: 8 x 6V 360Ah batteries
