SNORKEL SL30RT Snorkel Scissor Lifts
SNORKEL SL30RT−SPEED LEVEL

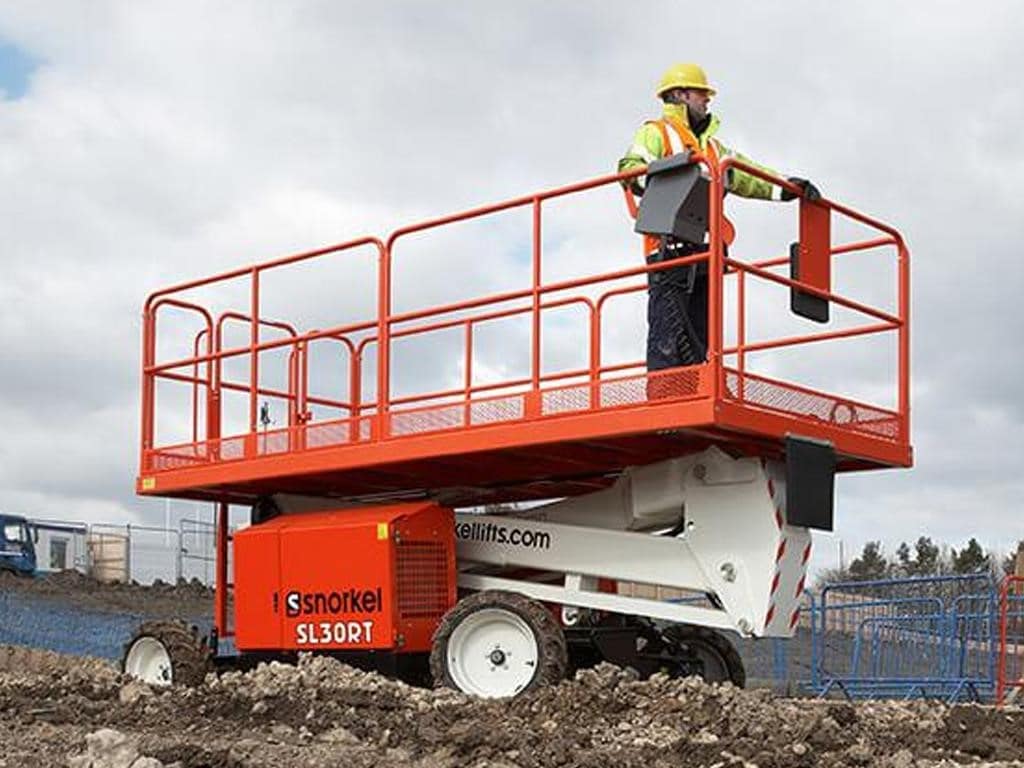

The Snorkel SL30RT Speed Level sigma boom lift makes the grade. Automatic self-leveling without outriggers offers a stable platform that can level up to 13° from side-to-side and up to 9° from front-to-back. Drivable at full height on powerful 4-wheel drive, the SL30RT tackles all terrains with ease, even on compound slopes.
SPEED LEVEL
Finding balance on uneven terrain is a job for the Snorkel Speed Level. Tougher than the roughest jobsite, these agile lifts easily climb gradients up to 50%. The first design of its kind, automatic self-leveling capabilities let operators stand up straight on compound slopes. Its platform can level up to 13° from side-to-side and up to 9° from front-to-back.
The RTE series offers fully electric sigma lifts powered entirely by lithium-ion batteries for long-lasting performance. All Snorkel Speed Levels share a common chassis. The SL26RT and SL26RTE have a maximum working height of 31 ft. 6 in. (10.0m) with 1,500 lbs. (680kg) platform capacity and a 3 ft. (0.91m) roll-out deck extension. The SL30RT and SL30RTE have a maximum working height of 35 ft. 4 in. (11.0m) with a load capacity up to 1,300 lbs. (590kg).
STANDARD FEATURES
• Automatic powered platform leveling
• Powerful 4 wheel drive
• Oscillating front axle
• High grip, open tread deck
• Descent alarm
• High grip, all-terrain tires
• Dual multi-disc brakes
• Proportional controls
• Power line to platform
• Fold-down guardrails
• All motion alarm
• Hour meter & on-board diagnostics display
• Horn
• 2 year parts & labor, 5 year structural warranty
OPTIONS
• Special paint colors
• Diesel exhaust scrubber
• Flashing amber light
• Tunnel package
• Environmental hydraulic oil
• Hydraulic generator 110/240V 2kW
• Platform overload system
• Non-marking tires
• Extreme environment package
Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
- Performance - Platform capacity (SWL): 1,300 lbs
- Performance - Drive system : 4 wheel drive with hydraulic motors & flow dividers
- Dimensions - Max. working height: 35 ft 4 in
- Dimensions - Min. height (guardrails folded): 65 in
- Performance - Gradeability : 50%
- Performance - Controls : proportional joystick
- Performance - Max. drive speed (stowed) : 4.0 mph
- Dimensions - Overall length: 14 ft 1 in
- Performance - Max. drive height : 29 ft 4 in
- Dimensions - Max. platform height: 29 ft 4 in
- Performance - Inside turning radius : 12 ft 10 in
- Dimensions - Extension deck length: n/a
- Performance - Tires : 26 x 12.00 - 12 foam filled
- Dimensions - Platform size (extended) : n/a
- Dimensions - Chassis ground clearance: 12 in
- Performance - Max. levelling, front to rear: 9°
- Dimensions - Stowed height: 8 ft 6 in
- Weight - Weight: 7,495 lbs
- Dimensions - Platform size (stowed): 5 ft 8 in x 13 ft 11 in
- Performance - Outside turning radius : 18 ft 6 in
- Power - Power source : Kubota D-902 water-cooled diesel engine - Tier 4 Final
- Performance - Raise/lower time : 24/36 seconds
- Dimensions - Axle ground clearance: 7.6 in
- Dimensions - Overall width: 7 ft
- Performance - Max. wind speed: 28 mph
- Performance - Max. levelling, side to side : 13°
- Performance - Max. drive speed (elevated) : 0.5 mph
