S3019E—SNORKEL ELECTRIC SCISSOR LIFT

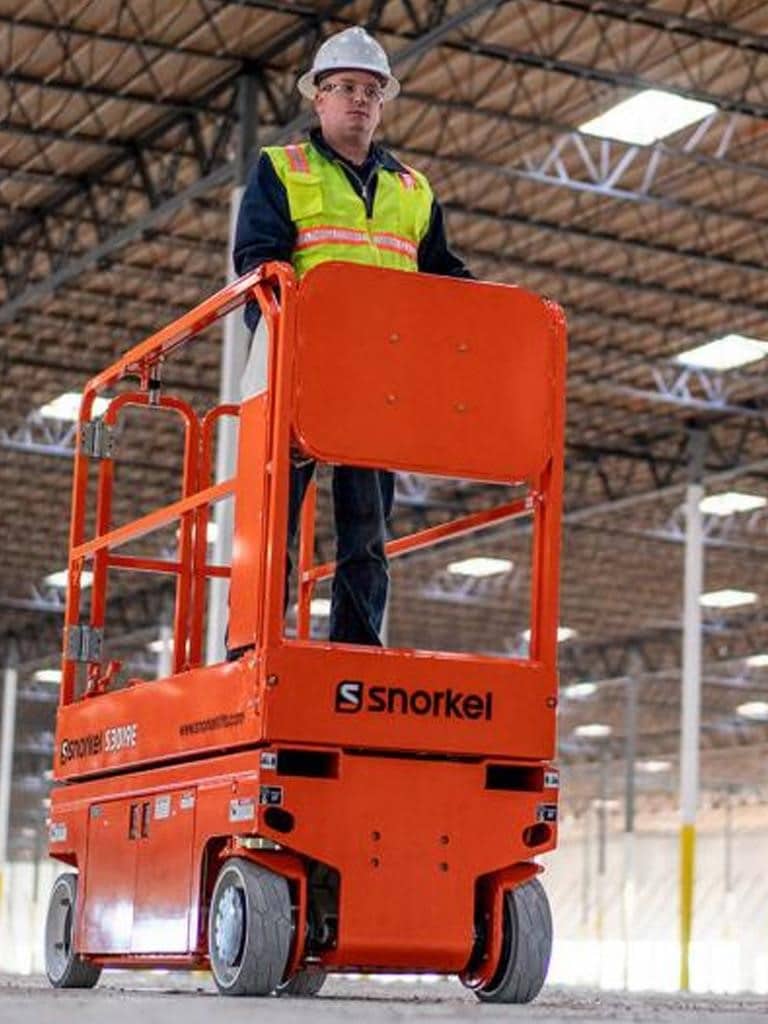

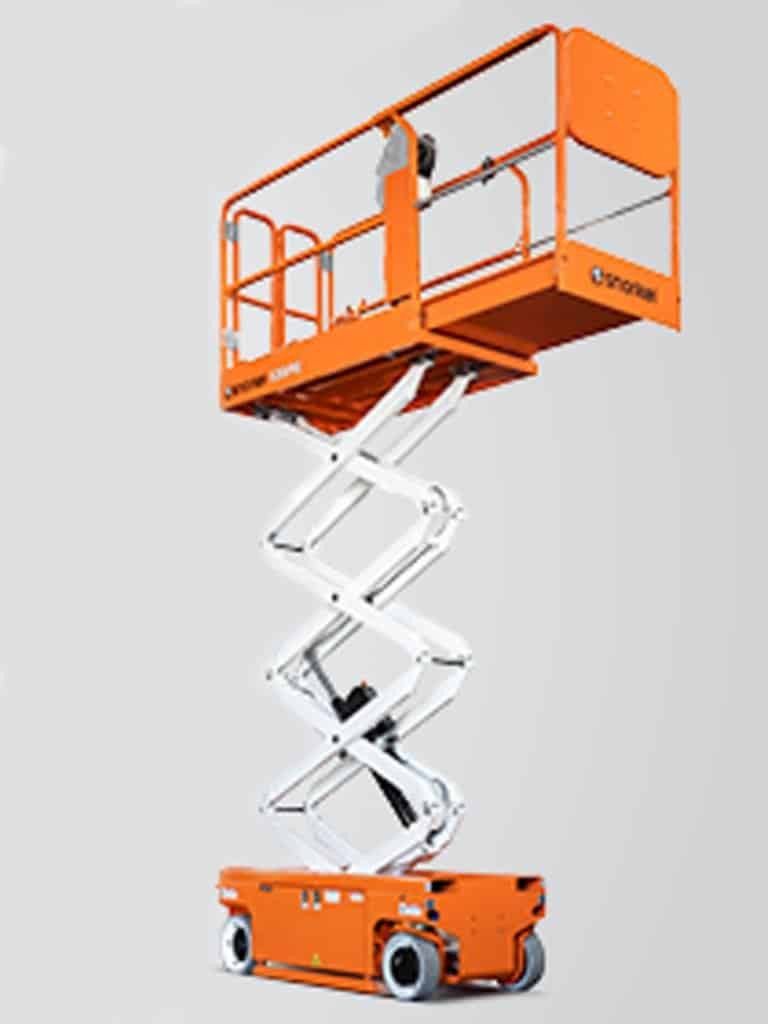

The Snorkel S3019E self-propelled electric scissor lift stacks the deck. This all-electric lift features a sunken scissor stack that stows inside the chassis, offering a low step-in height. Compact and nimble, its slim design easily fits through doorways and on passenger elevators.
FEATURES
• All electric drive
• Electric steer
• No hydraulic hoses
• Roll-out deck extension with dual locks
• Non-marking tires
• Swing-out service trays
• Saloon-door style entry gates
• Descent alarm
• All motion alarm
• Key switch
• 2 persons indoors
• 1 person outdoors
• Proportional controls, including descent
• Power line to platform
• Hour meter & on-board diagnostics display
• Integrated battery charger
• Battery condition indicator
• Crane & forklift points
• Dual lanyard attachment points
• 2 year parts & labor, 5 year structural warranty
OPTIONS
• Special paint colors
• Flashing Amber Light
• Airline to platform
• Environmental hydraulic oil
Specifications are subject to change without prior notice. Similar models may be shown in addition to the featured model. Equipment may be shown with options.
- Specifications - Platform size (extended): 24 in x 100.5 in
- Specifications - Outside turning radius: 69.5 in
- Specifications - Controls: Proportional
- Specifications - Overall length: 75 in
- Specifications - Max. drive speed (stowed): 1.5 mph
- Specifications - Max. working height: 25 ft
- Specifications - Ground clearance (stowed): 3 in
- Specifications - Raise / lower time: 30 / 44 sec
- Specifications - Max. wind speed: 28 mph
- Specifications - Tires: 12.75 in x 4 in non-marking solid rubber
- Specifications - Max. drive height: 19 ft
- Specifications - Max. platform height: 19 ft
- Specifications - Stowed height: 69.1 in
- Specifications - Power source: 24V DC battery electric
- Specifications - Max. drive speed (elevated): 0.5 mph
- Specifications - Drive system: 2 wheel drive
- Specifications - Charger: 90 - 240V, 25 amp
- Specifications - Overall width: 30.5 in
- Specifications - Platform size (stowed): 24 in x 64.5 in
- Specifications - Platform capacity (SWL): 550 lbs
- Specifications - Weight: 3,500 lbs
- Specifications - Deck extension length: 36 in
- Specifications - Ground clearance (elevated): 0.6 in
- Specifications - Gradeability: 25%
- Specifications - Inside turning radius: 0 in
