SNORKEL S3010E Snorkel Scissor Lifts
SNORKEL S3010E Snorkel Scissor Lifts

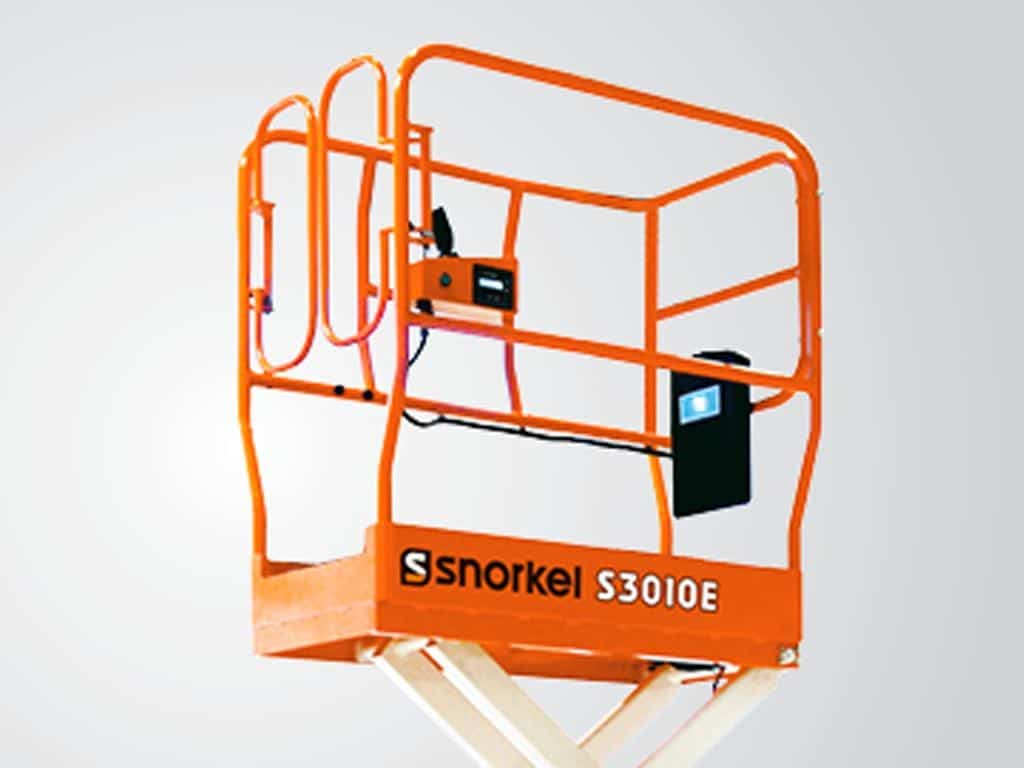

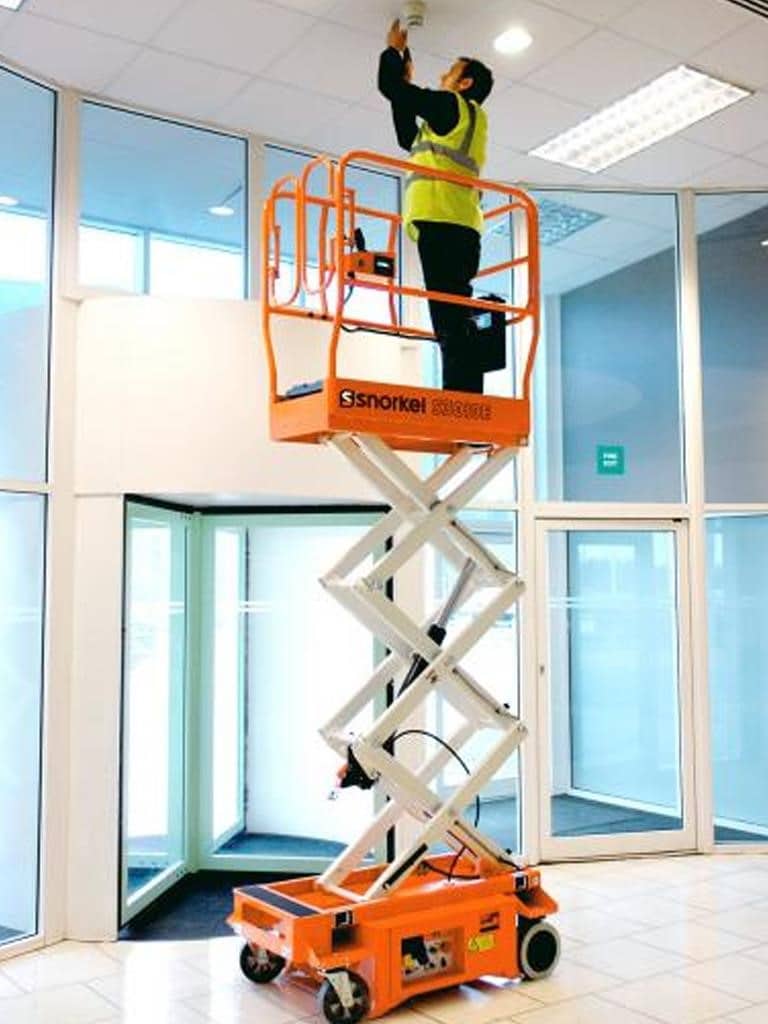

S3010E—SNORKEL ELECTRIC SCISSOR LIFT
The Snorkel S3010E is a self-propelled electric scissor lift designed small yet mighty. Its compact dimensions and zero inside turning radius are ideal for working in tight spaces, and ‘point and go’ joystick controls make it super-easy to operate. The S3010E can be driven at full height and carried in passenger elevators for complete versatility.
FEATURES
• Highly maneuverable skid steer
• Zero inside turning radius
• Saloon-door style entry gates
• 1 person + equipment capacity indoors
• Non-marking tires
• Proportional point & go joystick controls
• Integrated battery charger
• Battery condition indicator
• Crane points & through-the-chassis fork pockets
• Selectable motion alarm
• Tilt & descent alarm
• Hour meter
• Horn
• 2 year parts & labor, 5 year structural warranty
OPTIONS
• Special paint colors
• Environmental hydraulic oil
Specifications are subject to change without prior notice. Similar models may be shown in addition to the featured model. Equipment may be shown with options.
- Specifications - Inside turning radius: 0 in
- Specifications - Power source: 2 x 12V 105Ah
- Specifications - Overall width: 30.3 in
- Specifications - Drive system: DC direct drive
- Specifications - Max. wind speed: 0 mph
- Specifications - Max. drive speed (stowed): 2.2 mph
- Specifications - Ground clearance: 2.3 in
- Specifications - Parking brake: 2 wheel automatic
- Specifications - Stowed height: 5 ft 11 in
- Specifications - Overall length: 49.6 in
- Specifications - Max. drive height: 9 ft 11 in
- Specifications - Max. operating slope: 2°
- Specifications - Max. working height: 15 ft 11 in
- Specifications - Tires: 9 in non-marking rubber
- Specifications - Gradeability: 25%
- Specifications - Raise / lower time: 18 / 25 sec
- Specifications - Platform size: 43 in x 20 in
- Specifications - Outside turning radius: 4 ft 9 in
- Specifications - Charger: 100-240V 50/60Hz Auto, 30 amp
- Specifications - Max. drive speed (elevated): 0.3 mph
- Specifications - Platform capacity (SWL): 500 lbs
- Specifications - Controls: 2-axis proportional joystick
- Specifications - Weight: 1,091 lbs
- Specifications - Max. platform height: 9 ft 11 in
