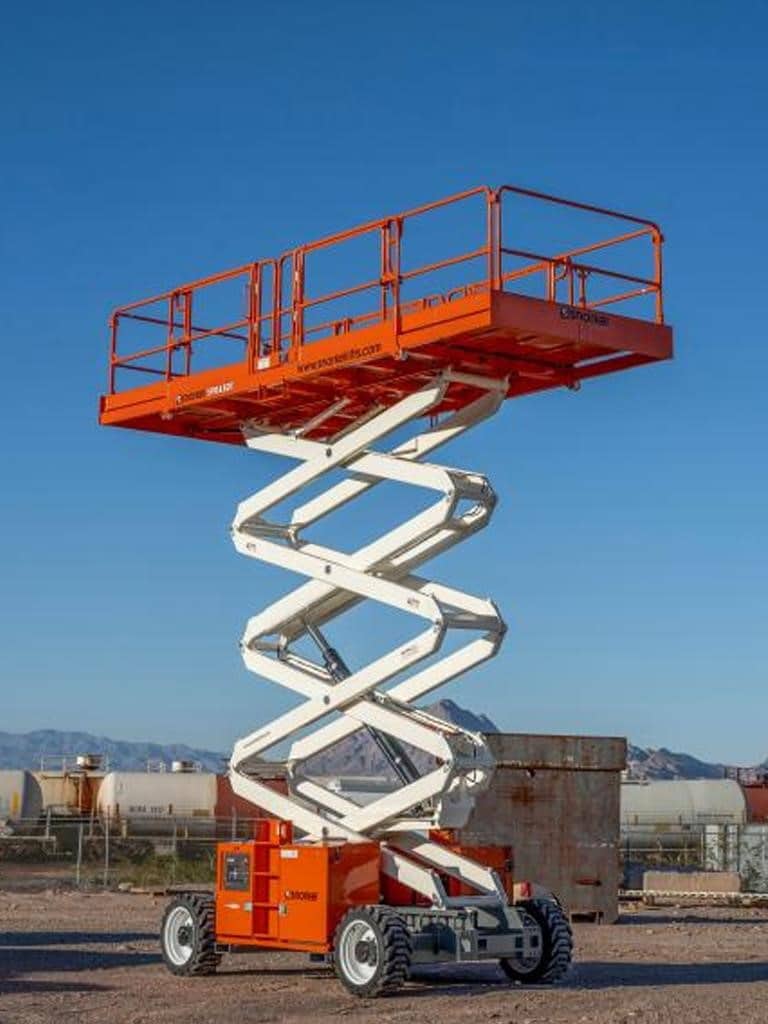

S9043RT — SNORKEL ROUGH TERRAIN SCISSOR LIFT

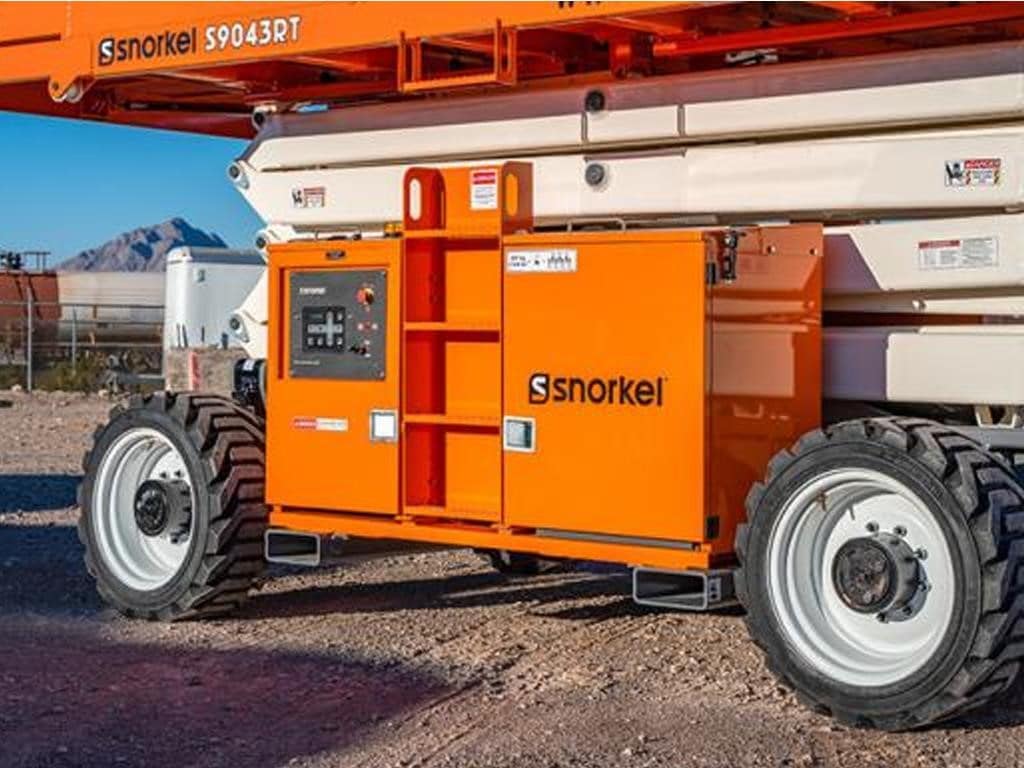

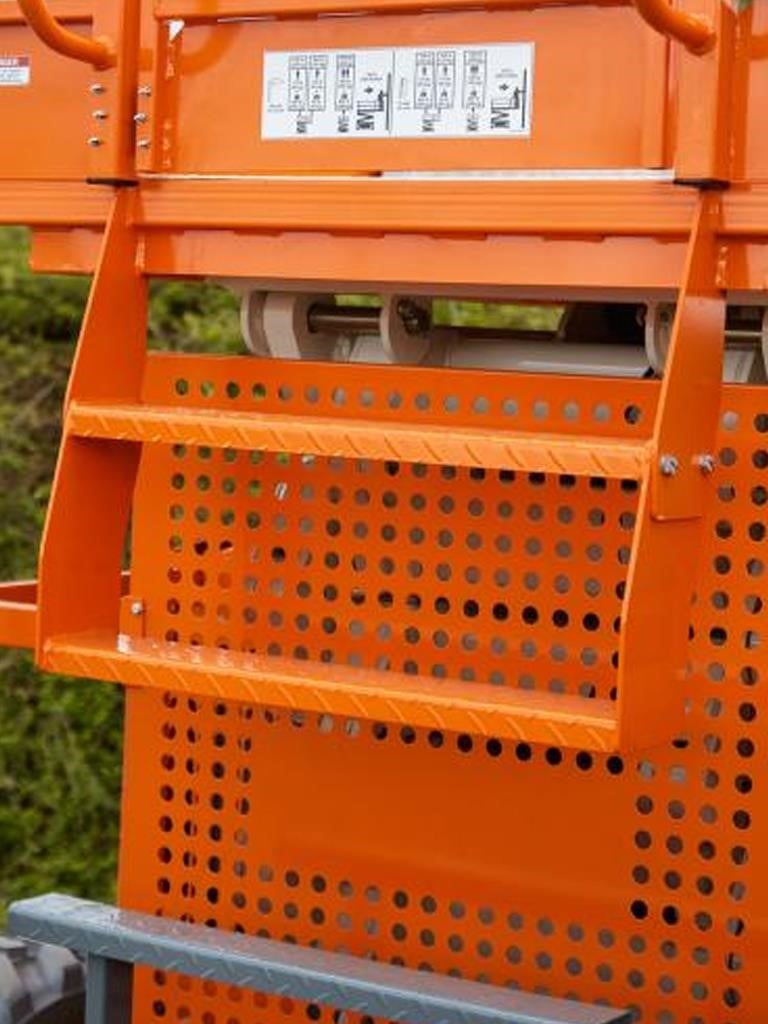

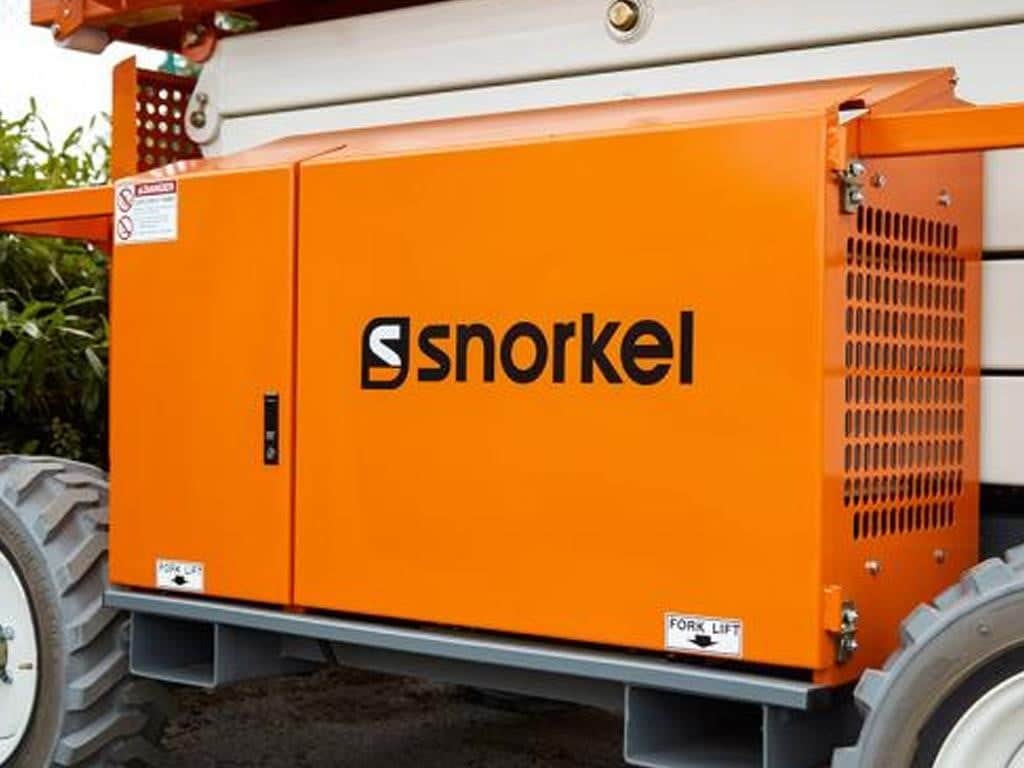

The new Snorkel S9043RT high capacity rough terrain scissor lift delivers high performance. Equipped with a spacious roll-out deck, this scissor lift offers excellent lift capacity. Superb terrain capabilities can easily handle tough jobsite conditions on powerful 4-wheel drive. The S9043RT is packed with operator benefits such as saloon-entry gates and swing-out engine trays.
FEATURES
• 4 wheel drive

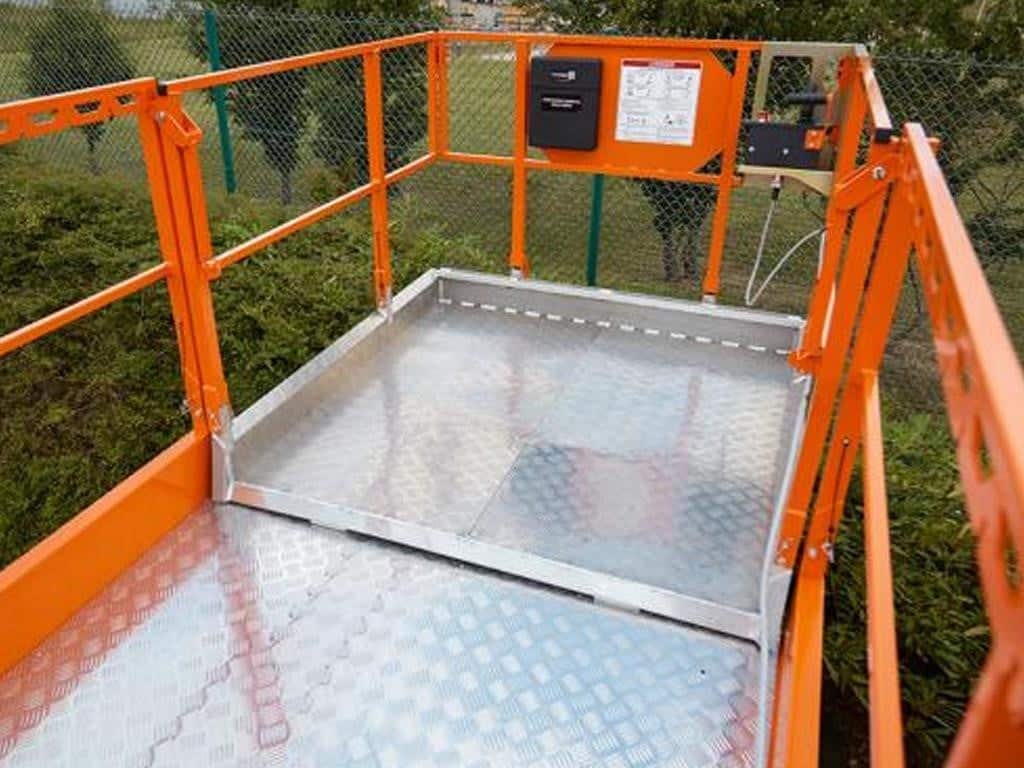

• Single powered deck extension

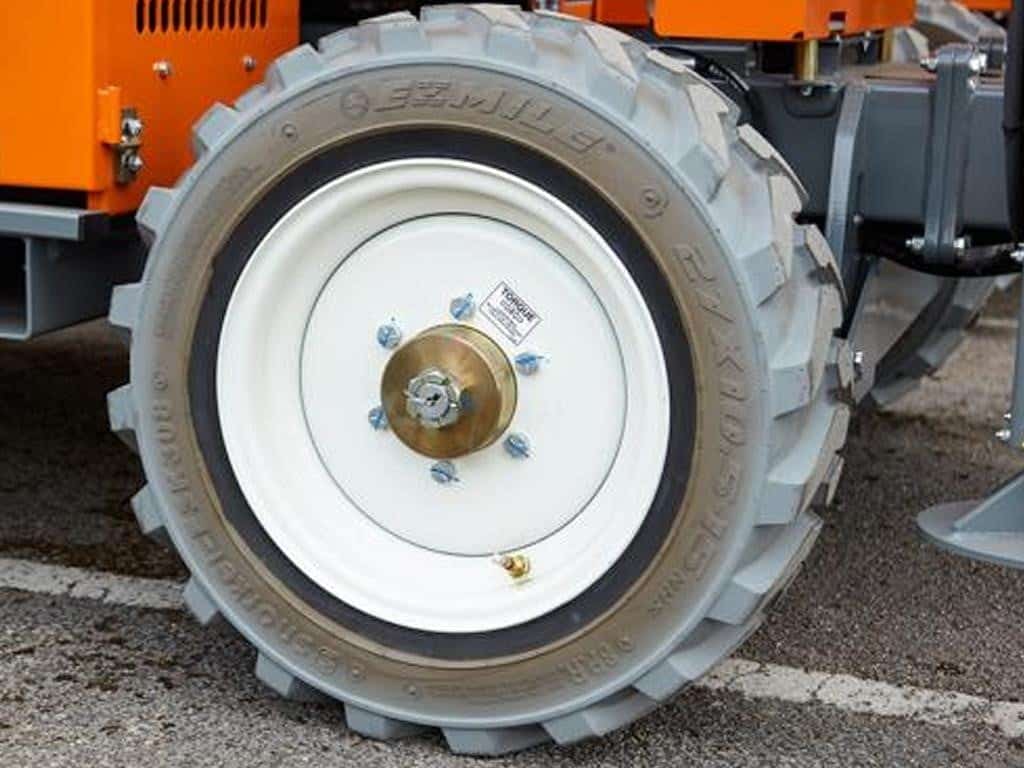

• Foam filled tires

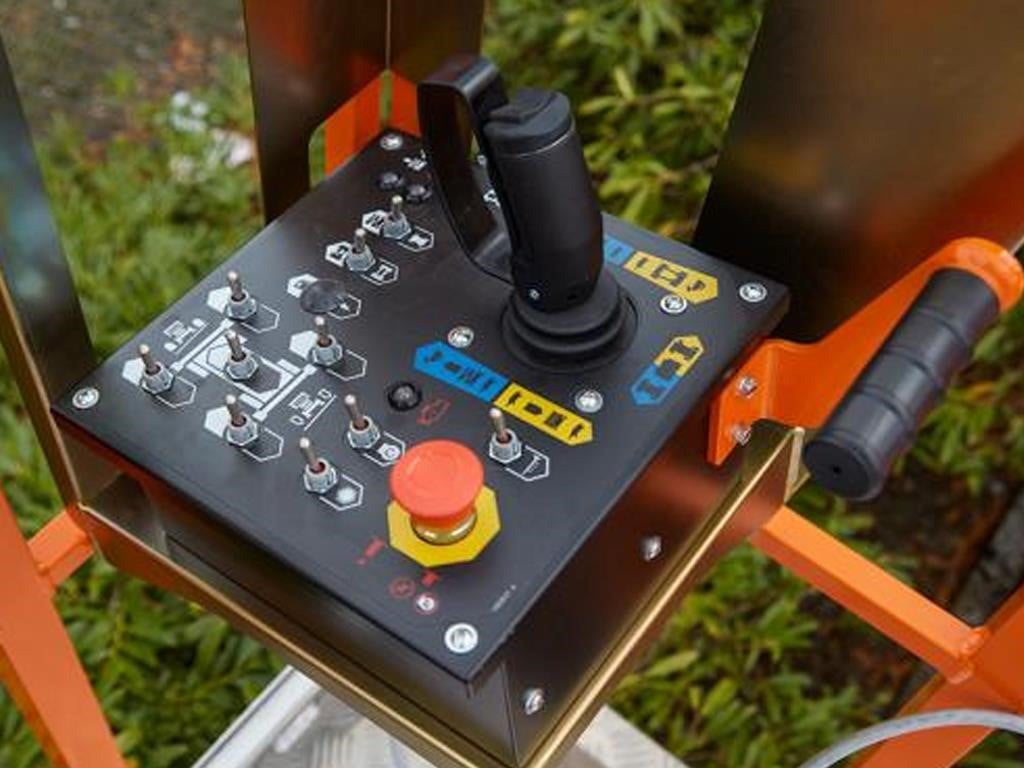

• Proportional controls
• Power line to platform
• Platform overload system
• Drive motion alarm
• Descent alarm
• Fold-down guardrails
• Flashing amber light (x2)
• Locking, oscillating axle

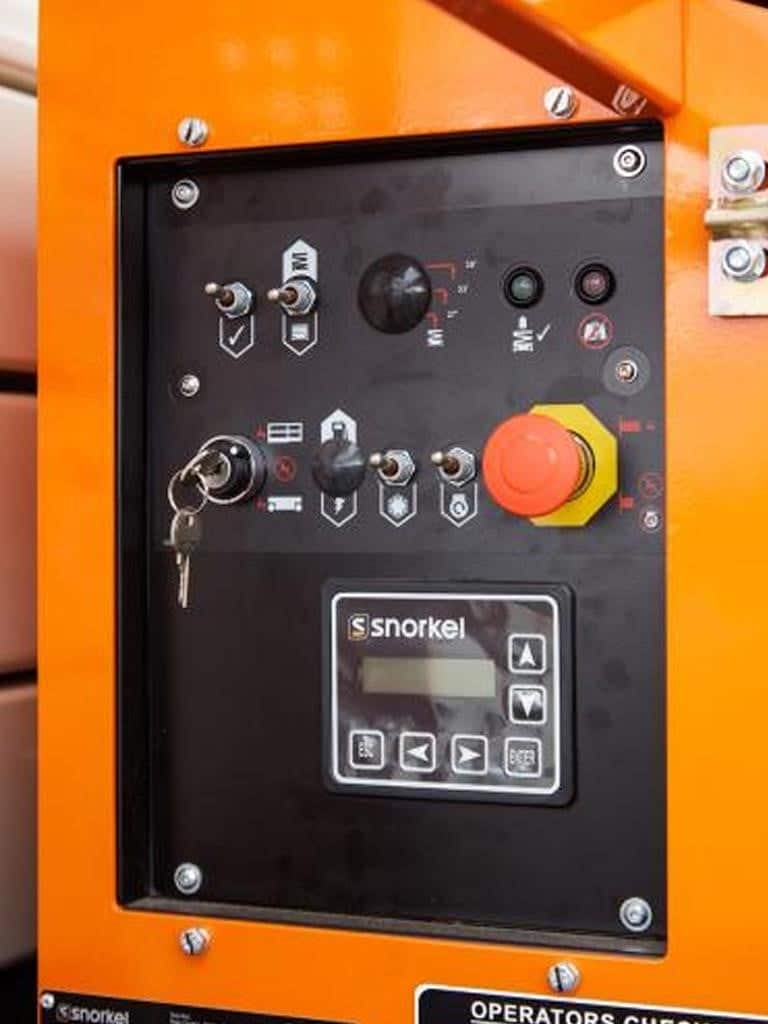

• Hour meter & on-board diagnostics display
• Manual lowering valve
• Flashing amber light (x2)
• Dual lanyard attachment points
• 2 years parts & labor, 5 year structural warranty
OPTIONS
• Special paint colors
• Nylon spreader pads (set of 4)
• Environmental hydraulic oil
• Dual fuel
• Cold weather package (block heater + battery warm up)
• Dual powered extension decks
• Dual manual extension decks
• Hydraulic generator 110V 2kW
• 12kW generator package
• Non-marking foam filled tires

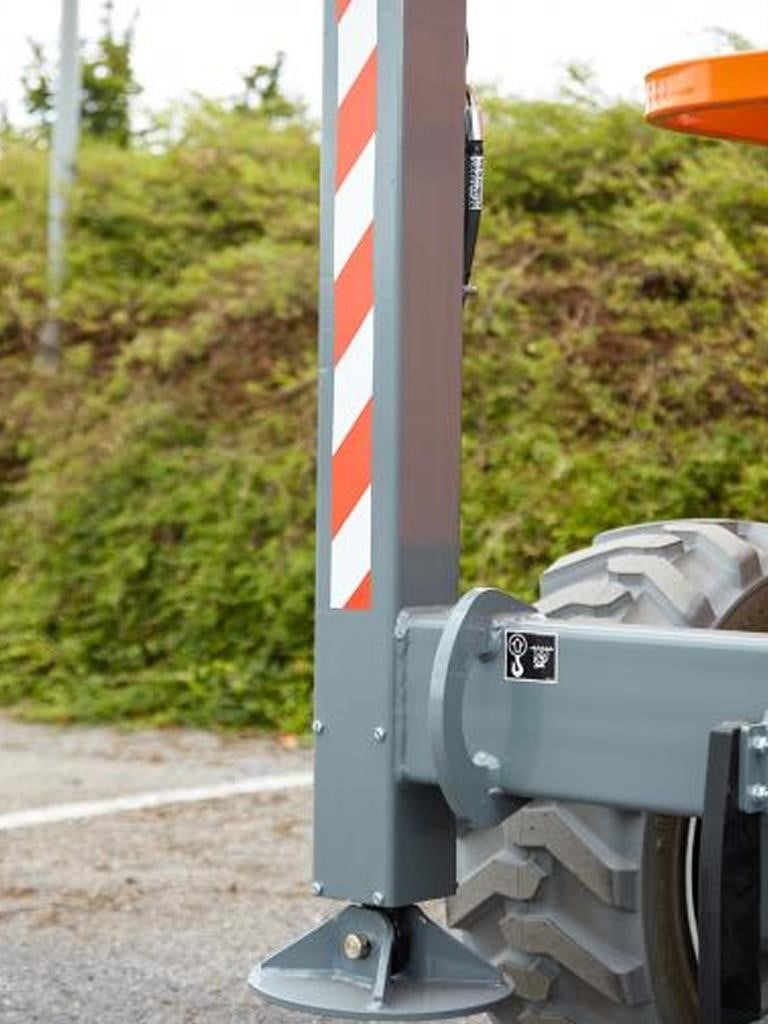

• 4 hydraulic stabilizers with automatic levelling
• Snorkel OnSite™ telematics
Specifications are subject to change without prior notice. Similar models may be shown in addition to the featured model. Equipment may be shown with options.
- Specifications - Drive system: 4 wheel drive
- Specifications - Weight (without outriggers | with outriggers): 16,520 lbs | 17,946 lbs
- Specifications - Stowed height: 9 ft 10 in
- Specifications - Inside turning radius: 6 ft 8 in
- Specifications - Platform capacity (SWL): 1,500 lbs

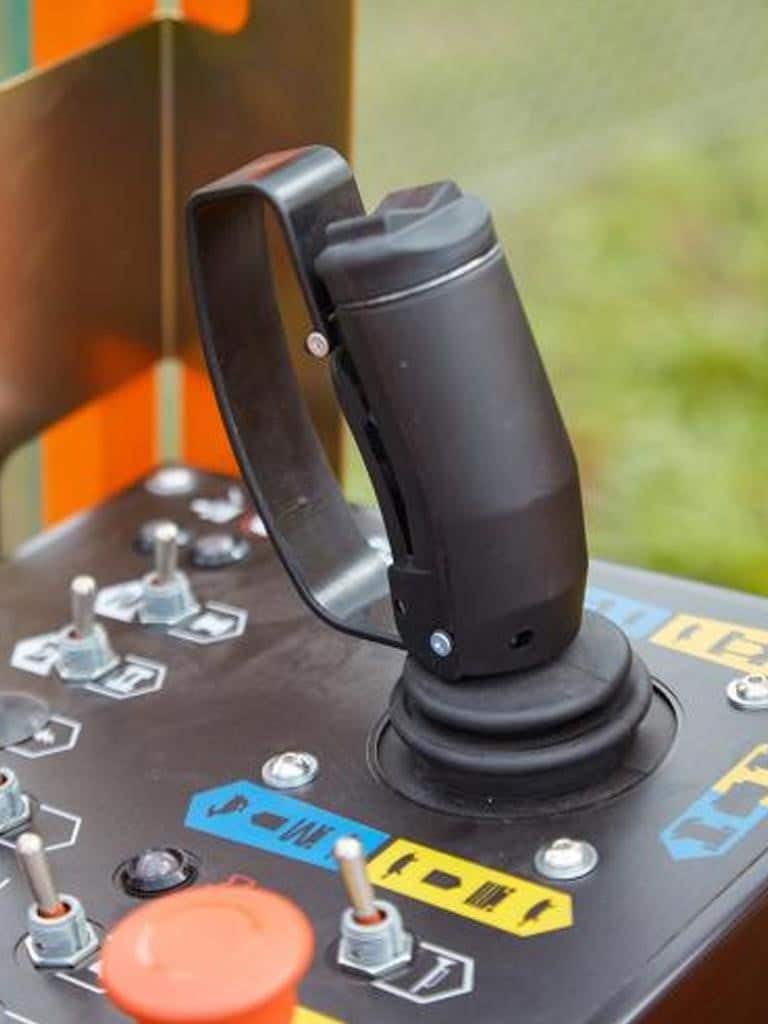

- Specifications - Controls: Proportional joystick
- Specifications - Ground clearance: 11 in
- Specifications - Platform size (stowed): 12 ft 11 in x 7 ft 6 in
- Specifications - Overall length:
- Specifications - Raise / lower time: 50 / 35 seconds
- Specifications - Max. platform height: 43 ft
- Specifications - Overall width: 7 ft 6 in
- Specifications - Max. stabilizer leveling (side to side): 12°
- Specifications - Max. drive speed (stowed): 4.2 mph
- Specifications - Max. drive speed (elevated): 0.6 mph
- Specifications - Min. height (guardrails folded): 7 ft 2 in
- Specifications - Power source: Kubota diesel
- Specifications - Deck extension length: 4 ft 6 in
- Specifications - Max. stabilizer leveling (front to rear): 7°
- Specifications - Max. working height: 49 ft
- Specifications - Tires: 12 x 33 foam filled
- Specifications - Gradeability: 50%
- Specifications - Outside turning radius: 17 ft 4 in
- Specifications - Max. drive height: 43 ft
- Specifications - Max. wind speed: 28 mph
