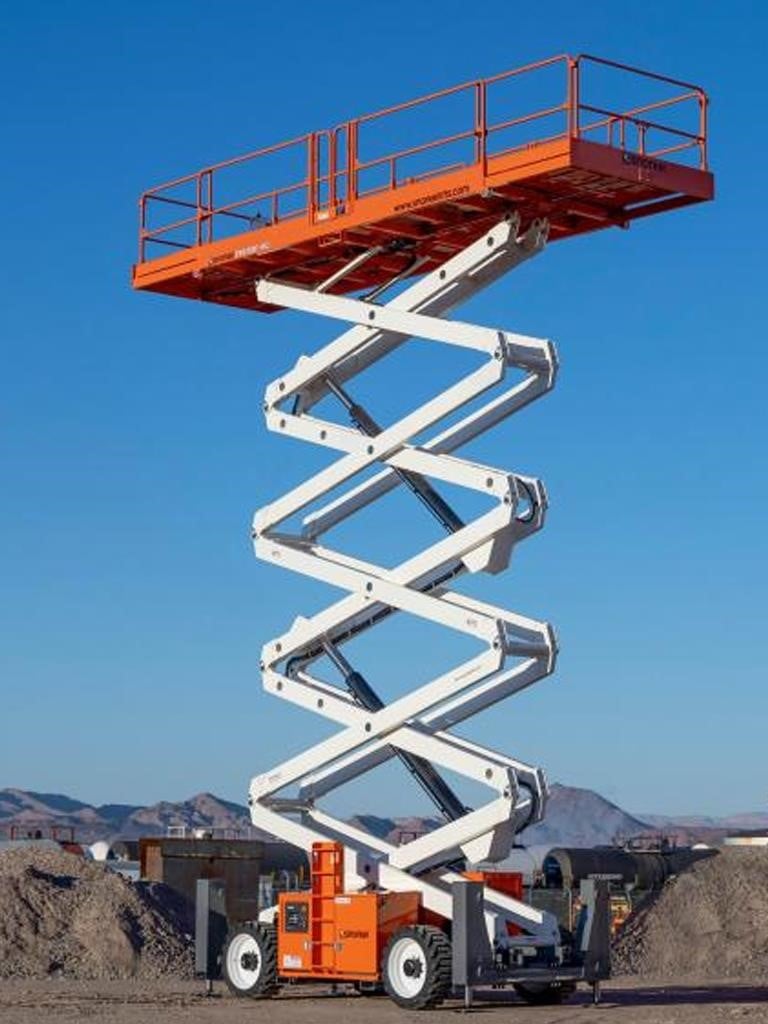

S9043RT-HC — SNORKEL ROUGH TERRAIN SCISSOR LIFT
The Snorkel S9043RT-HC ultra-capacity rough terrain scissor lift features high lifting capacity. Designed to carry the load, this scissor lift is equipped with a pallet gate to conveniently load materials onto a large twin extension deck. Robust 4-wheel drive maneuvers through rough terrain with ease. Heavy-duty construction makes the S9043RT-HC durable and reliable in the construction and rental industries.
FEATURES
• 4 wheel drive

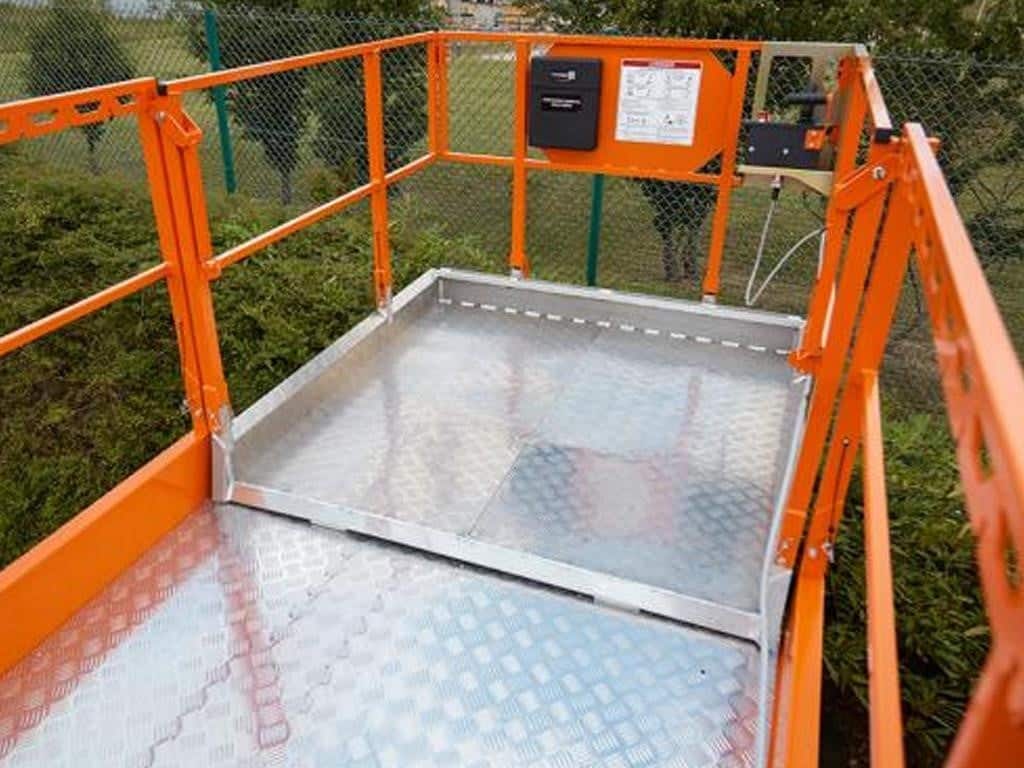

• Dual powered extension decks

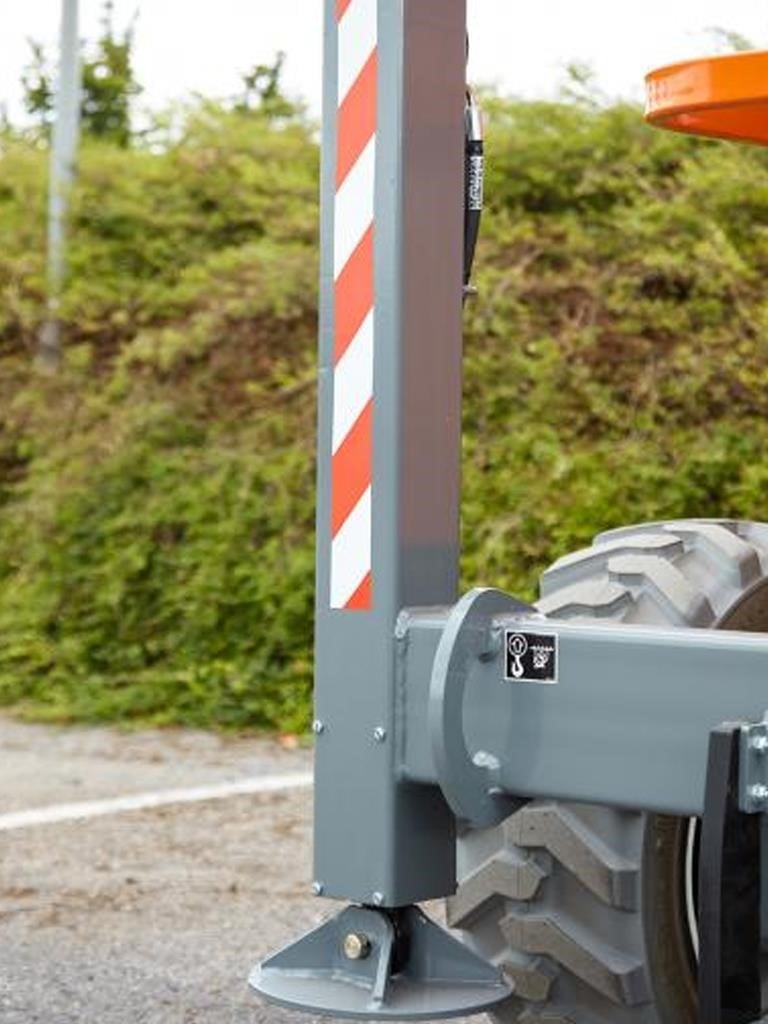

• 4 hydraulic stabilizers with automatic leveling

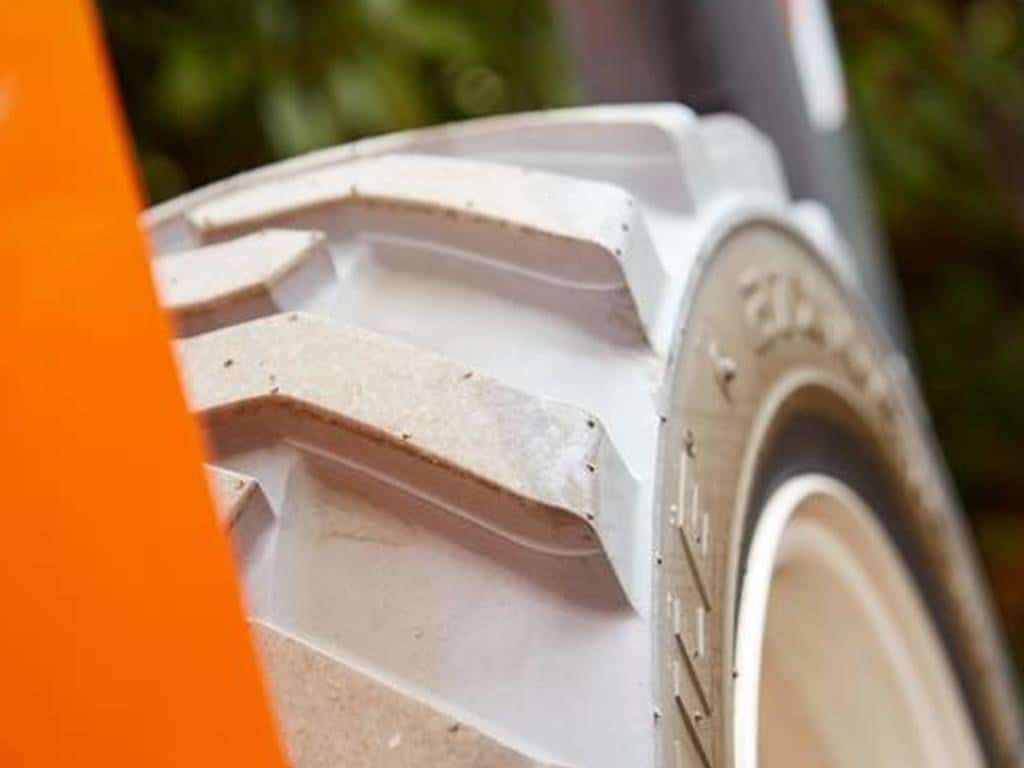

• Non-marking foam filled tires
• Proportional controls
• Foam filled tires
• Power line to platform
• Platform overload system
• Drive motion alarm
• Descent alarm
• Locking, oscillating axle
• Fold-down guardrails
• Flashing amber light

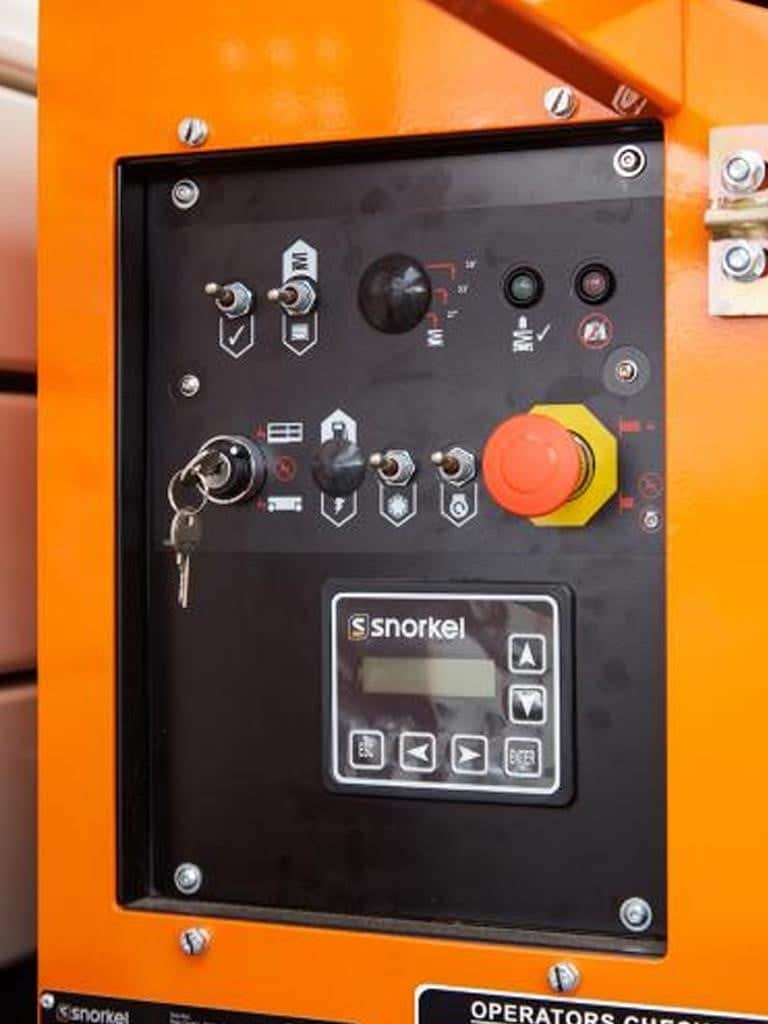

• Hour meter & on-board diagnostics display
• Manual lowering valve
• Dual lanyard attachment points
• 2 years parts & labor, 5 year structural warranty
OPTIONS
• Special paint colors
• Nylon spreader pads (set of 4)
• Environmental hydraulic oil
• Dual fuel
• Non-marking foam filled tires
• Cold weather package (block heater + battery warm up)
• Hydraulic generator 110V 2kW
• 12kW generator package
• Snorkel OnSite™ telematics
Specifications are subject to change without prior notice. Similar models may be shown in addition to the featured model. Equipment may be shown with options.
- Specifications - Raise / lower time: 40 / 25 seconds
- Specifications - Weight: 17,000 lbs
- Specifications - Drive system: 4 wheel drive
- Specifications - Outside turning radius: 18 ft 6 in
- Specifications - Max. wind speed: 28 mph
- Specifications - Overall width: 7 ft 6 in
- Specifications - Deck extension length: 4 ft 6 in
- Specifications - Inside turning radius: 8 ft
- Specifications - Max. drive speed (elevated): 0.6 mph
- Specifications - Ground clearance: 14 in
- Specifications - Max. stabilizer leveling (front to rear): 6º

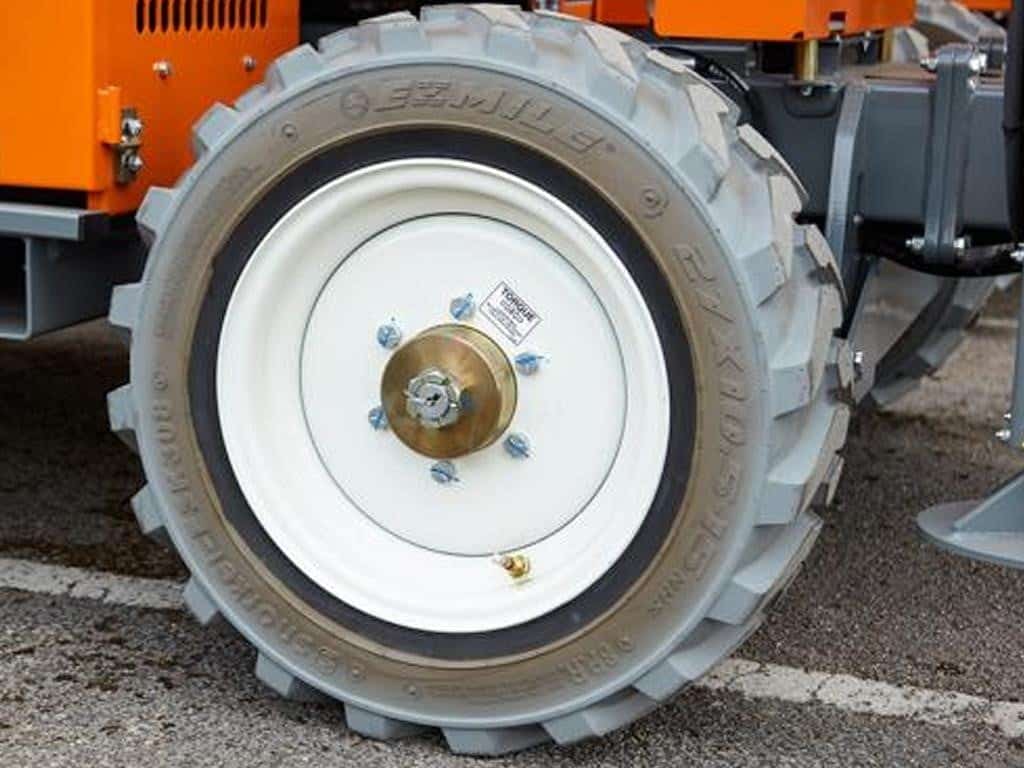

- Specifications - Tires: 13 x 36 foam filled
- Specifications - Gradeability: 50%

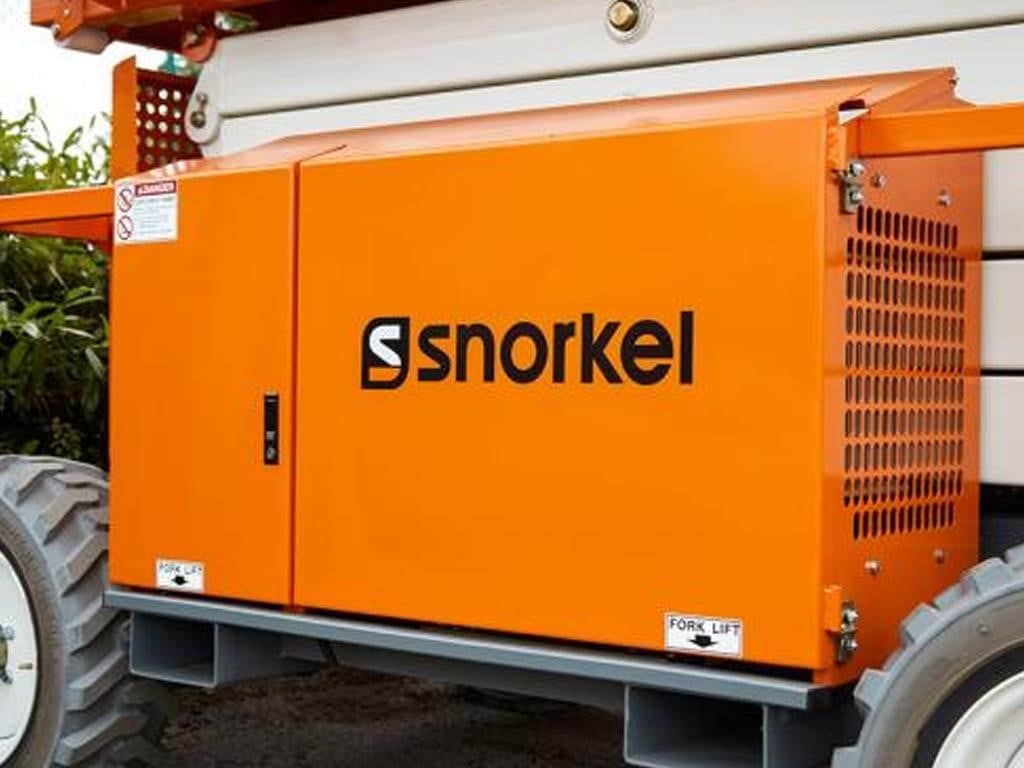

- Specifications - Power source: Kubota diesel
- Specifications - Platform capacity (SWL): 3,500 lbs
- Specifications - Platform size (extended): 25 ft x 7 ft 6 in
- Specifications - Max. working height: 49 ft
- Specifications - Max. drive speed (stowed): 4.2 mph
- Specifications - Max. stabilizer leveling (side to side): 12º
- Specifications - Max. drive height: 43 ft
- Specifications - Stowed height: 9 ft 1 in

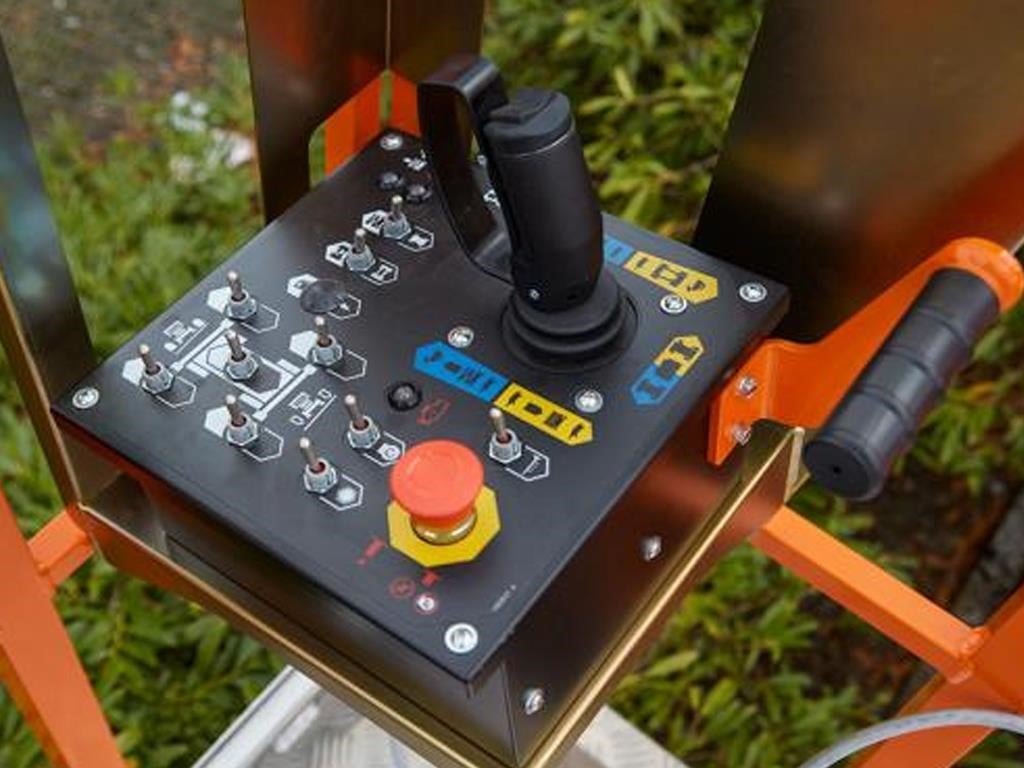

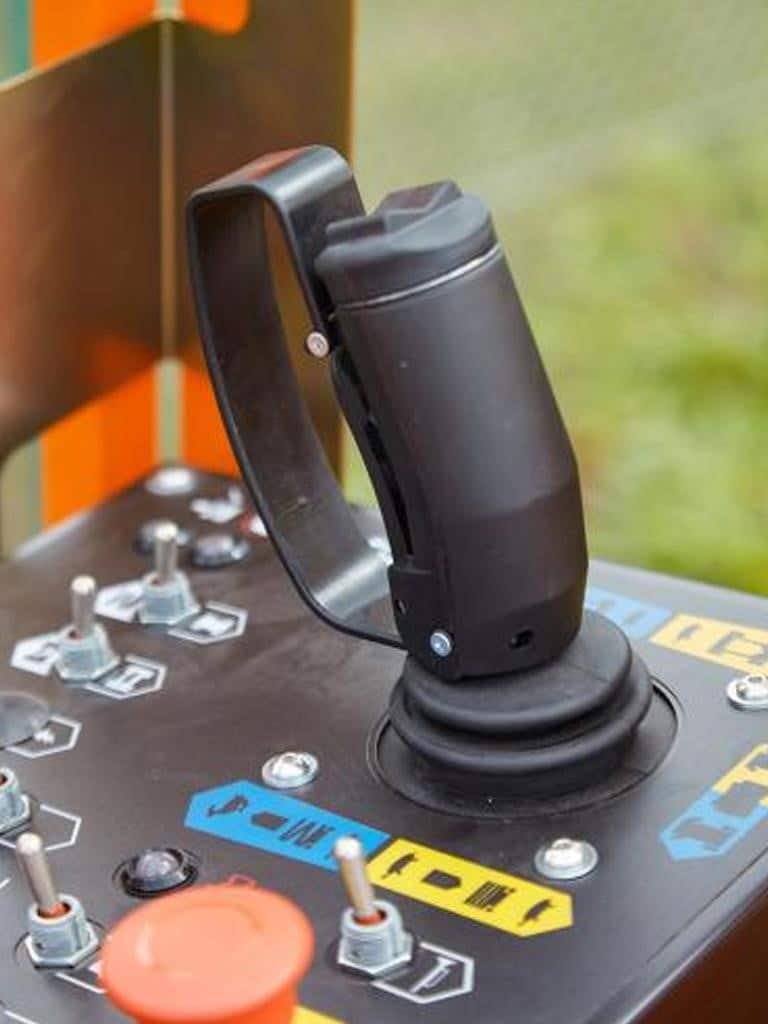

- Specifications - Controls: Proportional joystick
- Specifications - Platform size (stowed): 18 ft x 7 ft 6 in
- Specifications - Overall length: 16 ft
- Specifications - Min. height (guardrails folded): 6 ft 3 in
- Specifications - Max. platform height: 43 ft
