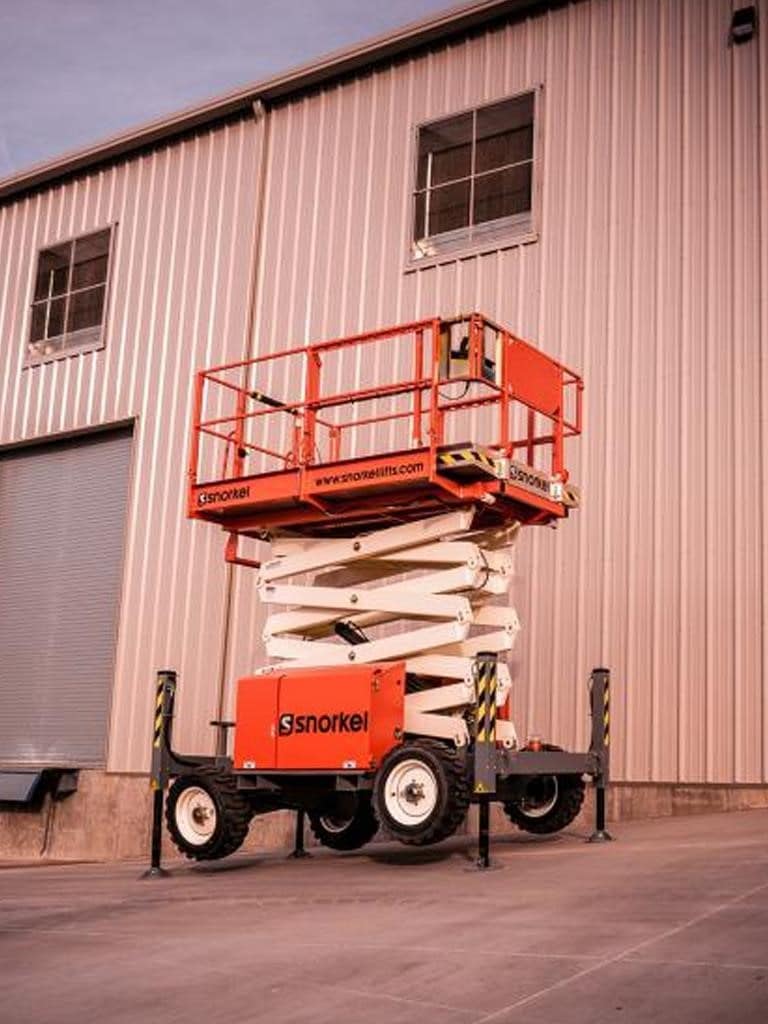

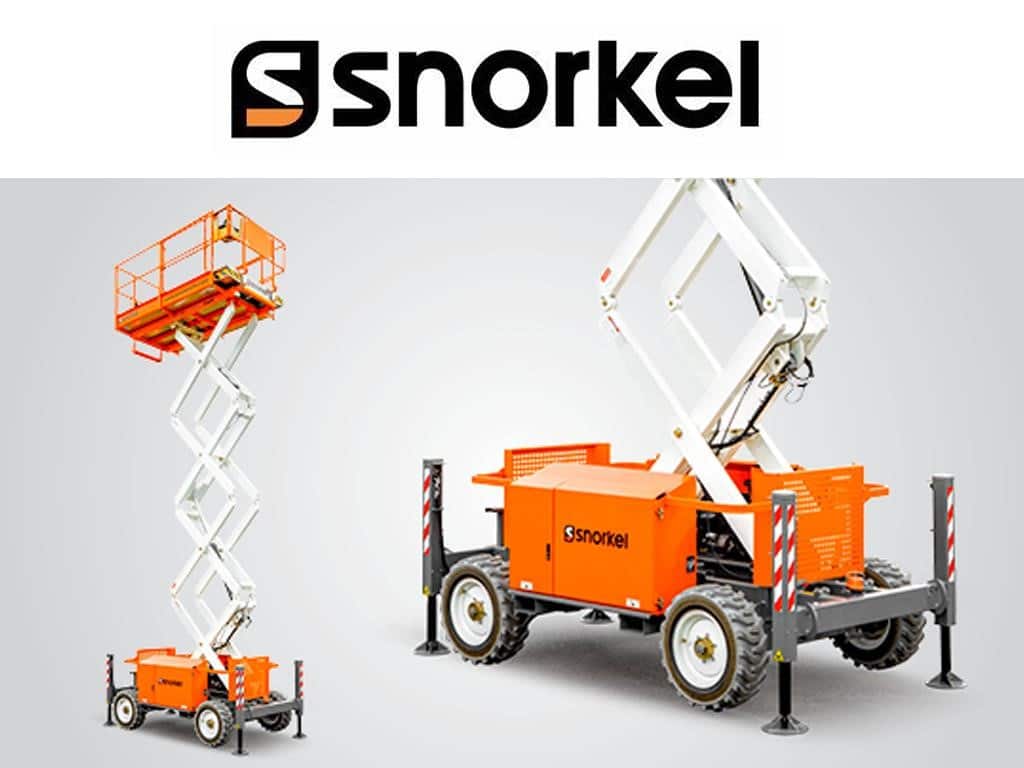

S2770RT—SNORKEL ROUGH TERRAIN SCISSOR LIFT
BUILT FOR VERSATILITY
The Snorkel S2770RT compact rough terrain diesel scissor lift is lightweight yet powerful. Equipped with robust 4-wheel drive, it makes easy work of rough terrain. Compact dimensions allow the S2770RT to perform outdoor work in confined spaces. Auto level outriggers and a roll-out deck extension also come as standard.
FEATURES
• 4 wheel drive

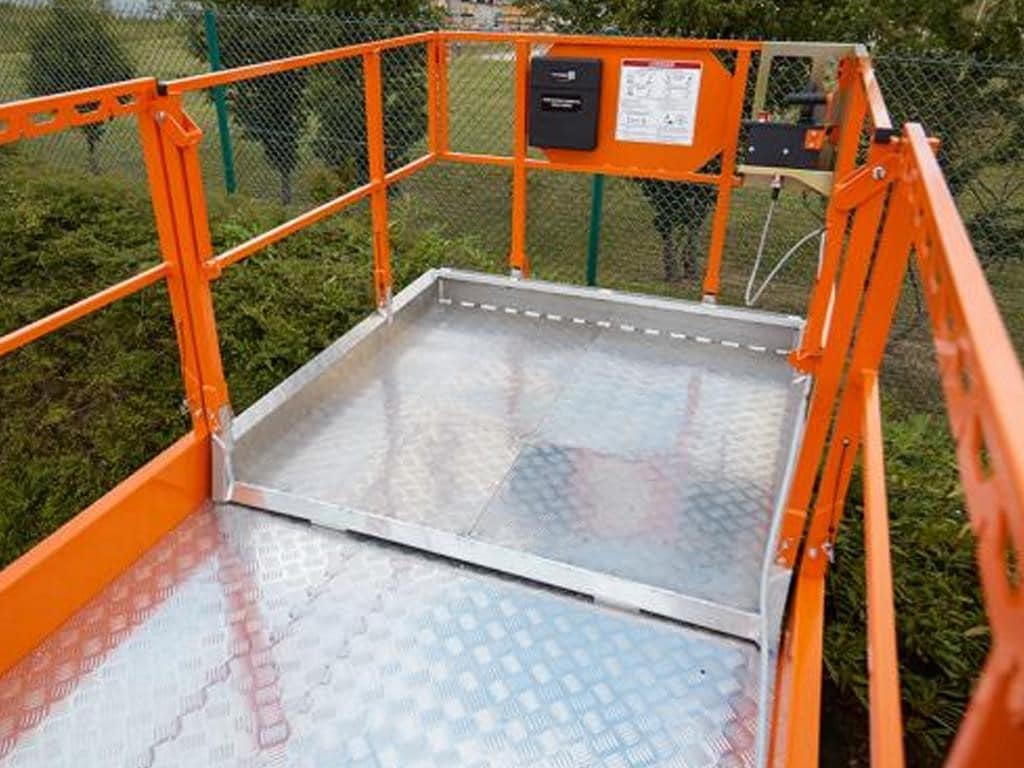

• Roll-out deck extension

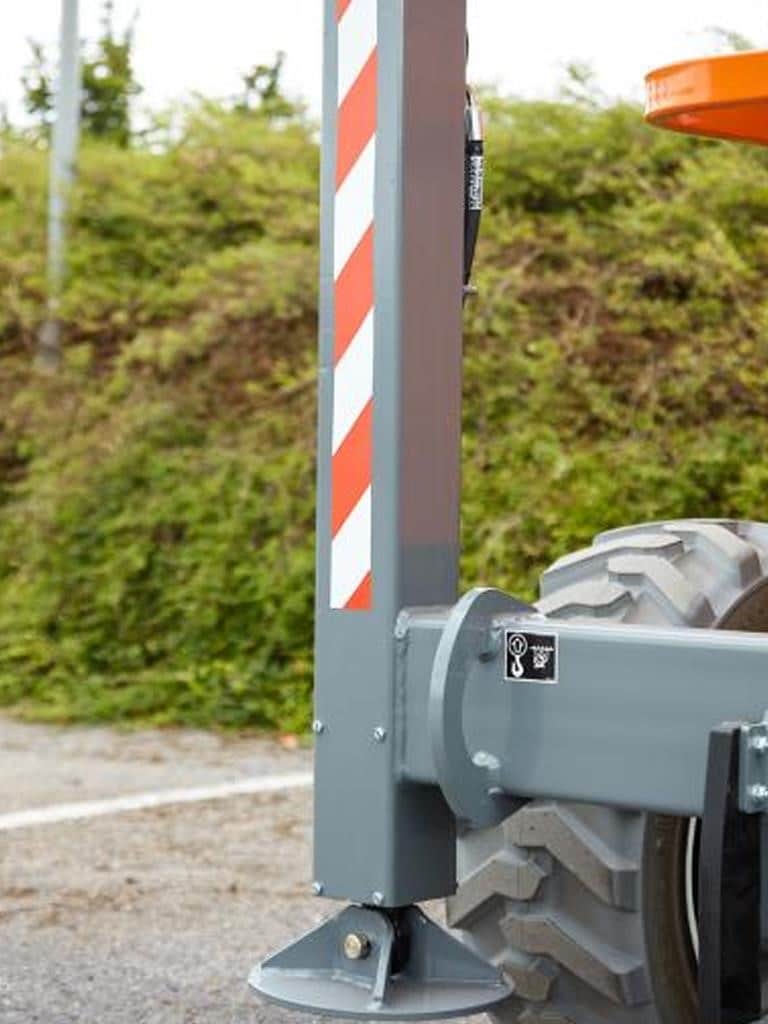

• 4 hydraulic stabilizers with automatic leveling

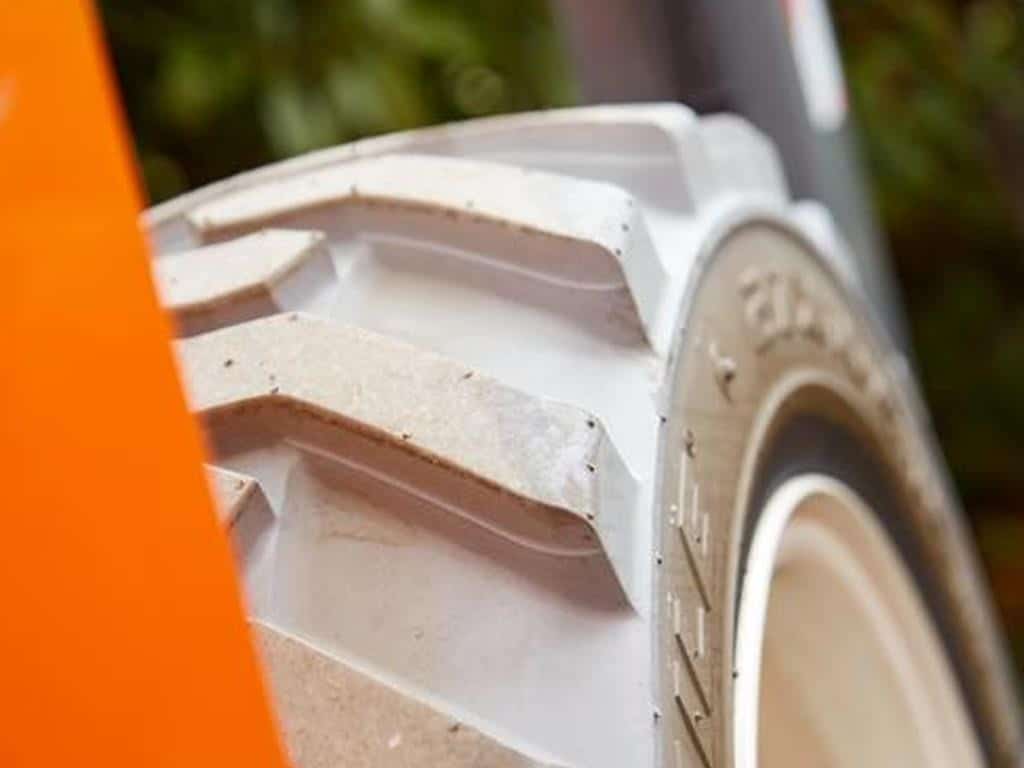

• Non-marking foam filled tires

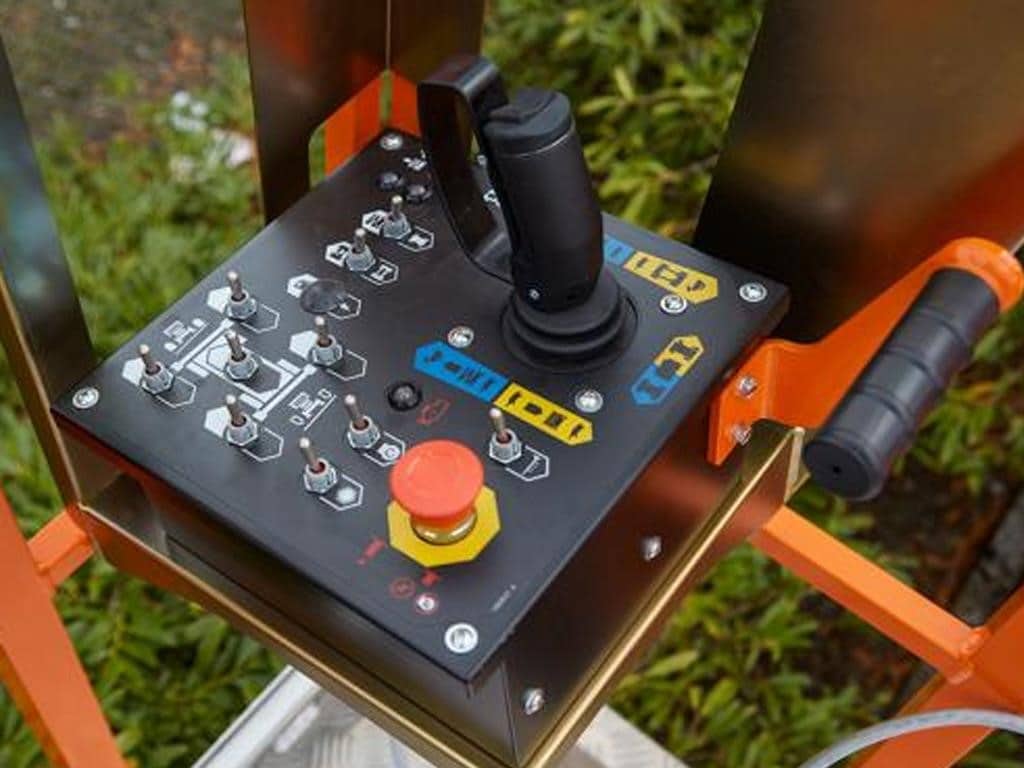

• Proportional controls
• Power line to platform
• Drive motion alarm
• Descent alarm
• Fold-down guardrails
• Flashing amber light (x2)
• Articulating axle

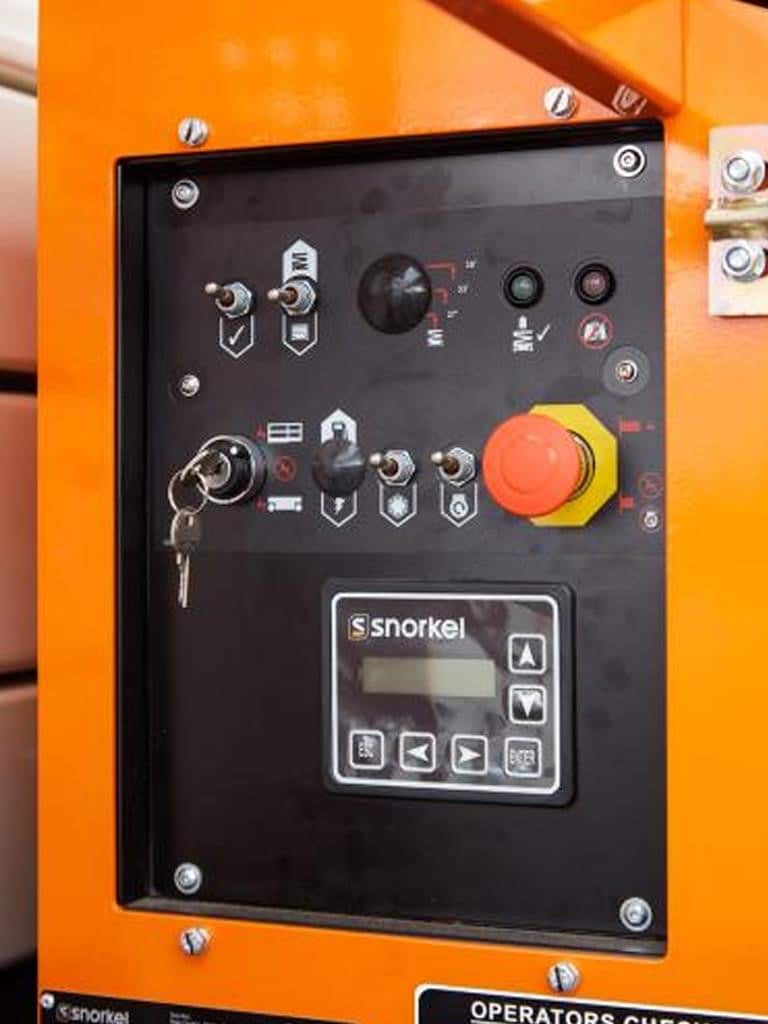

• Hour meter & on-board diagnostics display
• Manual lowering valve
• Dual lanyard attachment points
• 2 years parts & labor, 5 year structural warranty
OPTIONS
• Special paint colors
• Hydraulic generator 110V 2kW
• Nylon spreader pads (set of 4)
• Environmental hydraulic oil
• Platform overload system
Specifications are subject to change without prior notice. Similar models may be shown in addition to the featured model. Equipment may be shown with options.
- Specifications - Max. leveling (side to side): 10°
- Specifications - Gradeability: 35%
- Specifications - Raise / lower time: 26 / 30 sec
- Specifications - Inside turning radius: 8 ft 10 in
- Specifications - Platform size (stowed): 5 ft 2 in x 9 ft 8 in
- Specifications - Ground clearance: 13 in
- Specifications - Max. leveling (front to rear): 6°
- Specifications - Weight: 6,172 lbs
- Specifications - Max. drive speed (elevated): 0.3 mph
- Specifications - Platform size (extended): 13 ft 1 in x 5 ft 2 in
- Specifications - Overall width: 5 ft 10 in
- Specifications - Overall length: 11 ft
- Specifications - Max. working height: 33 ft
- Specifications - Max. wind speed: 28 mph
- Specifications - Max. drive speed (stowed): 2.8 mph
- Specifications - Max. drive height: 27 ft

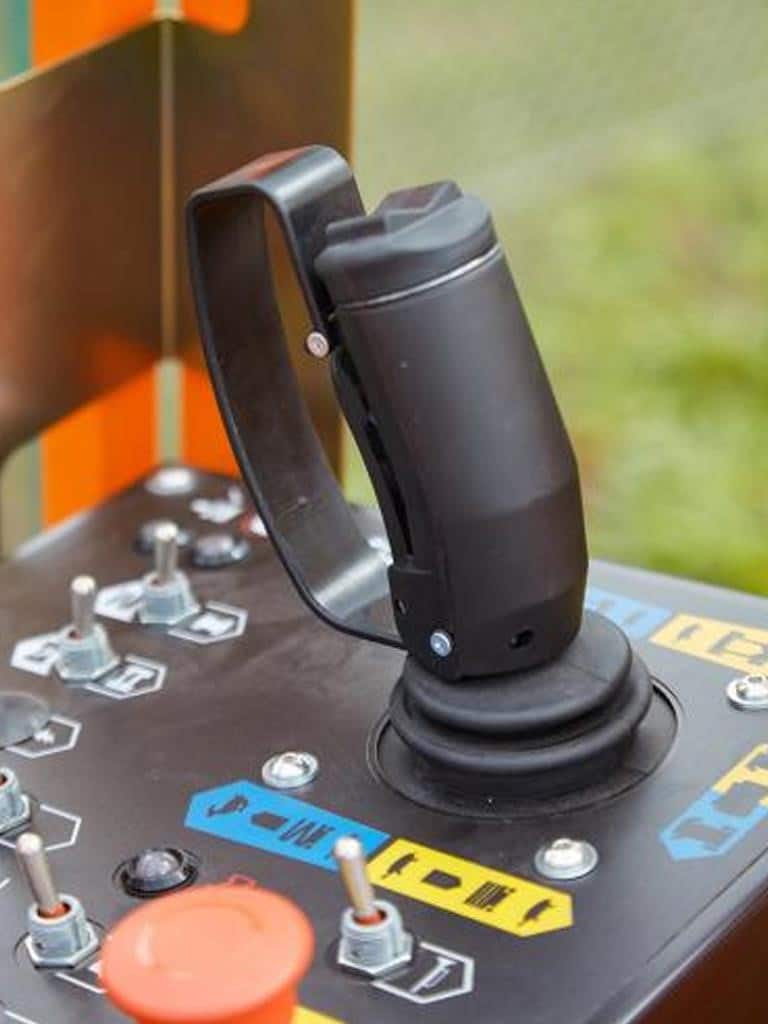

- Specifications - Controls: Proportional joystick

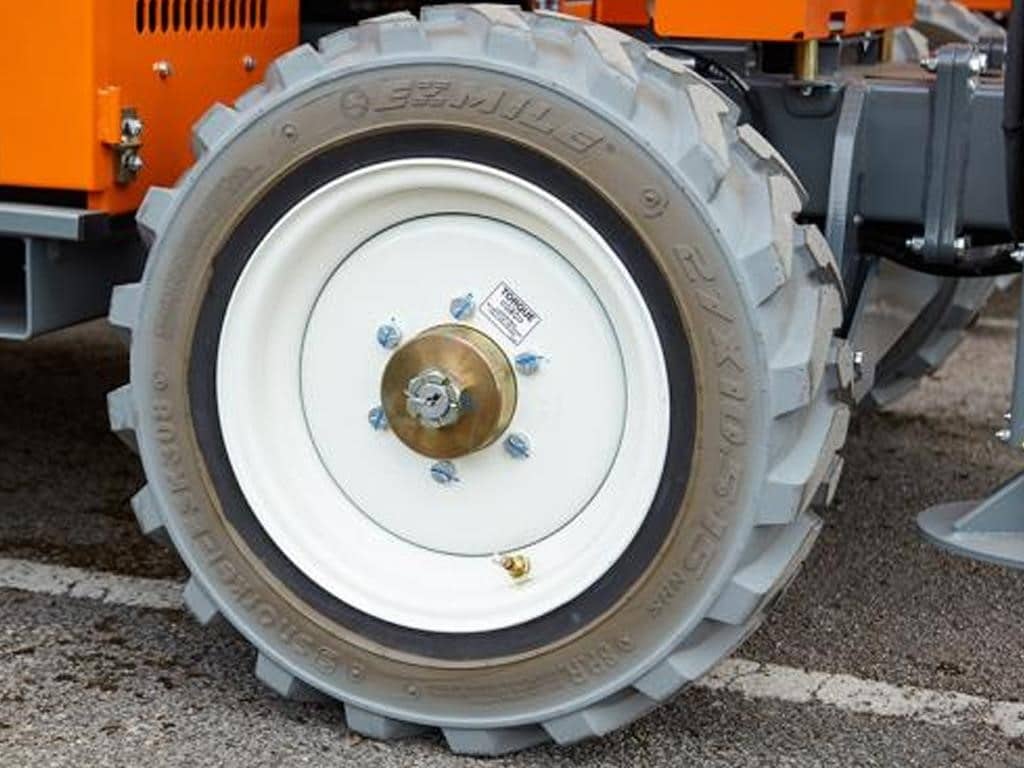

- Specifications - Tires: 27 x 10.5 - 15 non-marking foam filled
- Specifications - Min. height (guardrails folded): 6 ft

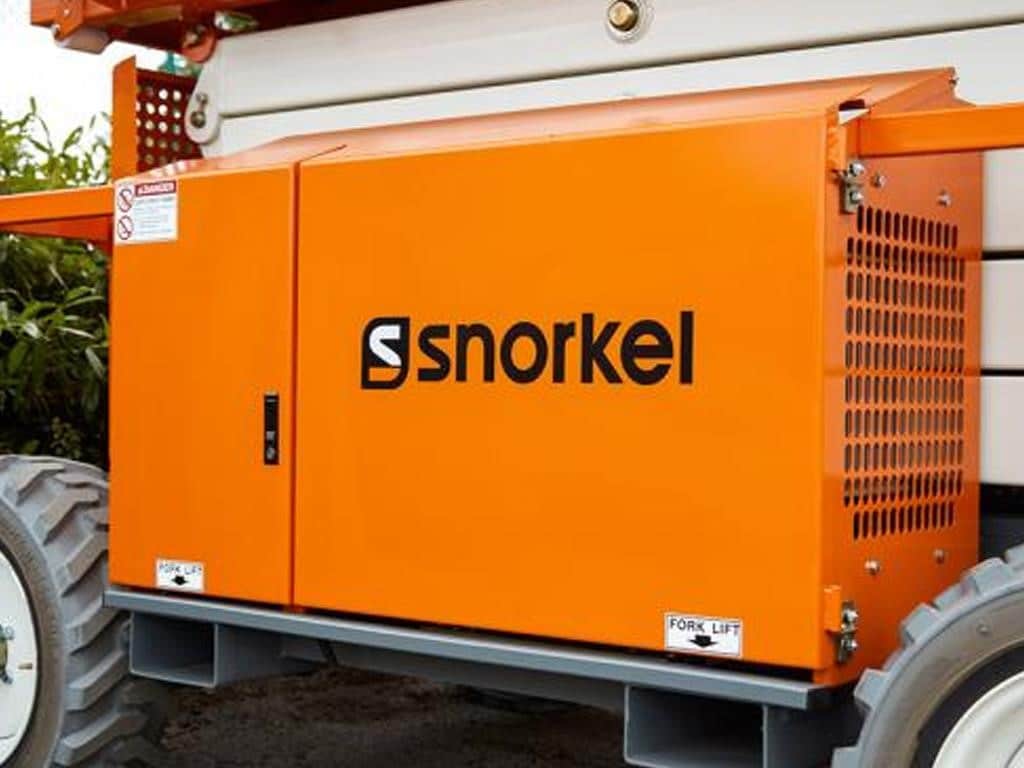

- Specifications - Power source: Kubota D-902 water cooled diesel 22.5 hp - Tier 4 Final
- Specifications - Platform capacity (SWL): 1,250 lbs
- Specifications - Deck extension length: 4 ft
- Specifications - Outside turning radius: 16 ft 3 in
- Specifications - Max. platform height: 27 ft
- Specifications - Stowed height: 8 ft 7 in
- Specifications - Drive system: 4 wheel drive
