S2755RT—SNORKEL ROUGH TERRAIN SCISSOR LIFT
FAR-REACHING YET NARROW

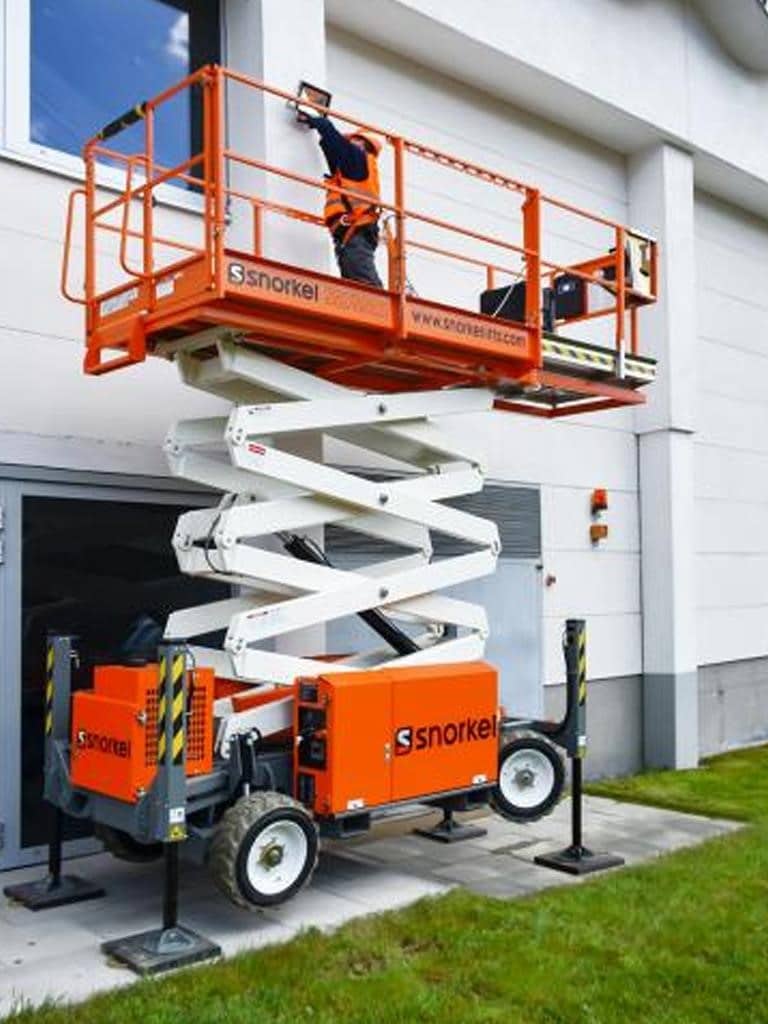

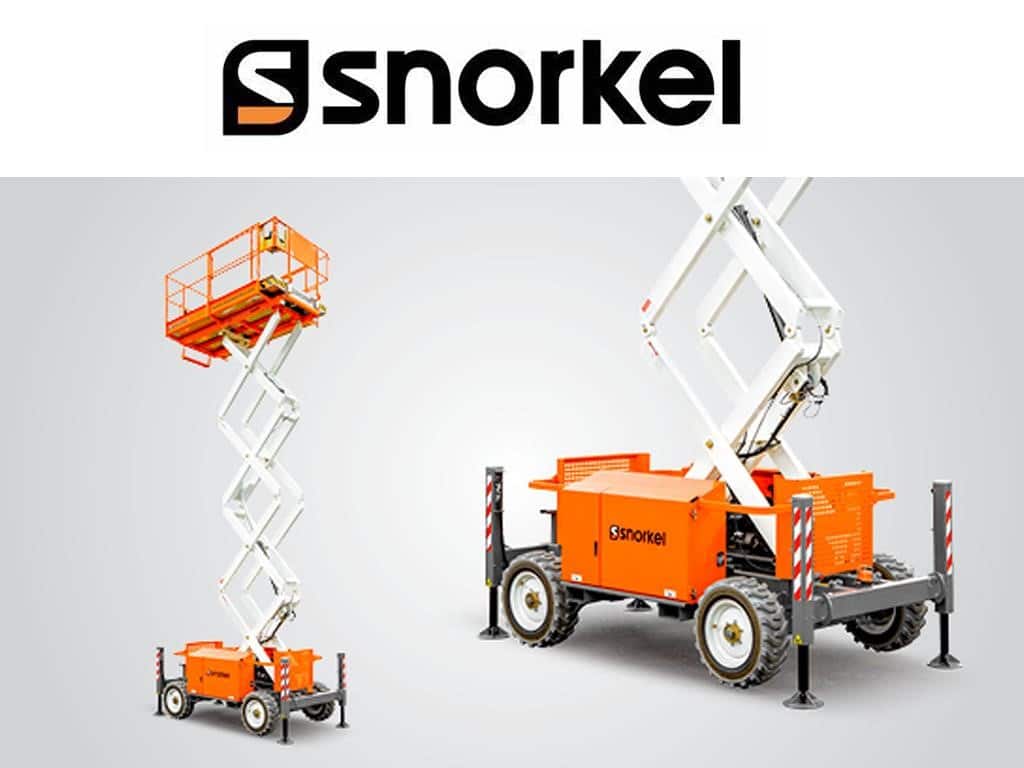

The Snorkel S2755RT narrow scissor lift is designed to be ultra-compact for outdoor work in confined spaces. Designed to deliver excellent off-road performance, this diesel-powered rough terrain scissor lift tackles all types of terrains with ease. Equipped with hydraulic outriggers as standard, the S2755RT features automatic leveling on uneven ground. Also designed with narrow dimensions, the scissor lift is easily towed on a trailer by a car or commercial vehicle between jobs.
FEATURES
• 4 wheel drive
• 4 hydraulic stabilizers with automatic leveling
• Roll out deck extension
• Non-marking foam filled tires
• Proportional controls
• Power line to platform
• Drive motion alarm
• Descent alarm
• Articulating axle
• Manual lowering valve
• Flashing amber light
• Dual lanyard attachment points
• Hour meter
• 2 years parts & labor, 5 year structural warranty
OPTIONS
• Special paint colors (one color)
• Special paint colors (two color)
• Nylon spreader pads (set of 4)
• Environmental hydraulic oil
Specifications are subject to change without prior notice. Similar models may be shown in addition to the featured model. Equipment may be shown with options.
- SPECIFICATIONS - Max. wind speed: 28 mph
- SPECIFICATIONS - Platform capacity (SWL): 660 lbs
- SPECIFICATIONS - Ground clearance: 10.2 in
- SPECIFICATIONS - Power source: Kubota diesel engine
- SPECIFICATIONS - Outside turning radius: 15 ft 7 in
- SPECIFICATIONS - Overall width: 4 ft 9 in
- SPECIFICATIONS - Deck extension length: 3 ft 11 in
- SPECIFICATIONS - Min. height (guardrails folded): 6 ft 11 in
- SPECIFICATIONS - Stowed height: 8 ft 3 in
- SPECIFICATIONS - Max. outrigger levelling (side to side): 10°
- SPECIFICATIONS - Max. drive speed (stowed): 4.25 mph
- SPECIFICATIONS - Drive system: 4 wheel drive
- SPECIFICATIONS - Overall length: 10 ft 10 in
- SPECIFICATIONS - Max. drive speed (elevated): 0.3 mph
- SPECIFICATIONS - Inside turning radius: 8 ft 2 in
- SPECIFICATIONS - Platform size (extended): 4 ft 7 in x 12 ft 8 in
- SPECIFICATIONS - Max. working height: 33 ft 1 in
- SPECIFICATIONS - Max. drive height: 25 ft 7 in
- SPECIFICATIONS - Tires: 23 in x 8.9 in - 12 non-marking
- SPECIFICATIONS - Platform size (stowed): 4 ft 7 in x 8 ft 9 in
- SPECIFICATIONS - Gradeability: 35%
- SPECIFICATIONS - Weight: 6,062 lbs
- SPECIFICATIONS - Controls: Proportional joystick
- SPECIFICATIONS - Raise / lower time: 26 / 30 sec
- SPECIFICATIONS - Max. platform height: 27 ft 1 in
- SPECIFICATIONS - Power options: Bi-energy
- SPECIFICATIONS - Max. outrigger levelling (front to rear): 6°
