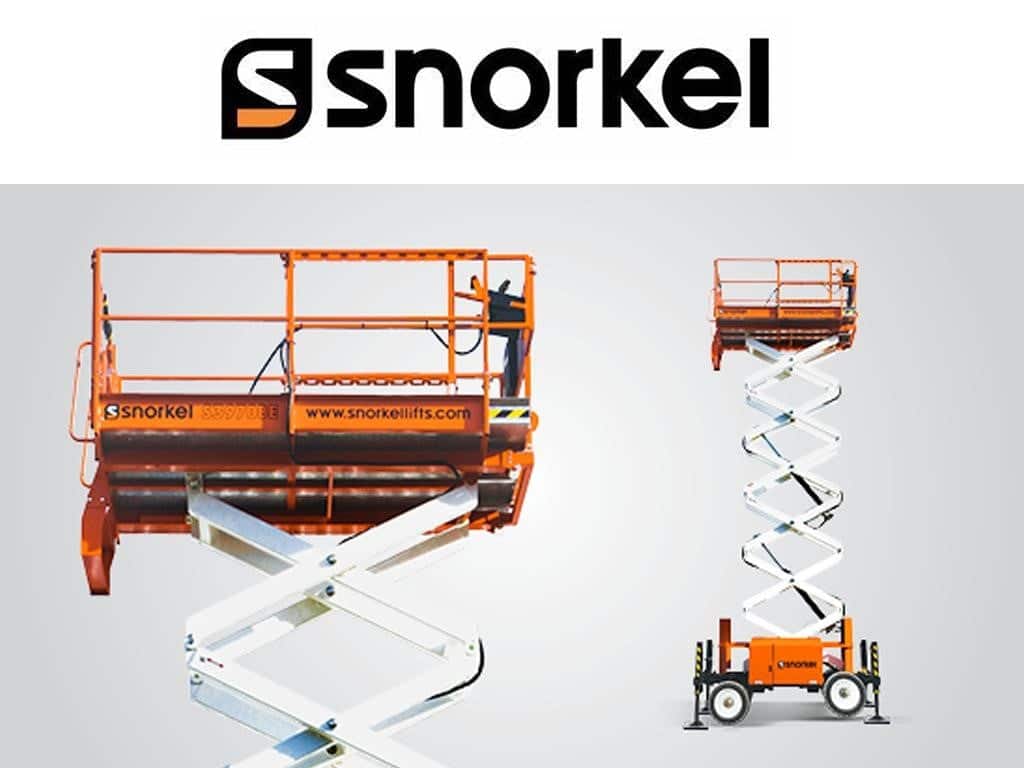

S2755BE — SNORKEL ROUGH TERRAIN SCISSOR LIFT
The Snorkel S2755BE narrow rough terrain scissor lift adds bi-energy power to four wheel drive performance. Switching from diesel-powered outdoor work to battery-powered, zero emission indoor work is made easy, and the lightweight design can be towed on a car trailer.
FEATURES
• DC & diesel power for indoor and outdoor work
• 4 wheel drive

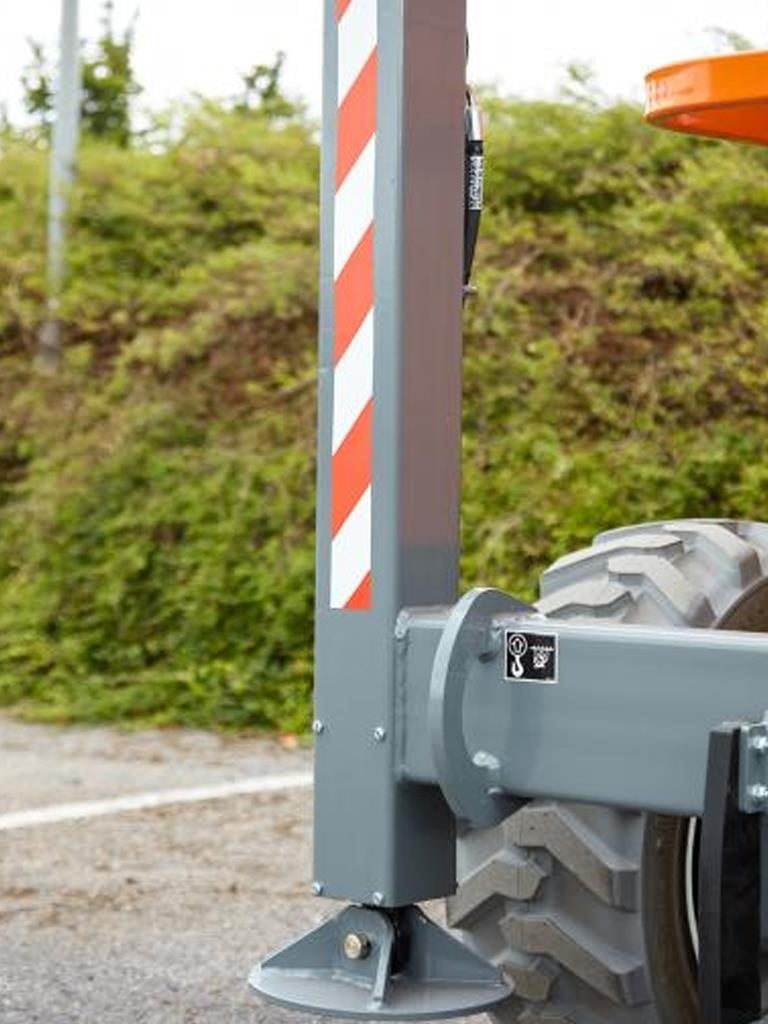

• 4 hydraulic stabilizers with automatic leveling

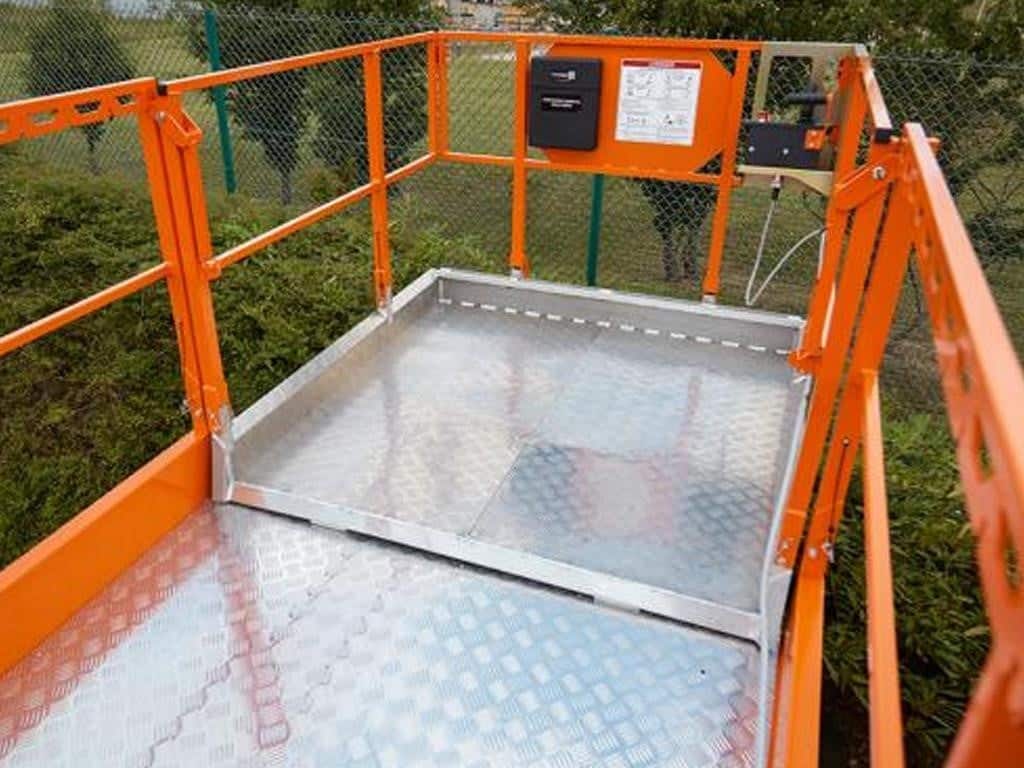

• Roll out deck extension

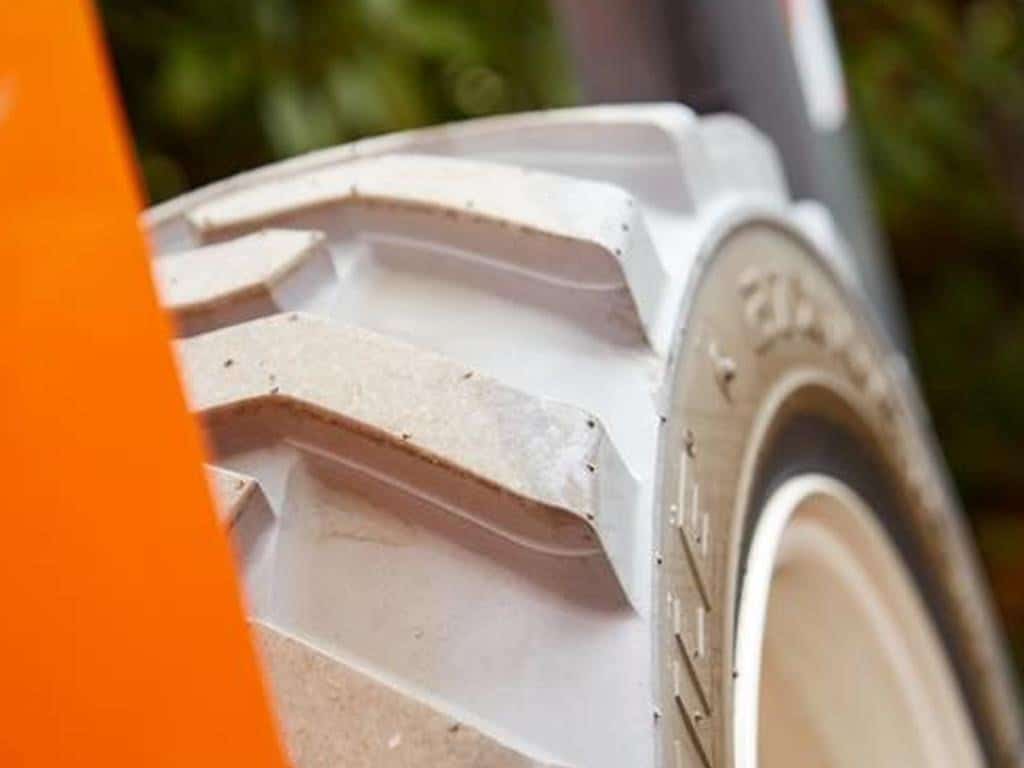

• Non-marking foam filled tires

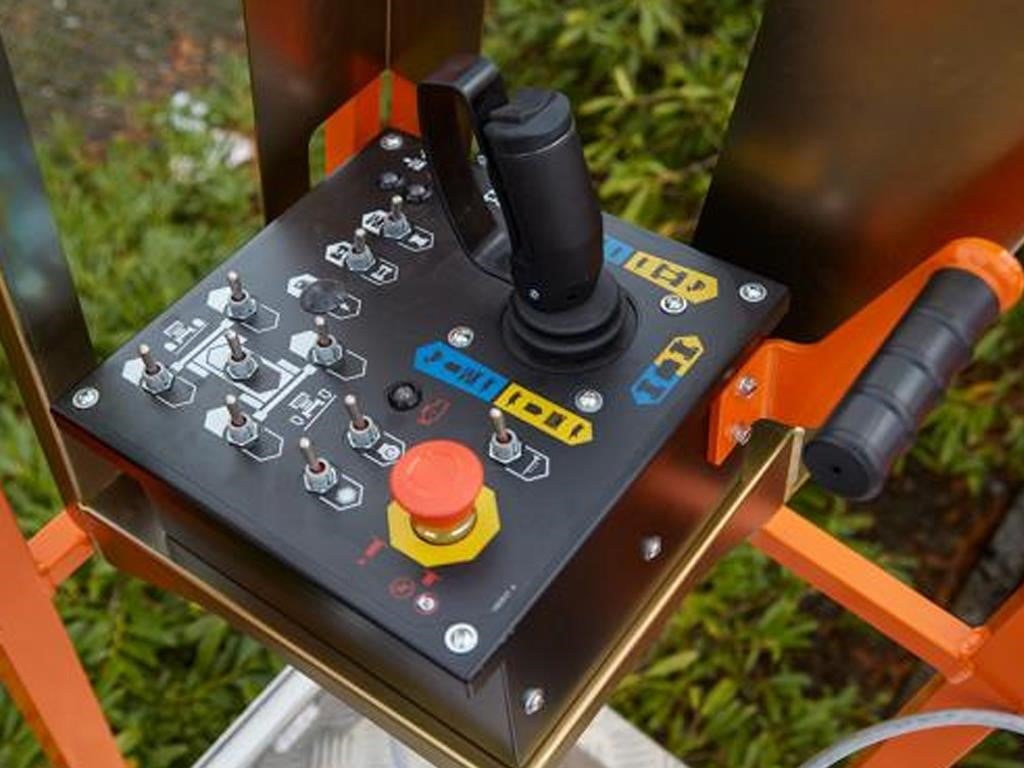

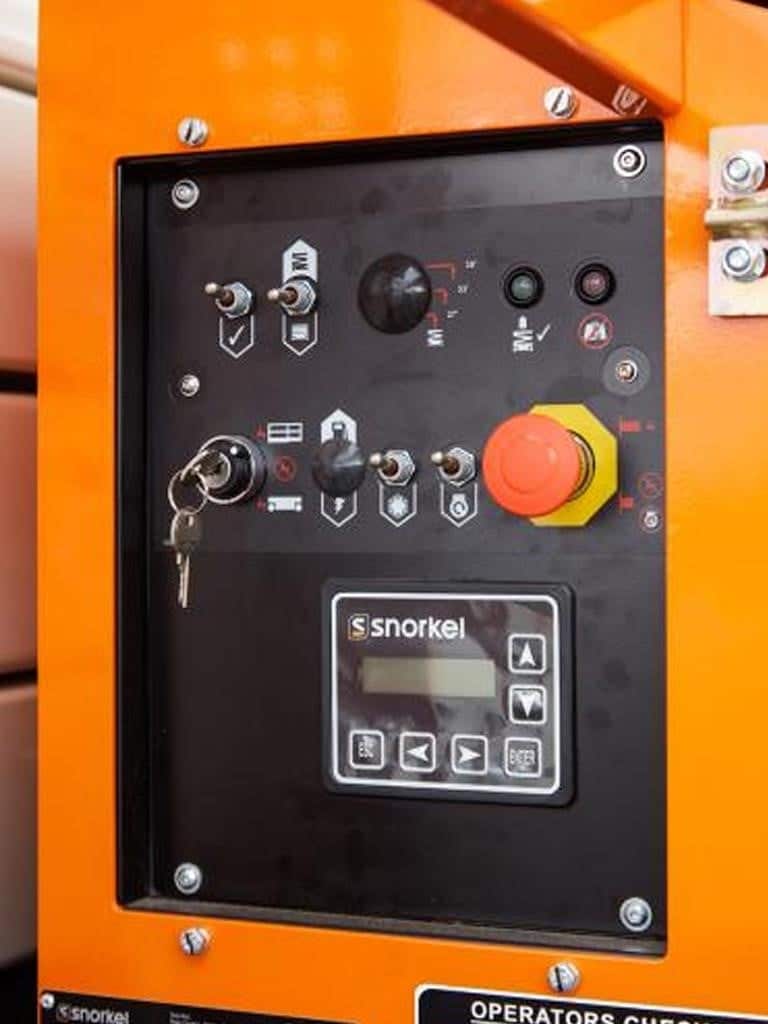

• Proportional controls
• Power line to platform
• Drive motion alarm
• Descent alarm
• Manual lowering valve
• Flashing amber light
• Dual lanyard attachment points
• Oscillating axle
• Hour meter
• 2 years parts & labor, 5 year structural warranty
OPTIONS
• Special paint colors
• Nylon spreader pads (set of 4)
• Cold weather package (block heater + battery warm up)
• Environmental hydraulic oil
• Snorkel OnSite™ telematics
Specifications are subject to change without prior notice. Similar models may be shown in addition to the featured model. Equipment may be shown with options.
- Specifications - Max. drive speed (elevated): 0.31 mph
- Specifications - Raise / lower time: 26 / 30 seconds
- Specifications - Deck extension length: 4 ft
- Specifications - Max. leveling (front to rear): 6º
- Specifications - Overall width: 4 ft 9 in

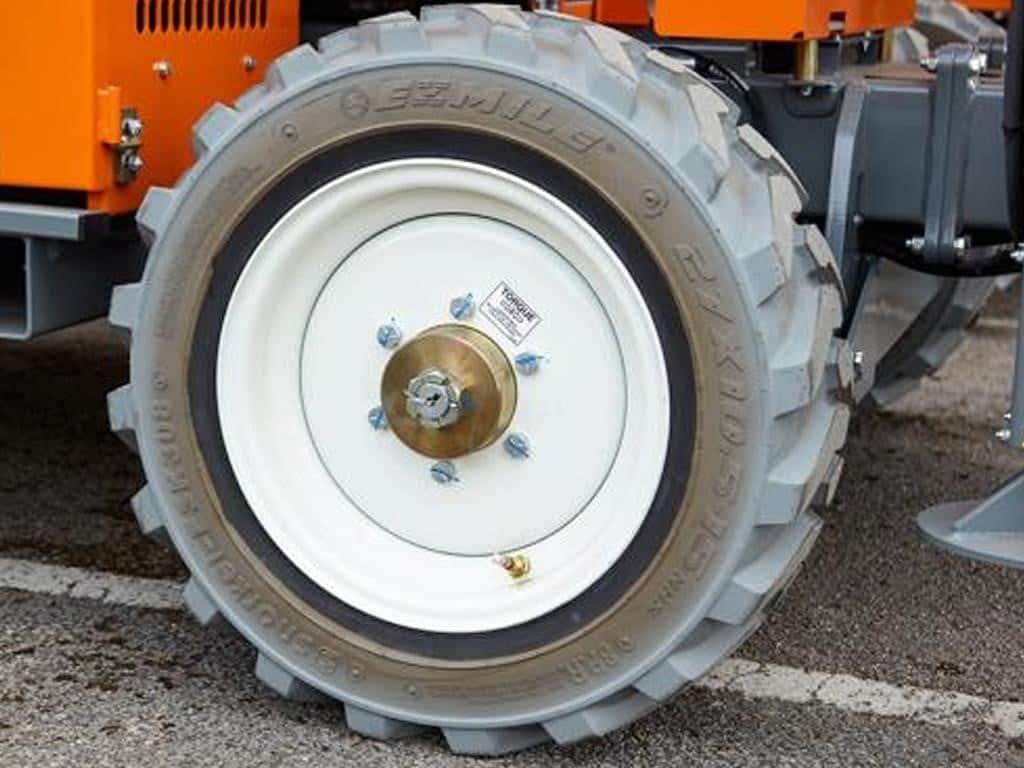

- Specifications - Tires: 23 in x 8.9 in - 12 non-marking
- Specifications - Min. height (guardrails folded): 6 ft 6 in
- Specifications - Inside turning radius: 8 ft 2 in
- Specifications - Drive system: 4 wheel drive
- Specifications - Overall length: 10 ft 10 in

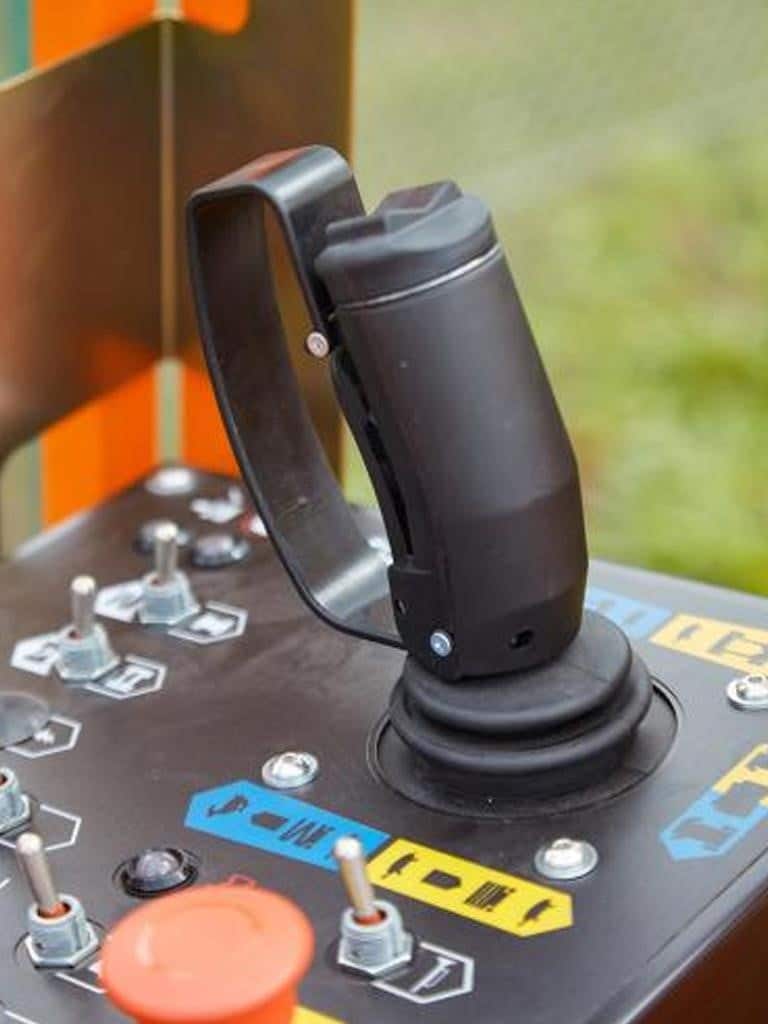

- Specifications - Controls: Proportional joystick
- Specifications - Outside turning radius: 15 ft 7 in
- Specifications - Max. platform height: 27 ft 1 in
- Specifications - Platform size (stowed): 4 ft 7 in x 8 ft 11 in
- Specifications - Power source: Kubota diesel engine
- Specifications - Max. drive height: 25 ft 7 in
- Specifications - Max. wind speed: 28 mph
- Specifications - Platform capacity (SWL): 660 lbs
- Specifications - Platform size (extended): 4 ft 7 in x 12 ft 10 in
- Specifications - Max. drive speed (stowed): 4.25 mph
- Specifications - Max. leveling (side to side): 10º
- Specifications - Weight: 6,835 lbs
- Specifications - Ground clearance: 10 in
- Specifications - Max. working height: 33 ft 1 in
- Specifications - Stowed height: 8 ft 3 in
- Specifications - Gradeability (engine): 35%
