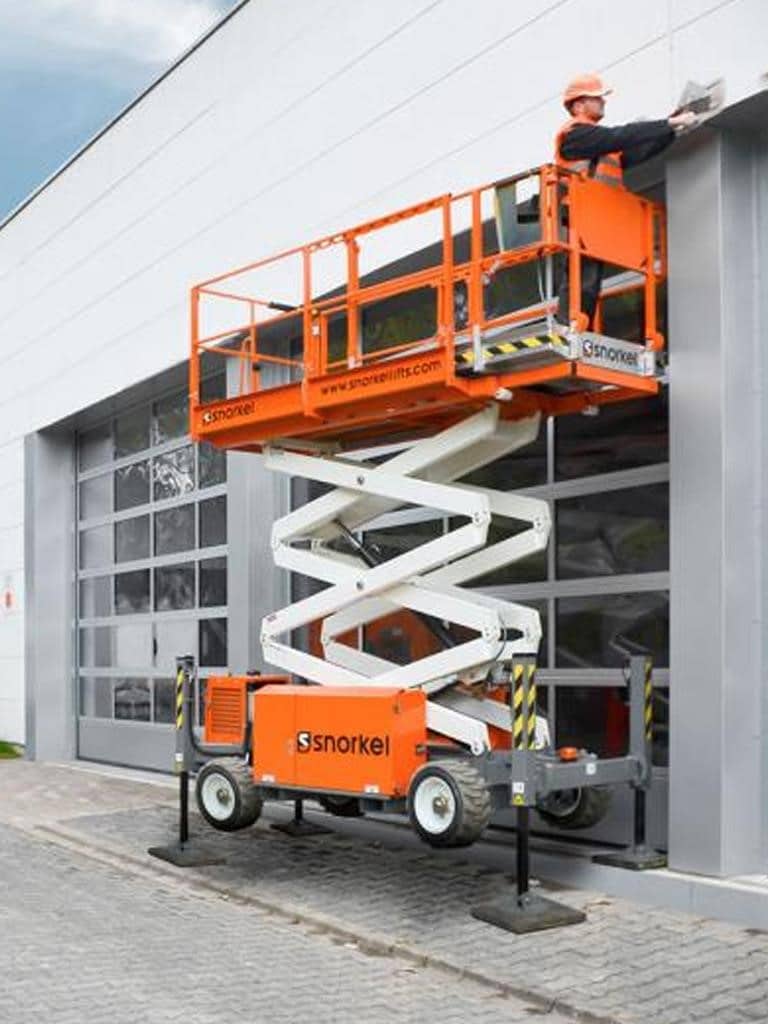

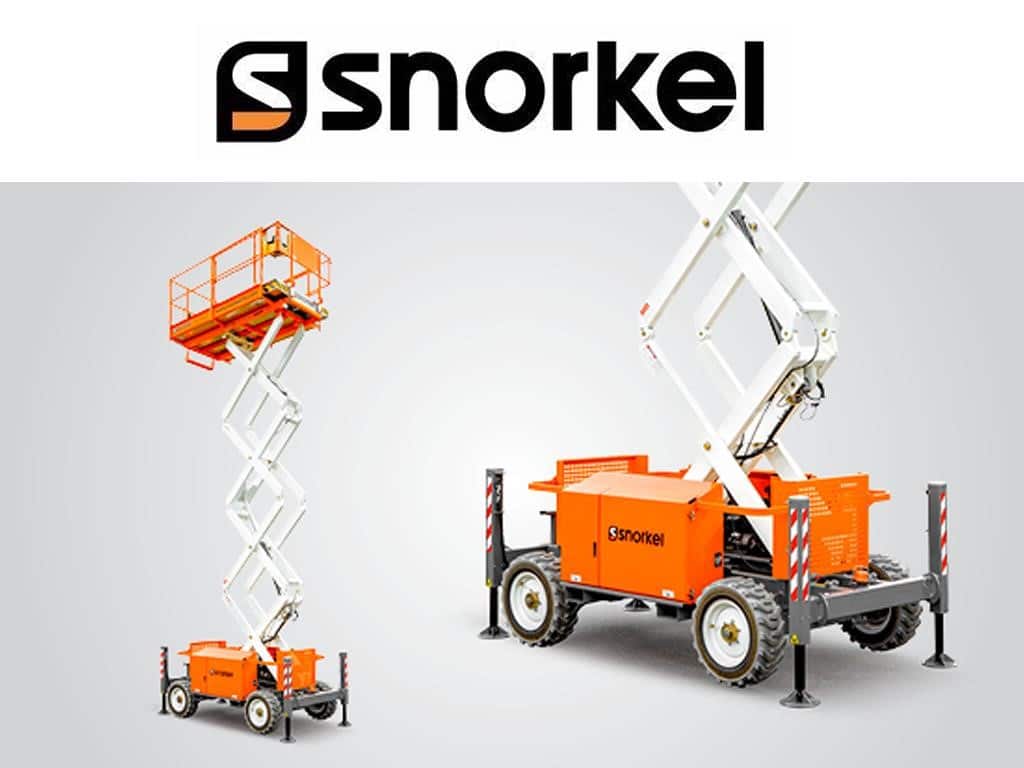

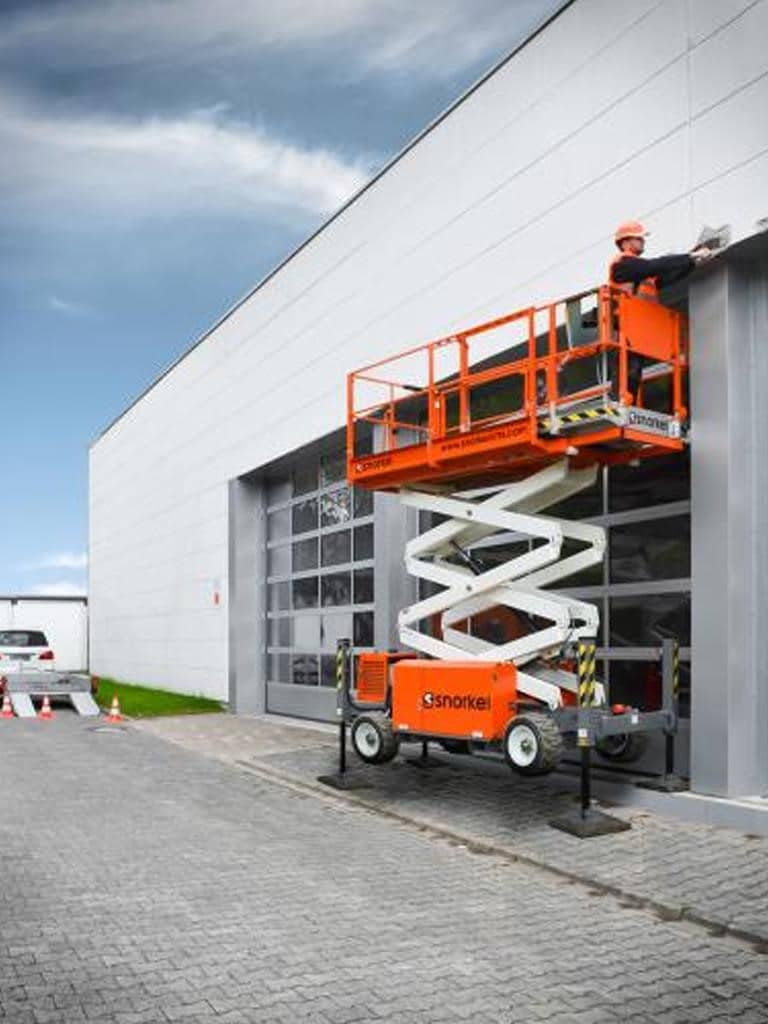

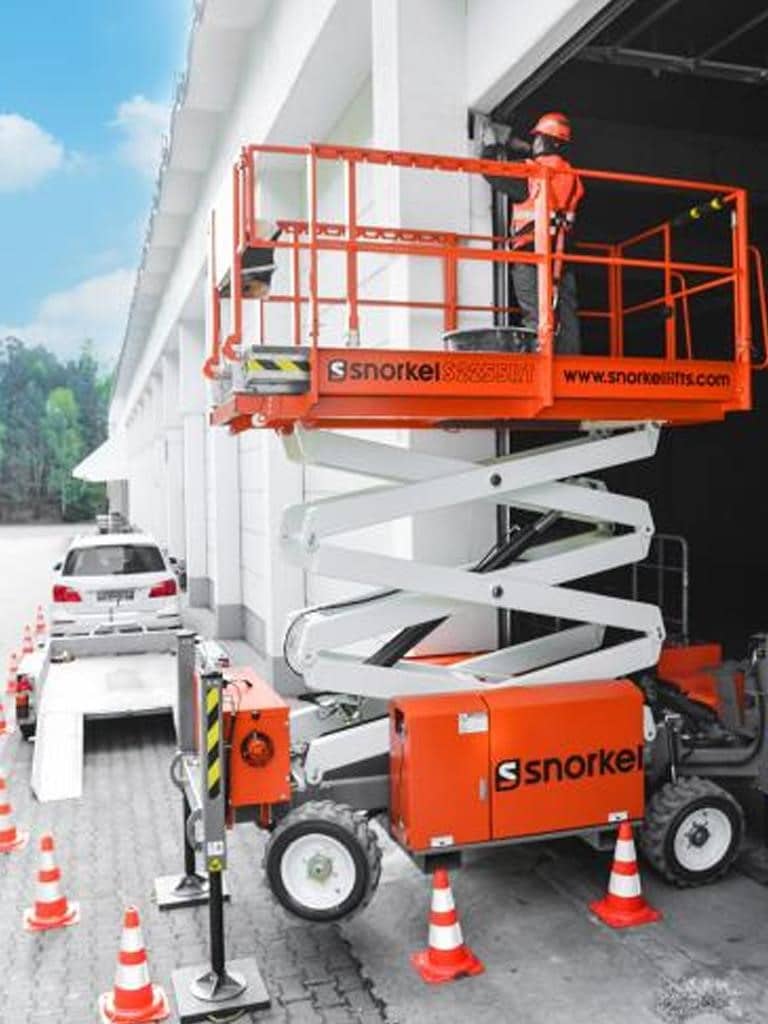

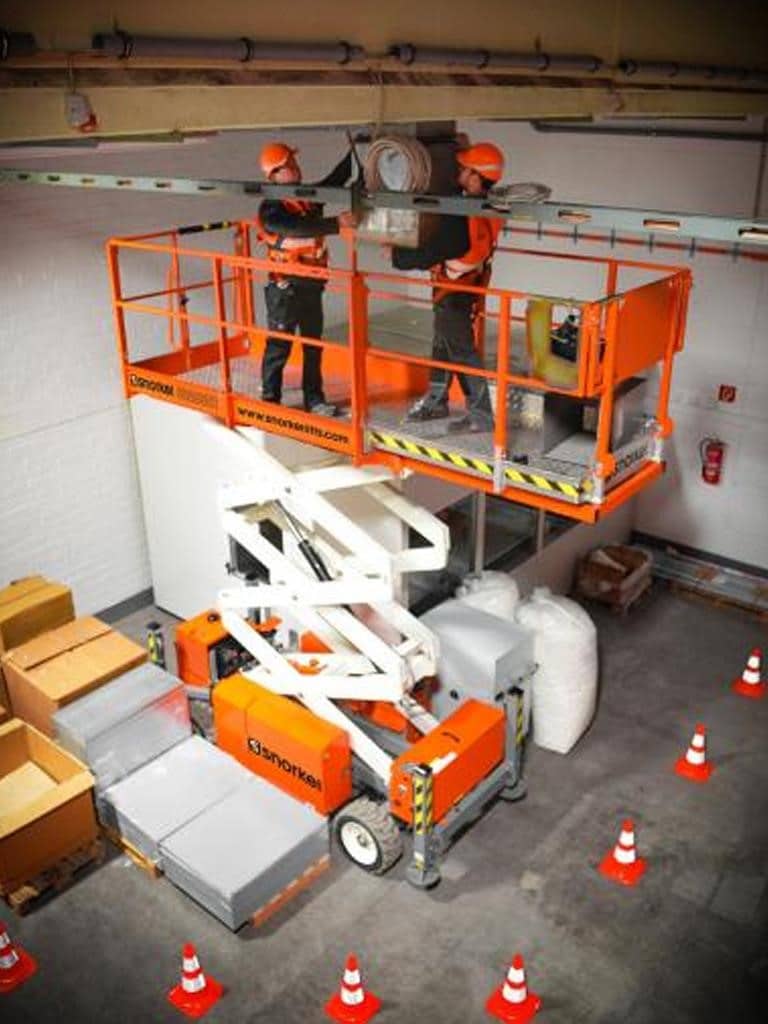

S2255RT—SNORKEL ROUGH TERRAIN SCISSOR LIFT
SIZABLY SLIM
The Snorkel S2255RT narrow rough terrain scissor lift provides excellent off-road performance thanks to a powerful diesel engine. It’s ultra-narrow width and low weight means it can be easily towed on a tandem trailer.
FEATURES
• 4 wheel drive
• 4 hydraulic stabilizers with automatic leveling
• Roll out deck extension
• Non-marking foam filled tires
• Proportional controls
• Power line to platform
• Drive motion alarm
• Descent alarm
• Articulating axle
• Manual lowering valve
• Flashing amber light
• Dual lanyard attachment points
• Hour meter
• 2 years parts & labor, 5 year structural warranty
OPTIONS
• Special paint colors (one color)
• Special paint colors (two color)
• Nylon spreader pads (set of 4)
• Environmental hydraulic oil
Specifications are subject to change without prior notice. Similar models may be shown in addition to the featured model. Equipment may be shown with options.
- SPECIFICATIONS - Min. height (guardrails folded): 6 ft 6 in
- SPECIFICATIONS - Deck extension length: 3 ft 11 in
- SPECIFICATIONS - Max. drive speed (stowed): 4.25 mph
- SPECIFICATIONS - Power source: Kubota diesel engine
- SPECIFICATIONS - Max. platform height: 21 ft 3 in
- SPECIFICATIONS - Gradeability: 35%
- SPECIFICATIONS - Ground clearance: 10.2 in
- SPECIFICATIONS - Max. outrigger levelling (front to rear): 6°
- SPECIFICATIONS - Max. working height: 27 ft 3 in
- SPECIFICATIONS - Platform capacity (SWL): 925 lbs
- SPECIFICATIONS - Weight: 5,313 lbs
- SPECIFICATIONS - Overall length: 10 ft 9 in
- SPECIFICATIONS - Platform size (extended): 4 ft 7 in x 12 ft 8 in
- SPECIFICATIONS - Platform size (stowed): 4 ft 7 in x 8 ft 9 in
- SPECIFICATIONS - Controls: Proportional joystick
- SPECIFICATIONS - Tires: 23 in x 8.9 in - 12 non-marking
- SPECIFICATIONS - Max. wind speed: 28 mph
- SPECIFICATIONS - Max. outrigger levelling (side to side): 10°
- SPECIFICATIONS - Raise / lower time: 26 / 30 sec
- SPECIFICATIONS - Stowed height: 8 ft 3 in
- SPECIFICATIONS - Outside turning radius: 15 ft 7 in
- SPECIFICATIONS - Overall width: 4 ft 9 in
- SPECIFICATIONS - Drive system: 4 wheel drive
- SPECIFICATIONS - Inside turning radius: 8 ft 2 in
- SPECIFICATIONS - Max. drive speed (elevated): 0.3 mph
- SPECIFICATIONS - Power options: Bi-energy
- SPECIFICATIONS - Max. drive height: 20 ft 4 in
