SNORKEL ML5I Snorkel Material Lifts
SNORKEL ML5I Snorkel Material Lifts

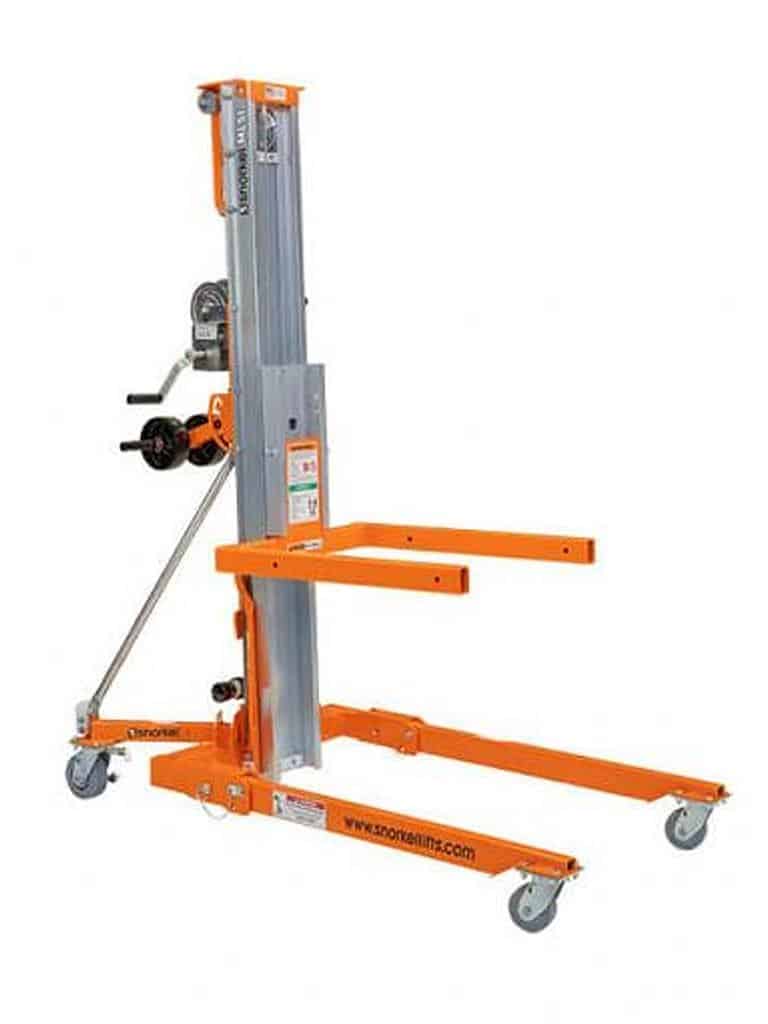

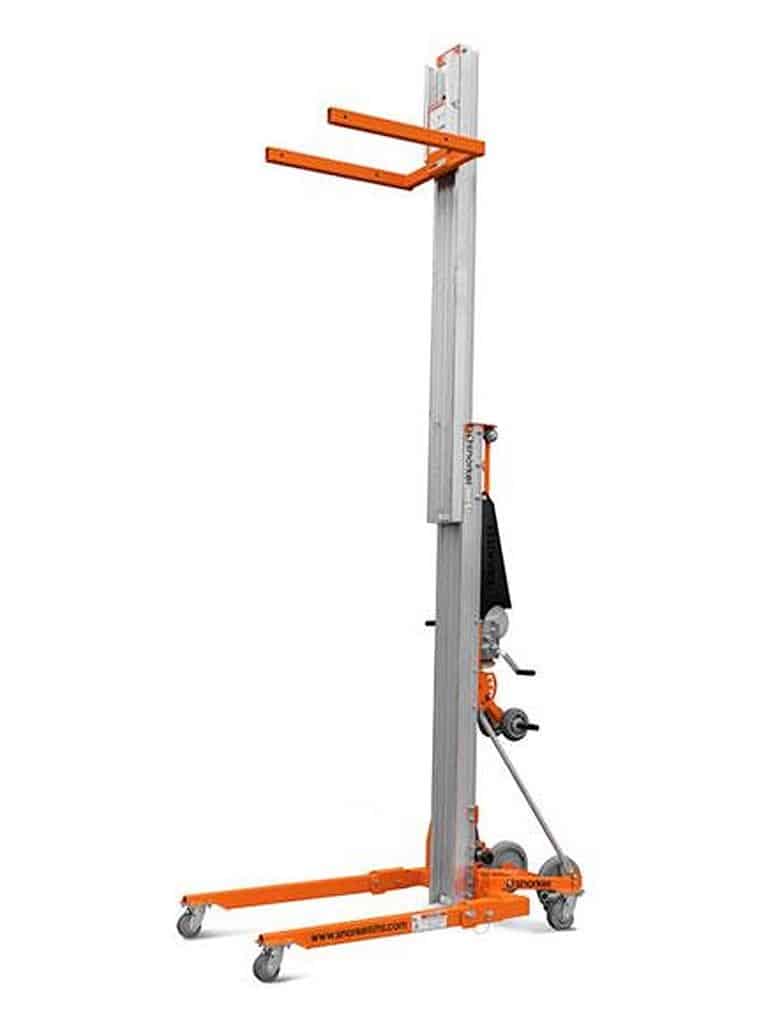

SNORKEL INDUSTRIAL MATERIAL LIFT − ML5I
The ML5I industrial material lift is steadily strong for lifting heavy loads. This high specification lift offers a heavy-duty load capacity and a dual-handle, shift-on-the-fly, two-speed winch for faster loading. Its robust, industrial grade construction can handle the toughest jobsites.
INDUSTRIAL MATERIAL LIFTS
Featuring a dual-handle, shift-on-the-fly, two speed winch as standard, Snorkel’s industrial line of material lifts bring unrivaled durability and reliability to all types of material handling applications. The Snorkel ‘MLI’ range is built tough, yet compact for easy navigation through narrow aisles and in tight spaces. Best-in-class load capacities maximize productivity on the job, while heavy-gauge aluminium extrusions and cast metal cable pulleys ensure a long working life.
STANDARD FEATURES
• Non-marking transport/loading wheels
• Dual handle, two-speed shift-on-the-fly winch
• Metal cable pulleys with sealed bearings
• Heavy-gauge aluminium extrusions
• Heavy-duty, non-marking casters
• Crane attachment point
• Cable guard
• Mast brake
• 2 year parts & labour, 5 year structural warranty
OPTIONS
• Special paint colors
• Adjustable forks
• Fork extensions
• Boom
• Pipe cradle
• Load platform
• Stabilizers with non-marking swivel casters
• Non-marking rear transport wheel package
• Straddle base
• Smart latch
Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
- PERFORMANCE - Max. load capacity (14 in. load center): 1,000 lbs
- WEIGHT - Weight: 197 lbs
- DIMENSIONS - Stowed length: 2 ft 9 in
- PERFORMANCE - Min. load height: 6 in
- DIMENSIONS - Fork length : 30 in
- PERFORMANCE - Winch (low speed): 15 cranks/ft
- PERFORMANCE - Max. load capacity (42. In load center): 350 lbs
- PERFORMANCE - Max. load capacity (24 in. load center): 750 lbs
- DIMENSIONS - Lift height – forks down: 4 ft 8 in
- DIMENSIONS - Fork width (outside): 23 in
- DIMENSIONS - Lift height – forks up: 6 ft 5 in
- DIMENSIONS - Stowed height : 6 ft 3 in
- DIMENSIONS - Operating length: 5 ft 2 in
- PERFORMANCE - Winch (high speed): 4 cranks/ft
- DIMENSIONS - Stowed width: 30.5 in
- DIMENSIONS - Ground clearance: 2.5 in
- DIMENSIONS - Stabilizer width: 5 ft 4 in
