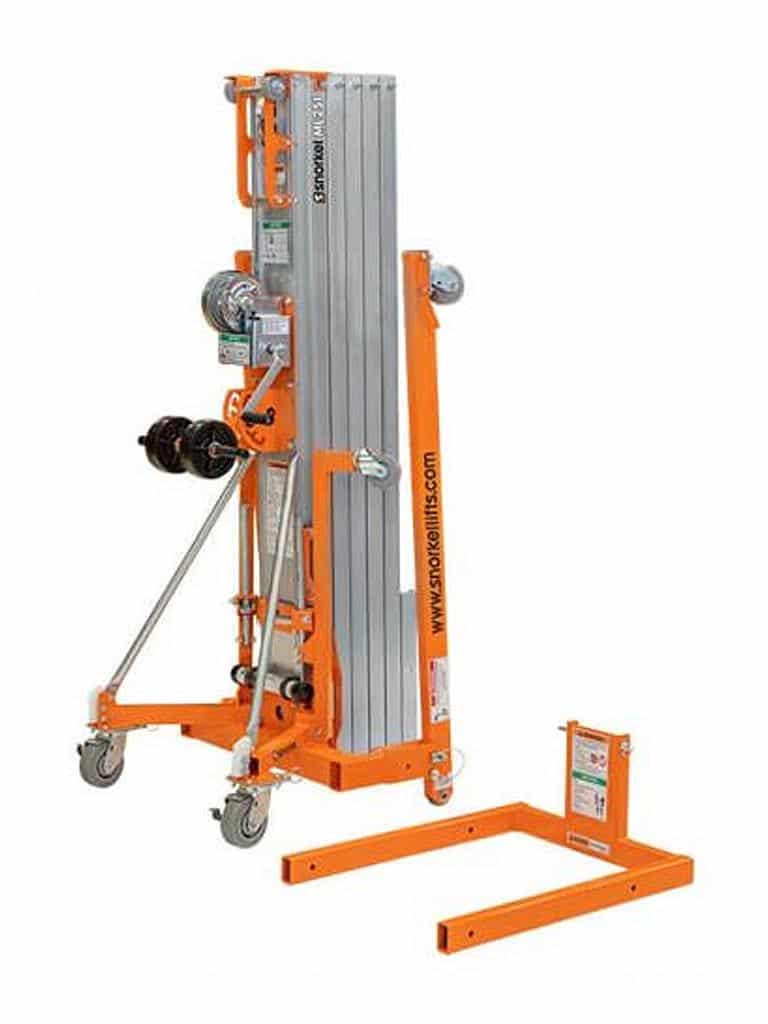

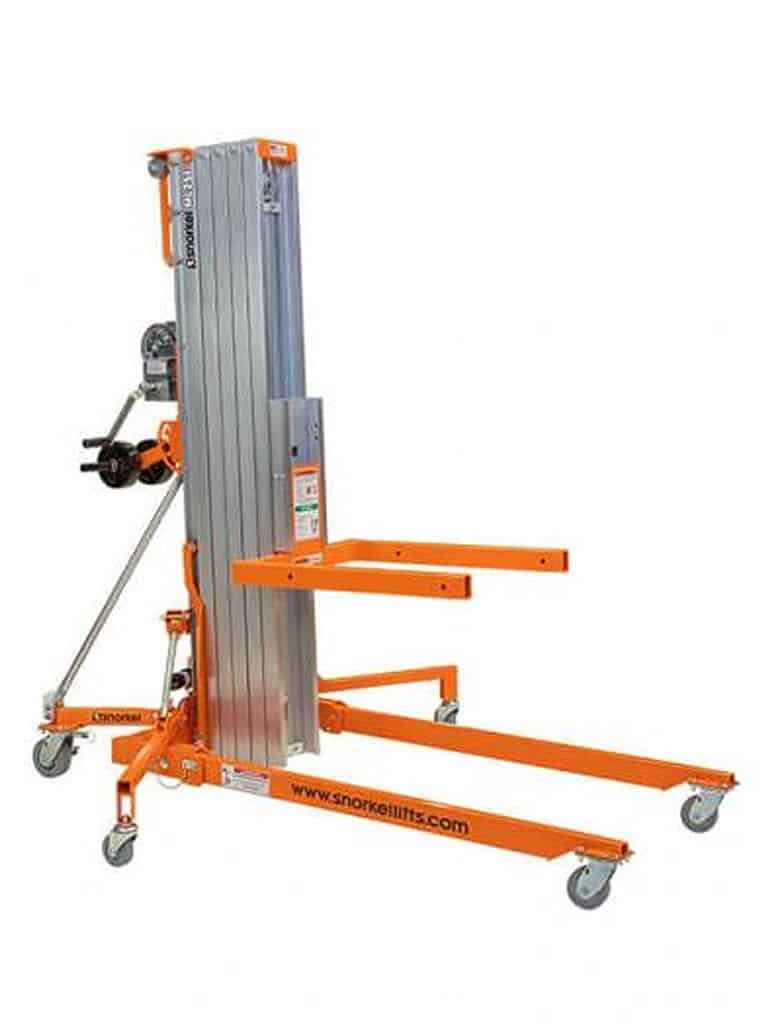

SNORKEL INDUSTRIAL MATERIAL LIFT − ML25I
The ML25I industrial material lift is dependably rugged. This robust material lift is designed to withstand the demands of the rental industry. Its reliable construction is also narrow enough to fit through standard doorways. A spring-actuated locking system provides quick and easy deployment and stowage.
INDUSTRIAL MATERIAL LIFTS
Featuring a dual-handle, shift-on-the-fly, two speed winch as standard, Snorkel’s industrial line of material lifts bring unrivaled durability and reliability to all types of material handling applications. The Snorkel ‘MLI’ range is built tough, yet compact for easy navigation through narrow aisles and in tight spaces. Best-in-class load capacities maximize productivity on the job, while heavy-gauge aluminium extrusions and cast metal cable pulleys ensure a long working life.
STANDARD FEATURES
• Stabilizers with non-marking swivel casters
• Dual handle, two-speed shift-on-the-fly winch
• Metal cable pulleys with sealed bearings
• Heavy-gauge aluminium extrusions
• Heavy-duty, non-marking casters
• Crane attachment point
• Cable guard
• Mast brake
• 2 year parts & labour, 5 year structural warranty
OPTIONS
• Special paint colors
• Adjustable forks
• Fork extensions
• Boom
• Pipe cradle
• Load platform
• Non-marking rear wheel transport package
• Smart latch
Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
- DIMENSIONS - Stabilizer width: 64 in
- PERFORMANCE - Max. load capacity (14 in. load center): 600 lbs
- PERFORMANCE - Max. load capacity (42. In load center): 200 lbs
- DIMENSIONS - Stowed length: 6 ft 5 in
- WEIGHT - Weight: 368 lbs
- DIMENSIONS - Operating length: 6 ft 3 in
- PERFORMANCE - Max. load capacity (24 in. load center): 400 lbs
- DIMENSIONS - Stowed height : 6 ft 2 in
- DIMENSIONS - Ground clearance: 2.5 in
- PERFORMANCE - Min. load height: 6 in
- PERFORMANCE - Winch (high speed): 4 cranks/ft
- DIMENSIONS - Lift height – forks up: 24 ft 11 in
- PERFORMANCE - Winch (low speed): 15 cranks/ft
- DIMENSIONS - Fork length : 30 in
- DIMENSIONS - Fork width (outside): 23 in
- DIMENSIONS - Lift height – forks down: 23 ft 2 in
- DIMENSIONS - Stowed width: 30.5 in
