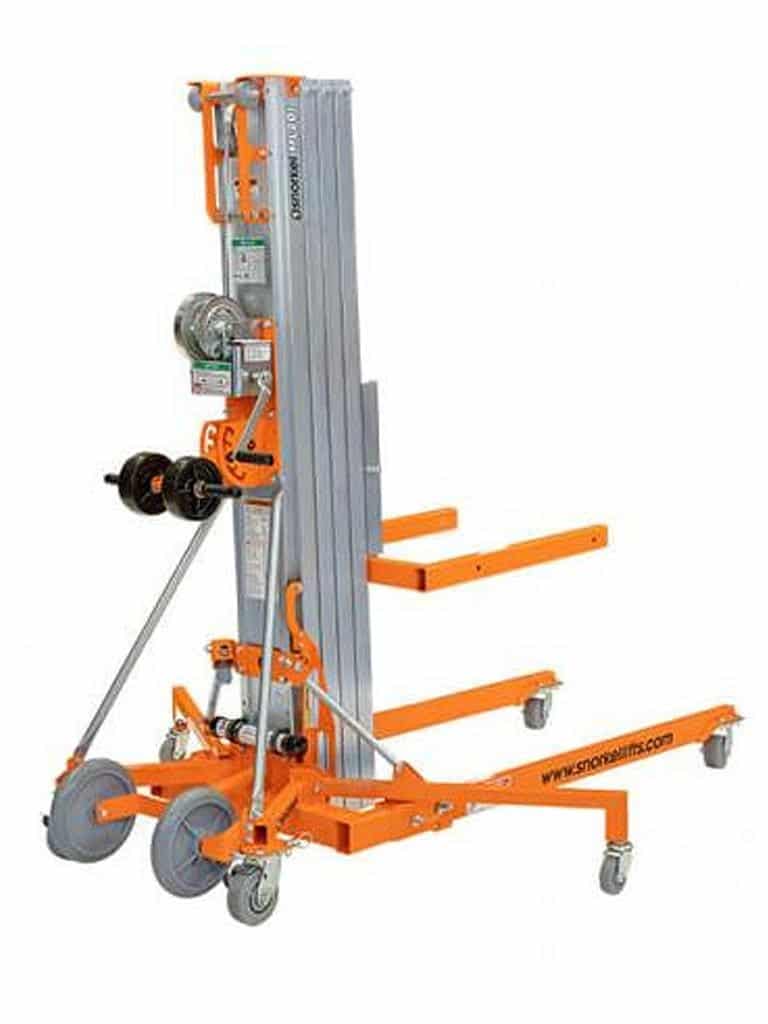

SNORKEL INDUSTRIAL MATERIAL LIFT − ML20I
The ML20I industrial material lift is readily resilient for every job. Capable of handling industrial-strength tasks, this high specification material lift is also narrow in design to maneuver through standard doorways. Easily able to handle heavy-duty load capacities, the ML20I features stabilizers with non-marking swivel casters as standard.
INDUSTRIAL MATERIAL LIFTS
Featuring a dual-handle, shift-on-the-fly, two speed winch as standard, Snorkel’s industrial line of material lifts bring unrivaled durability and reliability to all types of material handling applications. The Snorkel ‘MLI’ range is built tough, yet compact for easy navigation through narrow aisles and in tight spaces. Best-in-class load capacities maximize productivity on the job, while heavy-gauge aluminium extrusions and cast metal cable pulleys ensure a long working life.
STANDARD FEATURES
• Stabilizers with non-marking swivel casters
• Dual handle, two-speed shift-on-the-fly winch
• Metal cable pulleys with sealed bearings
• Heavy-gauge aluminium extrusions
• Heavy-duty, non-marking casters
• Crane attachment point
• Cable guard
• Mast brake
• 2 year parts & labour, 5 year structural warranty
OPTIONS
• Special paint colors
• Adjustable forks
• Fork extensions
• Boom
• Pipe cradle
• Load platform
• Non-marking rear wheel transport package
• Smart latch
Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
- DIMENSIONS - Lift height – forks down: 18 ft 6 in
- DIMENSIONS - Stowed height : 6 ft 2 in
- WEIGHT - Weight: 332 lbs
- DIMENSIONS - Stowed width: 30.5 in
- DIMENSIONS - Ground clearance: 2.5 in
- PERFORMANCE - Max. load capacity (14 in. load center): 750 lbs
- DIMENSIONS - Operating length: 6 ft 3 in
- DIMENSIONS - Lift height – forks up: 20 ft 3 in
- PERFORMANCE - Winch (low speed): 15 cranks/ft
- DIMENSIONS - Stowed length: 6 ft 5 in
- DIMENSIONS - Fork length : 30 in
- DIMENSIONS - Stabilizer width: 64 in
- PERFORMANCE - Winch (high speed): 4 cranks/ft
- DIMENSIONS - Fork width (outside): 23 in
- PERFORMANCE - Min. load height: 6 in
- PERFORMANCE - Max. load capacity (42. In load center): 300 lbs
- PERFORMANCE - Max. load capacity (24 in. load center): 550 lbs
