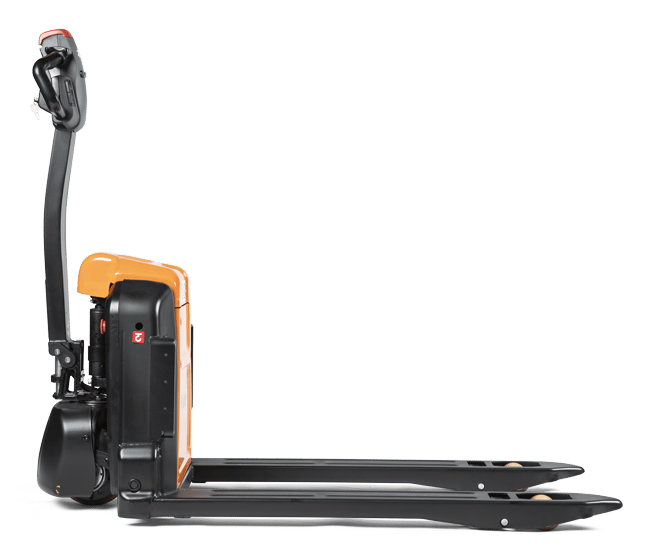

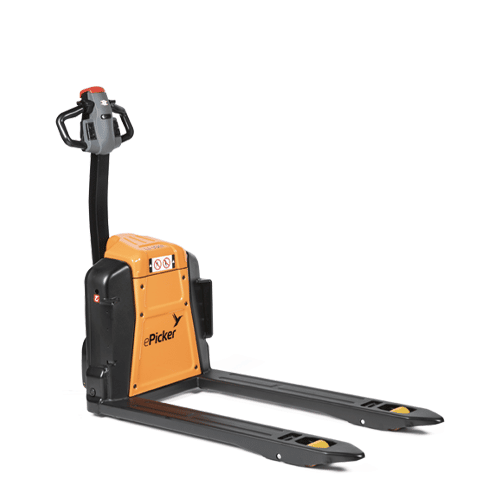

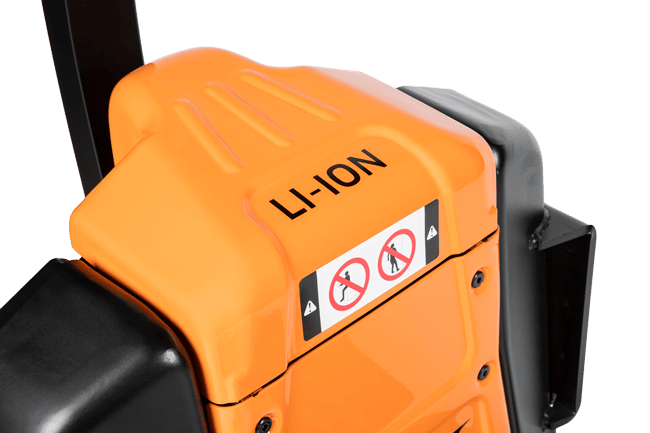

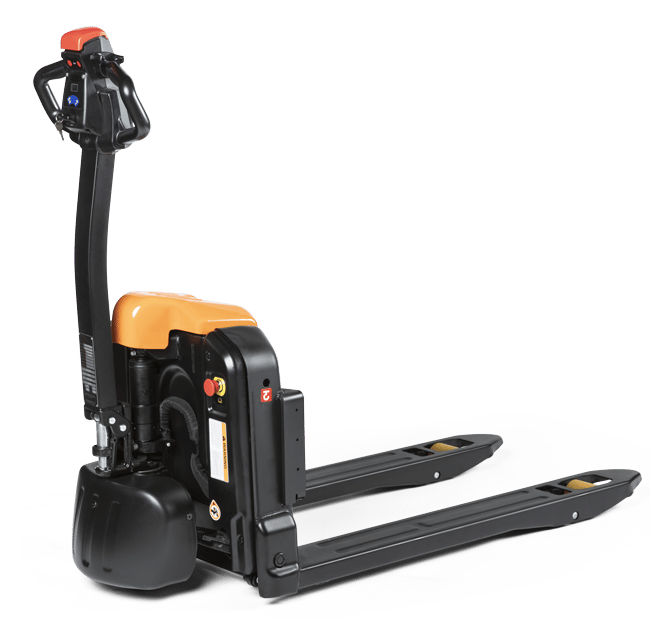

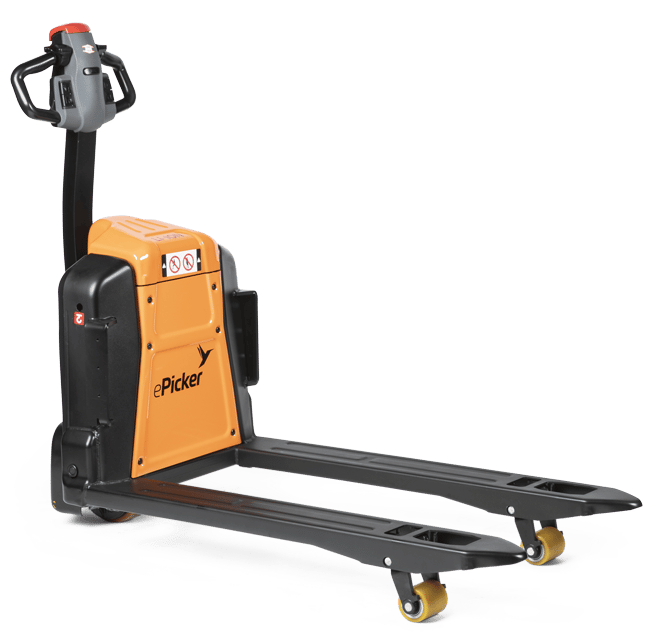

The EPT20L Lithium-ion powered pallet truck takes material handling to the next level and matches the right tool for maximum productivity and value. The EPT20L features a small power head at just 17” long, making it an excellent choice for lift gate delivery fleets, C-store deliveries, and heavy-duty warehouse and manufacturing applications. With a swappable lithium battery, 48V power and a compact design, the EPT20L offers users a better way to get the job done right, in record time.
- : 390 lbs. with battery

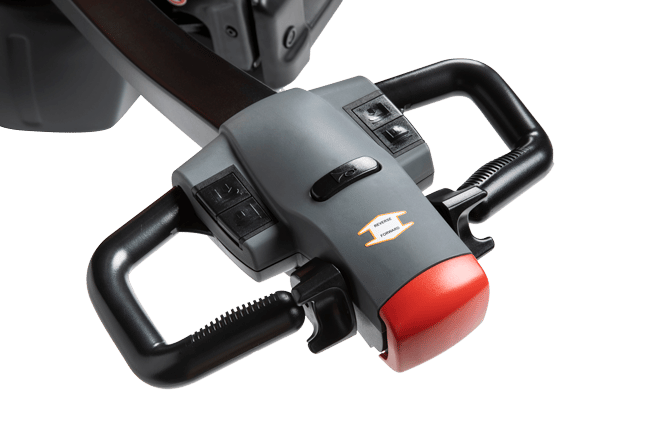

- Control Head: Travel, lift & lower functions, and creep speed controls are located on the ergonomic control head. All operator controls are accessible without having to lift one's hand from the handle grips. The control head is designed to allow for easy operation with either hand and includes a belly button reversing switch, dual butterfly travel controls, horn, battery discharge indicator, wake-up buttons, and key switch. The low mounted tiller arm offers excellent operator comfort and minimum steering effort.
- Drive and Travel Conrols: 48-volt Curtis travel control with permanent magnet drive motor. Variable speed from 0 mph to 3.4 mph empty Variable speed from 0 mph to 3.1 mph loaded
- Other Standard Features: • Headlights and brake lights • Turn signals & back up alarm • Solid pneumatic tires • Integral sideshift • USB accessory charging port • Reverse travel grab handle with horn • 480V three phase or 120V charger
- Electrical: Water resistant connectors and shrouded wiring harness supply power reliably to components. System includes an emergency power disconnect and covered on-board dock for the Easy Exchange HD Battery.
- Hydraulics: DC pump and chrome plated cylinder provides for smooth and efficient lifting.
- Serviceability: Removable covers and modular design of components provides for easy maintenance with simple hand tools. Two-piece drive wheel reduces complexity of tire changes.
- Brakes: Electromagnetic brake provides good stopping power when handle is upright or lowered beyond the operating range.

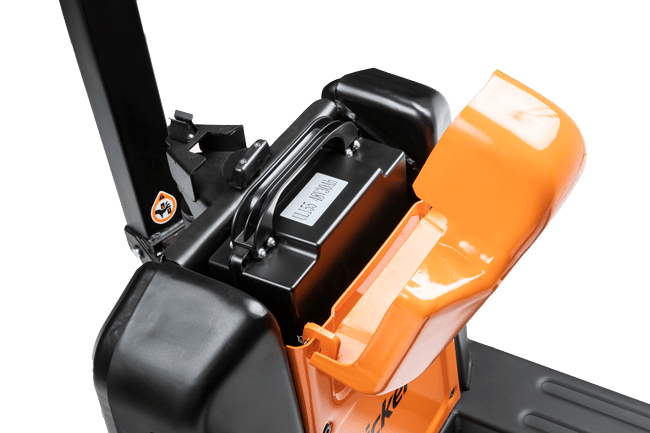

- Duty Cycle: Revolutionary Easy Exchange HD Battery delivers up to 3.0 hours of operation and can be fully charged within 1.5 hours. Optional extra batteries can be purchased to extend run time or to serve as a reliable back-up.
