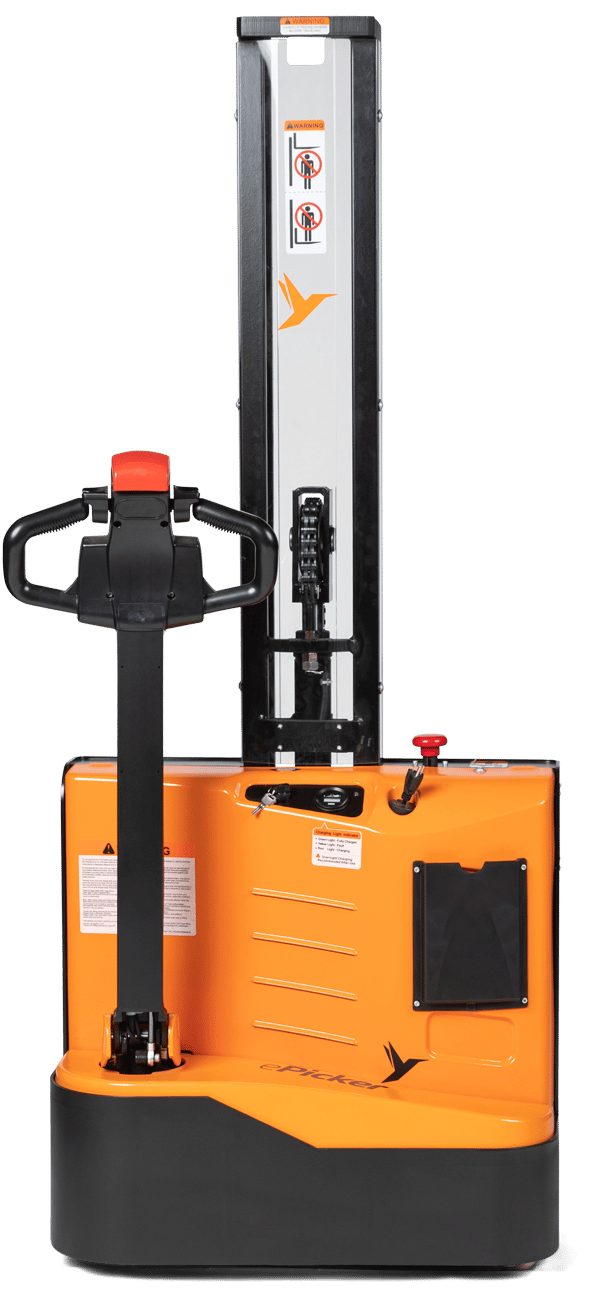

The ePicker Forkover Stackers are designed to economically transport and lift pallets or skids in the tightest area possible. The EP10-62R is a class 3 stacker, an economical mobile work platform designed to maneuver in the tightest spaces, allowing it to operate in manufacturing areas less than seven feet tall.
Whether you need one vertical truck or need to supplement an existing fleet, these ePicker stackers offer exceptional value. Why ride when you can walk to get the job done for less with an ePicker Forkover Stacker.

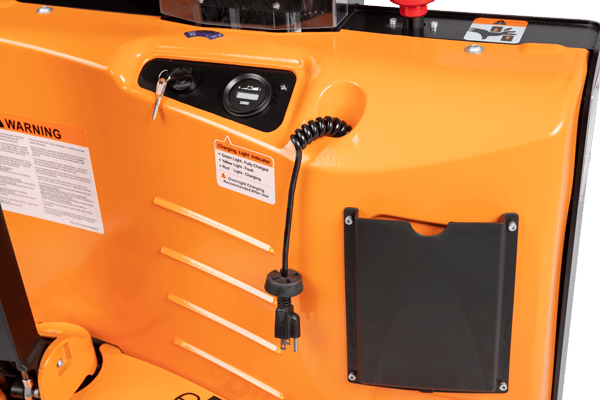

- : 24V maintenance free batteries with 110V smart charger

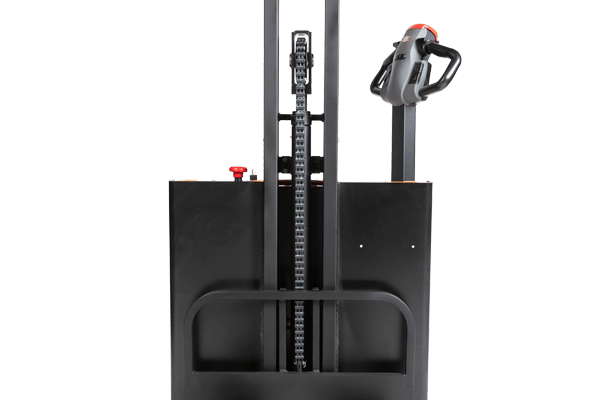

- Frame & Masts: Unitized all steel construction for added durability. Non-telescoping mono mast with single lifting chain, adjustable mast rollers. Chrome plated lift cylinder provides smooth lift/lower operation and long life. Fully enclosed wheel guard and flush mounted axles prevent wheel and axle damage during normal use.

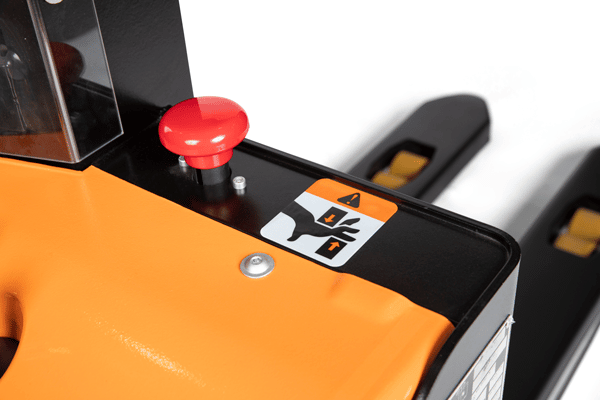

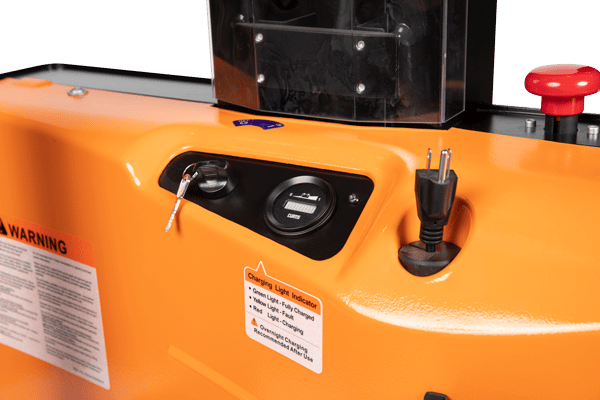

- Electrical: Curtis travel control provides smooth stepless travel. Quick disconnect EPD power cut off and battery discharge indicator are standard equipment.

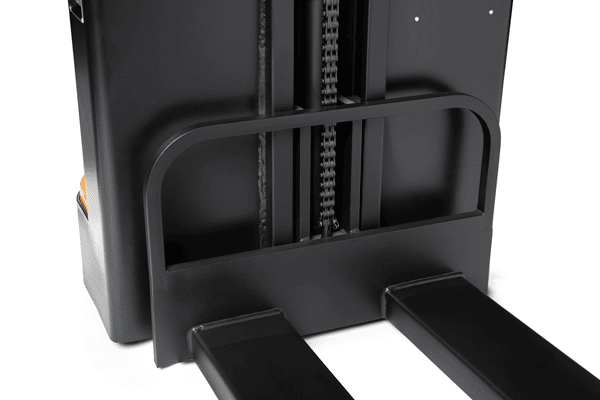

- Forkover Rigid Carriage: Forkover style forks are fixed on a rigid carriage and nest over the straddle legs. Standard fork is 45” long x 6.75” wide x 2.25” thick.
- Hydraulics: Lift cylinder is hard chrome. Permanent magnet pump motor and chrome plated lift cylinder provides smooth lifting and lowering. Pump unit includes DC motor, solenoid, and gear pump.
- Brakes: Electro-magnetic disc brake.

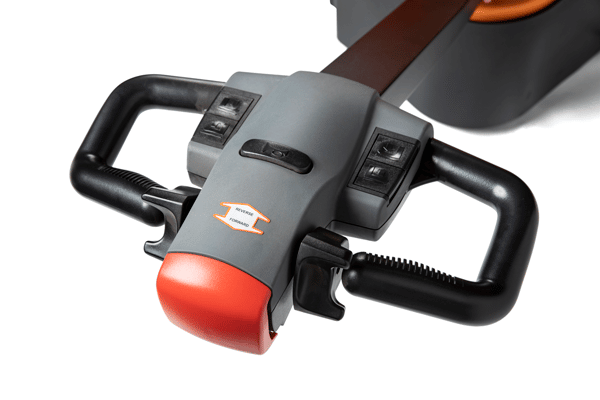

- Tiller Arm Control: Offset steering arm provides excellent line of sight for operators. Right angle stacking in aisles as narrow as 60”. Travel, lift, and lower functions are located in the ergonomic operator handle. All operator controls are accessible without having to lift the hand from the handle. Angle grips are designed to allow easy operation with either hand. Wrap around guard, reversing switch, thumb control, and horn are standard. Low mounted tiller arm offers excellent operator comfort and minimum steering effort.
- Tiller Arm Control: Forkover style forks are fixed on a rigid carriage and nest over the straddle legs. Standard fork is 45” long x 6.75” wide x 2.25” thick.
- Drive: 24-Volt permanent magnet DC drive motor with rare earth neodymium magnets increases efficiency and duty cycle.
- Serviceability: Removable one piece power head cover allows for easy maintenance.
