KARCHER

KÄRCHER TRK2500 HDS 4.7/35 — ALL IN ONE MOBILE CLEANING

Kärcher’s TRK-2500 HDS 4.7/35 pressure washer trailer package includes the TRK-200 trailer, HDS 4.7/35 Pe Cage pressure washer, mounting kit, battery and high and low-pressure hose reels. This package is rugged, affordable, versatile, and easy to ship and store. The TRK-2500 is made of rugged 10-gauge steel. The wheel and axle assembly features leaf-spring suspension of up to 3,500 lbs. The 39-inch tongue features a swing-away hinge that saves on storage space. Includes a high-density, polyethylene 200-gallon water tank with a 12-inch access port, 1 1/2-inch drain valve, 3/4-inch float valve and a 50-mesh inlet filter. A 3-way ball valve simplifies switching of the water flow from the holding tank to a faucet.

Trailers also include an electric start engine and battery, 1,000 lb. swivel jack with a 2-inch ball coupler for quick and easy hook up of the trailer, two 5/16-inch chains for additional safety, and a lighted license plate holder and recessed tail lights.

SMART FEATURES
• Electrical wiring recessed within tubular frame
• Lighted license plate holder and recessed tail lights
• 1,000 lb. swivel jack with a 2-inch ball coupler for quick and easy hook up of the trailer

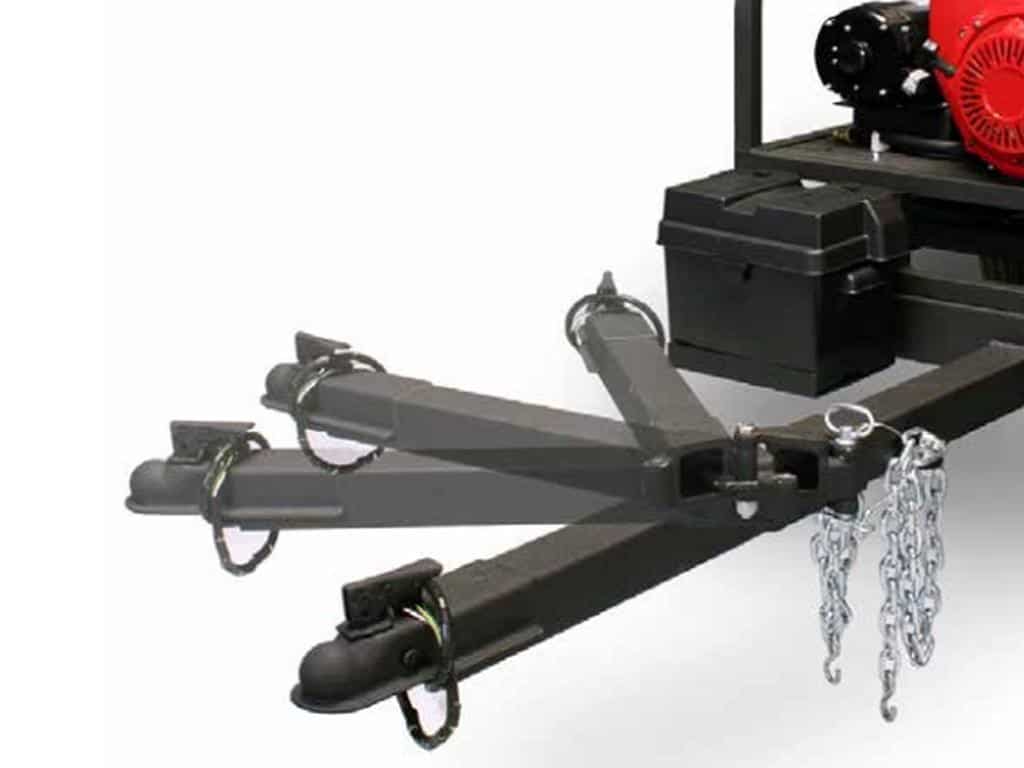

• Swing-away hinge makes for easy storing and shipping.
• 3-way ball valve for easy switching of the water flow from the holding tank to a faucet
• High-density, polyethylene 200-gallon water tank with a 12-inch access port, 1 1/2-inch drain valve, 3/4-inch float valve and a 50-mesh inlet filter; and two 5/16-inch chains for additional safety

Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.

KÄRCHER HDS 3.5/20 EA CAGE — JALAPAO SERIES9462 HEATING MODULE — DELIVERS A CLEANING PUNCH

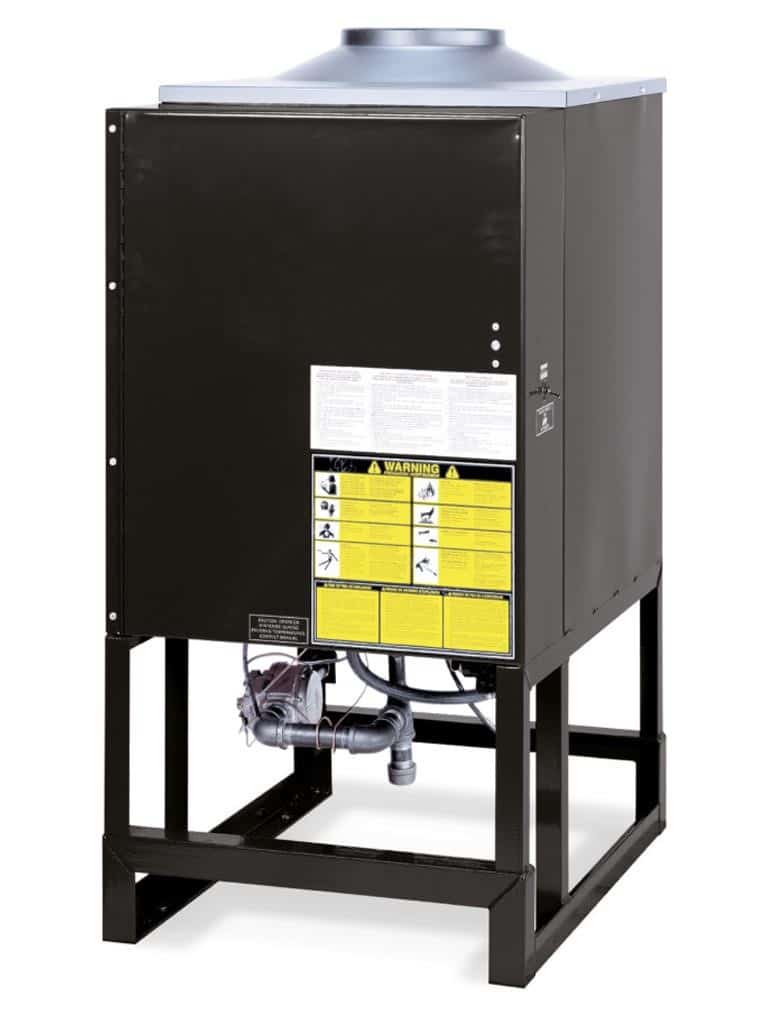

The 9400-heating module provides the flexibility to “convert” a cold-water pressure washer into a hot water unit. By attaching the heating module to a cold-water pressure washer, the pressurized water is now heated to produce all the benefits of hot water cleaning. Uses fuel oil or diesel to heat the water using a high-efficiency, vertical heating coil. Equipped with a flow switch to control the burner.

POWERFUL AND DURABLE
• High-efficiency burner with transformer for years of reliable and affordable operation; produces up to 920,000 BTU.
• Rugged, heavy-duty steel cabinet painted with an epoxy powder-coat finish for all-weather protection
• Multiple fuel-burner types available: Diesel, Kerosene, Home Heating Oil, Natural Gas, LP Gas (optional)

SMART FEATURES
• Effective heating of up to 10 GPM provides supplemental hot water for cold water pressure washers.
• Helpful trilingual labels with operating instructions in English, Spanish and French for owner and operator protection.
• Many uses: fleet, oilfield, and food processing applications
• Designed to attach to cold water pressure washers with cleaning power of 6 to 10 GPM and up to 3200 PSI.
• All models operate on 115V/ 1PH and are ETL safety certified.

Similar models may be shown in addition to the featured model. Equipment may be shown with options.

Specifications are subject to change without prior notice.

KÄRCHER 9460 HEATING MODULE — DELIVERS A CLEANING PUNCH

The 9460-heating module provides the flexibility to “convert” a cold-water pressure washer into a hot water unit. By attaching the heating module to a cold-water pressure washer, the pressurized water is now heated to produce all the benefits of hot water cleaning. Uses fuel oil or diesel to heat the water using a high-efficiency, vertical heating coil. Equipped with a flow switch to control the burner.

POWERFUL AND DURABLE
• High-efficiency burner with transformer for years of reliable and affordable operation; produces up to 920,000 BTU.
• Rugged, heavy-duty steel cabinet painted with an epoxy powder-coat finish for all-weather protection
• Multiple fuel-burner types available: Diesel, Kerosene, Home Heating Oil, Natural Gas, LP Gas (optional)

SMART FEATURES
• Effective heating of up to 10 GPM provides supplemental hot water for cold water pressure washers.
• Helpful trilingual labels with operating instructions in English, Spanish and French for owner and operator protection.
• Many uses: fleet, oilfield, and food processing applications
• Designed to attach to cold water pressure washers with cleaning power of 6 to 10 GPM and up to 3200 PSI.
• All models operate on 115V/ 1PH and are ETL safety certified.

Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.

KÄRCHER 9452 HEATING MODULE — DELIVERS A CLEANING PUNCH

The 9452-heating module provides the flexibility to “convert” a cold-water pressure washer into a hot water unit. By attaching the heating module to a cold-water pressure washer, the pressurized water is now heated to produce all the benefits of hot water cleaning. Uses fuel oil or diesel to heat the water using a high-efficiency, vertical heating coil. Equipped with a flow switch to control the burner.

POWERFUL AND DURABLE
• High-efficiency burner with transformer for years of reliable and affordable operation; produces up to 920,000 BTU.
• Rugged, heavy-duty steel cabinet painted with an epoxy powder-coat finish for all-weather protection
• Multiple fuel-burner types available: Diesel, Kerosene, Home Heating Oil, Natural Gas, LP Gas (optional)

SMART FEATURES
• Effective heating of up to 10 GPM provides supplemental hot water for cold water pressure washers.
• Helpful trilingual labels with operating instructions in English, Spanish and French for owner and operator protection.
• Many uses: fleet, oilfield, and food processing applications
• Designed to attach to cold water pressure washers with cleaning power of 6 to 10 GPM and up to 3200 PSI.
• All models operate on 115V/ 1PH and are ETL safety certified.

Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.

KÄRCHER HDS 2.8/25 P CAGE — HOT WATER PRESSURE WASHER LIBERTY SERIES

RUGGED AND PORTABLE CLEANING POWER

These portable gas-powered hot water pressure washers are built using heavy-duty components and a rugged steel chassis to withstand the most rigorous conditions. Their compact frame design and tubed pneumatic wheels provide easy maneuvering over all types of terrain. Each unit is ETL certified and comes with a leak free Schedule 80 heating coil surrounded by a standard stainless-steel wrap.

POWERFUL AND DURABLE
• Industrial-grade Honda or Kohler engines with three-year warranty; two models with electric-start standard.
• Efficient burner with transformer for years of reliable and affordable operation.
• Industrial-grade, tri-plunger, oil-bath, direct- drive, Kärcher pump with 7-year warranty.
• 50 ft. of durable, wire braid hose rated for 3000 or 4500 PSI; with hose guard for burst protection.
• Heavy-gauge 11/4” steel frame with powder coat finish for all-weather protection.
• Power platform cushioned on 4 vibration isolators for smoother operation and long-life protection to frame and components.

SMART FEATURES
• Four conveniently mounted, quick-couple spray nozzles for varying fan spray.
• Safety relief valve attached to discharge side for protection against excess pressure build up.
• Rust-free, 6-gallon polyethylene diesel fuel tank for hours of operation without interruption.
• EASY! Force trigger gun with cruise control like technology uses its own recoil force to hold the trigger down – no more sore hands after hours of use.
• Water resistant control box with burner on/off switch, adjustable thermostat and hour meter.
• Thermal pump saver valve protects against hot-water damage by venting recirculated water.
• Insulated, dual-lance variable pressure wand with quick-couple connectors for easy attachment of high-pressure spray nozzles.

Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.

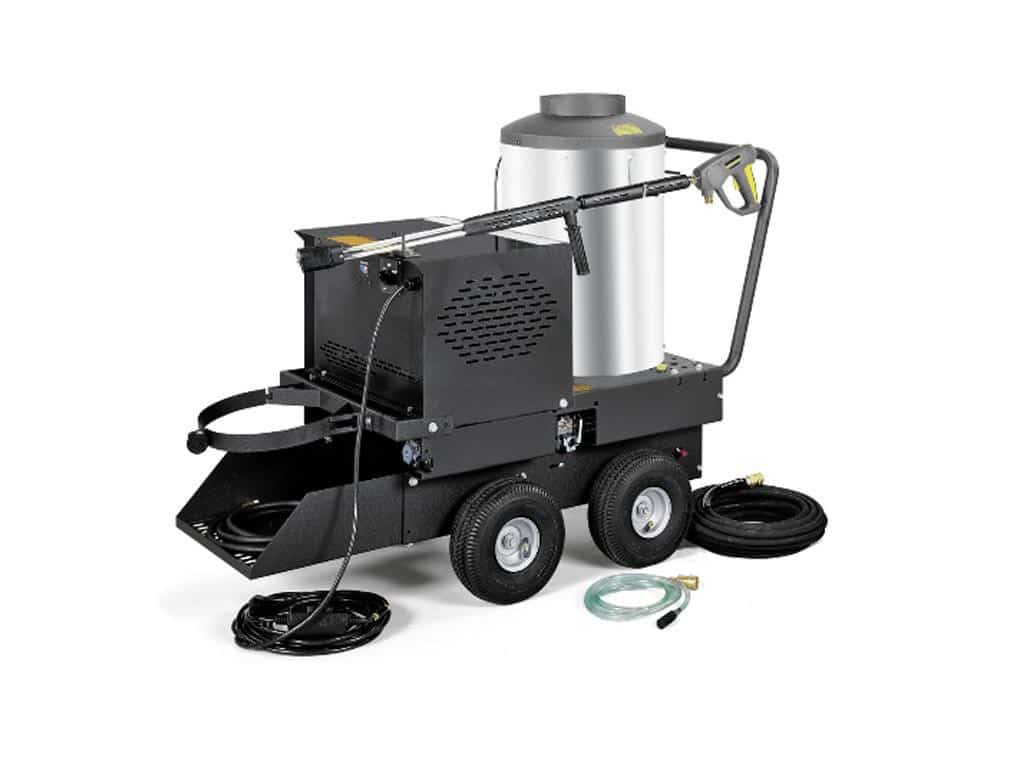

KÄRCHER VHP3-20024A — PRESSURE WASHER

Looking for a heavy-duty pressure washer that can handle the dirt and grime indoors and out? Then the versatile VHP is the right machine for the task. Available in both 120V and 230V configurations, this hot water pressure washer features cleaning power up to 2.5 GPM and 2000 PSI. And, since the VHP is built with tubed pneumatic tires, this heavy-duty series delivers power wherever the job takes you. It is designed for vapor type propane only.

POWERFUL AND DURABLE
• Extra-durable heating coil is made of leak-free, cold-rolled steel pipe and features a 5-year warranty
• A rugged 10 gauge steel chassis with polyester powder coat finish
• Belt-driven Kärcher pump with a 7-year warranty

MOBILITY
• Four tubed pneumatic tires provide excellent maneuverability
• Rack for 10 gallon tank

EASY!FORCE TRIGGER GUN
• EASY!Force gun with cruise control like technology – uses its own recoil force to hold the trigger down – so, no more sore hands after hours of use

Specifications are subject to change without prior notice. Similar models may be shown in addition to the featured model. Equipment may be shown with options.

KÄRCHER VHP2-15024D — PRESSURE WASHER

Looking for a heavy-duty pressure washer that can handle the dirt and grime indoors and out? Then the versatile VHP is the right machine for the task. Available in both 120V and 230V configurations, this hot water pressure washer features cleaning power up to 2.5 GPM and 2000 PSI. And, since the VHP is built with tubed pneumatic tires, this heavy-duty series delivers power wherever the job takes you. It is designed for vapor type propane only.

POWERFUL AND DURABLE
• Extra-durable heating coil is made of leak-free, cold-rolled steel pipe and features a 5-year warranty
• A rugged 10 gauge steel chassis with polyester powder coat finish
• Belt-driven Kärcher pump with a 7-year warranty

MOBILITY
• Four tubed pneumatic tires provide excellent maneuverability
• Rack for 10 gallon tank

EASY!FORCE TRIGGER GUN
• EASY!Force gun with cruise control like technology – uses its own recoil force to hold the trigger down – so, no more sore hands after hours of use

Specifications are subject to change without prior notice. Similar models may be shown in addition to the featured model. Equipment may be shown with options.

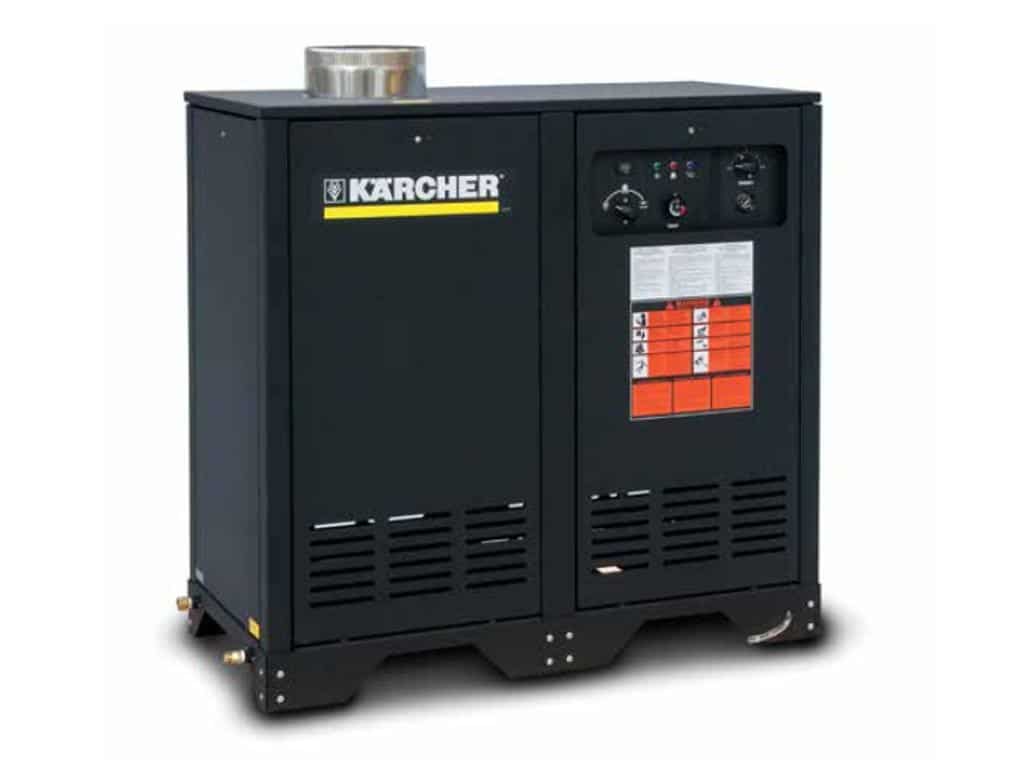

KÄRCHER HDS 6.3/32 EC ST — HOT WATER, NATURAL GAS OR LP-HEATED PRESSURE WASHER

The Kärcher Sechura natural gas and LP-heated cabinet pressure washer delivers up to 9.5 gpm at 3000 psi of industrial power. Built in the U.S.A., each model is constructed with anodized structural rivets, industrial motors and Kärcher pumps that are backed by a 7-year warranty. All models are ETL certified to UL and CSA safety standards.

Equipment may be shown with options. Similar models may be shown in addition to the featured model. Specifications are subject to change without prior notice.

KÄRCHER HDS 6.3/32 EB ST — HOT WATER, NATURAL GAS OR LP-HEATED PRESSURE WASHER

The Kärcher Sechura natural gas and LP-heated cabinet pressure washer delivers up to 9.5 gpm at 3000 psi of industrial power. Built in the U.S.A., each model is constructed with anodized structural rivets, industrial motors and Kärcher pumps that are backed by a 7-year warranty. All models are ETL certified to UL and CSA safety standards.

Equipment may be shown with options. Similar models may be shown in addition to the featured model. Specifications are subject to change without prior notice.

KÄRCHER HDS 4.8/30 EH ST — HOT WATER, NATURAL GAS OR LP-HEATED PRESSURE WASHER

The Kärcher Sechura natural gas and LP-heated cabinet pressure washer delivers up to 9.5 gpm at 3000 psi of industrial power. Built in the U.S.A., each model is constructed with anodized structural rivets, industrial motors and Kärcher pumps that are backed by a 7-year warranty. All models are ETL certified to UL and CSA safety standards.

Equipment may be shown with options. Similar models may be shown in addition to the featured model. Specifications are subject to change without prior notice.
