KARCHER

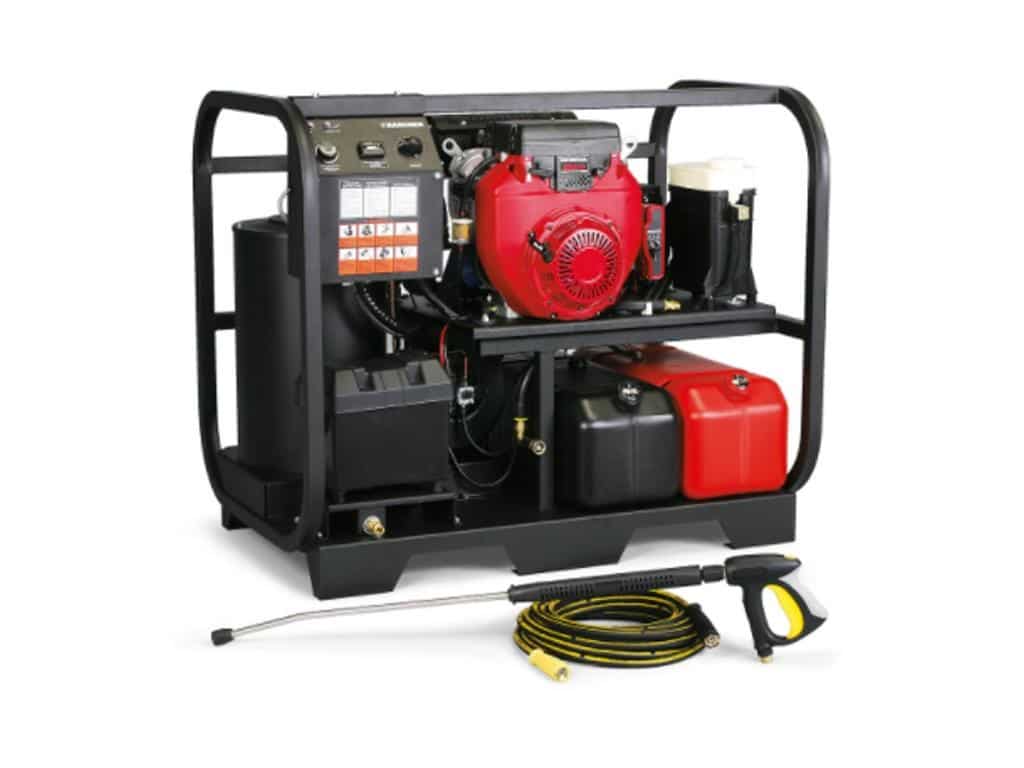

KÄRCHER HDS 3.9/30 Pe CAGE — JALAPAO SERIES

RUGGED GASOLINE OR DIESEL-POWERED PRESSURE WASHER
Kärcher Jalapao series oil-fired skids are the workhorses of the pressure washer industry. Delivering up to 3.9 GPM of hot water at up to 3,000 PSI, these rugged gas- and diesel-powered machines are built on an open frame using heavy-gauge 1-1/4” powder coated steel and are ideal for mounting to a truck or on a trailer. The electric-start engine and powerful belt-drive Kärcher KT pump (with 7-year warranty) are isolated from the rest of the machine on a shock-mounted sub-frame to reduce vibration. Steam combination comes standard. All models are ETL certified.

POWERFUL AND DURABLE
• Reliable, super-duty gasoline-or diesel-powered engines with electric start.
• High-output burner with transformer for years of reliable and affordable operation.
• Industrial-grade, tri-plunger, oil-bath, direct- drive, Kärcher pump with 7-year warranty.
• 50 ft. of durable, wire braid hose with extended guard for burst protection.
• Heavy-gauge 11/4” steel frame with powder coat finish for all-weather protection.
• Power platform cushioned on 8 vibration isolators for smoother operation and long-life protection to frame and components.
• VRT100 unloader provides a long-life span.
• Winco generator proven to function under the most demanding working conditions.

SMART FEATURES
• High pressure rupture disc rated to 7000 PSI to protect user against injury.
• Cast iron pulley system with totally enclosed, OSHA-compliant belt guard, and easy-to-adjust TrueTrak belt tension.
• Insulated, high-pressure trigger gun for hours of fatigue-free cleaning.
• 2.5 gal. float tank for high-pressure application of soap and to prevent pump cavitation.
• Water resistant control box with burner on/off switch, adjustable thermo stat and hour meter.
• Easy and ergonomic access to nozzles.
• EASY! Force trigger gun with cruise control like technology uses its own recoil force to hold the trigger down – so, no more sore hands after hours of use

Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.

KÄRCHER HDS 5.5/35 PE CAGE — BARDENAS SERIES PRESSURE WASHER

DURABILITY AND PERFORMANCE ANYWHERE NEEDED
The Bardenas Series is a rugged, skid-mounted hot water pressure washer designed for optimum cleaning performance in remote locations. This model features Kärcher’s unique compact 12V downdraft burner system which is more than 92% efficient, resulting in better heat transfer using much less fuel. This hot water pressure washer features belt-drive crankcase-style pumps, rugged frame construction, reliable belt-drive crankcase, low-fuel cutoff, and a steam stage and anti-scaling system. Certified to UL and CSA safety standards.

POWERFUL AND DURABLE
• Industrial-duty, tri-plunger, oil-bath, belt-drive Kärcher KT pump with 7-year warranty, brass pump head, and Tru-Trak belt adjustments; operates at a low RPM for low-maintenance operation and long life.
• Heavy-gauge 11/4” steel frame with powder coat finish for all-weather protection; with vibration isolators and forklift guides.
• Reliable gas-powered engines with electric start.
• Proprietary scale inhibiting system prevents build-up of mineral deposits inside the coil.
• 11-gallon polyethylene diesel and gasoline tanks for hours of uninterrupted operation.
• Warning lights monitor fuel and scale inhibitor levels; low-fuel shut-off protects fuel pump.

SMART FEATURES
• Kärcher’s 92% efficient top-fired burner delivers more heat from less fuel for the lowest operating costs in the industry.
• Detergent metering valve allows for infinitely variable application of soap while washing in high-pressure mode.
• 50’ Kärcher high-pressure steam hose rated for 311°F connects to the gun with an integrated swivel connection.
• Infinitely variable operating pressure, water volume, temperature control, and detergent metering.
• Unsurpassed Kärcher safety features include pressure switches, rupture disk, low-water and low-fuel protection that shuts down burner when incoming water and fuel are insufficient or interrupted.
• Ergonomically designed soft-grip Easy Press trigger gun minimizes operator fatigue.
• EASY! Force gun with cruise control like technology – uses its own recoil force to hold the trigger down – so, no more sore hands after hours of use.

Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.

KÄRCHER HDS 3.5/35 Pe CAGE — HOT WATER PRESSURE WASHER LIBERTY SERIES

RUGGED AND PORTABLE CLEANING POWER

These portable gas-powered hot water pressure washers are built using heavy-duty components and a rugged steel chassis to withstand the most rigorous conditions. Their compact frame design and tubed pneumatic wheels provide easy maneuvering over all types of terrain. Each unit is ETL certified and comes with a leak free Schedule 80 heating coil surrounded by a standard stainless-steel wrap.

POWERFUL AND DURABLE
• Industrial-grade Honda or Kohler engines with three-year warranty; two models with electric-start standard.
• Efficient burner with transformer for years of reliable and affordable operation.
• Industrial-grade, tri-plunger, oil-bath, direct- drive, Kärcher pump with 7-year warranty.
• 50 ft. of durable, wire braid hose rated for 3000 or 4500 PSI; with hose guard for burst protection.
• Heavy-gauge 11/4” steel frame with powder coat finish for all-weather protection.
• Power platform cushioned on 4 vibration isolators for smoother operation and long-life protection to frame and components.

SMART FEATURES
• Four conveniently mounted, quick-couple spray nozzles for varying fan spray.
• Safety relief valve attached to discharge side for protection against excess pressure build up.
• Rust-free, 6-gallon polyethylene diesel fuel tank for hours of operation without interruption.
• EASY! Force trigger gun with cruise control like technology uses its own recoil force to hold the trigger down – no more sore hands after hours of use.
• Water resistant control box with burner on/off switch, adjustable thermostat and hour meter.
• Thermal pump saver valve protects against hot-water damage by venting recirculated water.
• Insulated, dual-lance variable pressure wand with quick-couple connectors for easy attachment of high-pressure spray nozzles.

Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.

KÄRCHER HDS 3.5/30 Pe CAGE — HOT WATER PRESSURE WASHER LIBERTY SERIES

RUGGED AND PORTABLE CLEANING POWER

These portable gas-powered hot water pressure washers are built using heavy-duty components and a rugged steel chassis to withstand the most rigorous conditions. Their compact frame design and tubed pneumatic wheels provide easy maneuvering over all types of terrain. Each unit is ETL certified and comes with a leak free Schedule 80 heating coil surrounded by a standard stainless-steel wrap.

POWERFUL AND DURABLE
• Industrial-grade Honda or Kohler engines with three-year warranty; two models with electric-start standard.
• Efficient burner with transformer for years of reliable and affordable operation.
• Industrial-grade, tri-plunger, oil-bath, direct- drive, Kärcher pump with 7-year warranty.
• 50 ft. of durable, wire braid hose rated for 3000 or 4500 PSI; with hose guard for burst protection.
• Heavy-gauge 11/4” steel frame with powder coat finish for all-weather protection.
• Power platform cushioned on 4 vibration isolators for smoother operation and long-life protection to frame and components.

SMART FEATURES
• Four conveniently mounted, quick-couple spray nozzles for varying fan spray.
• Safety relief valve attached to discharge side for protection against excess pressure build up.
• Rust-free, 6-gallon polyethylene diesel fuel tank for hours of operation without interruption.
• EASY! Force trigger gun with cruise control like technology uses its own recoil force to hold the trigger down – no more sore hands after hours of use.
• Water resistant control box with burner on/off switch, adjustable thermostat and hour meter.
• Thermal pump saver valve protects against hot-water damage by venting recirculated water.
• Insulated, dual-lance variable pressure wand with quick-couple connectors for easy attachment of high-pressure spray nozzles.

Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.

KÄRCHER HDS 3.5/30 P CAGE — HOT WATER PRESSURE WASHER LIBERTY SERIES

RUGGED AND PORTABLE CLEANING POWER

These portable gas-powered hot water pressure washers are built using heavy-duty components and a rugged steel chassis to withstand the most rigorous conditions. Their compact frame design and tubed pneumatic wheels provide easy maneuvering over all types of terrain. Each unit is ETL certified and comes with a leak free Schedule 80 heating coil surrounded by a standard stainless-steel wrap.

POWERFUL AND DURABLE
• Industrial-grade Honda or Kohler engines with three-year warranty; two models with electric-start standard.
• Efficient burner with transformer for years of reliable and affordable operation.
• Industrial-grade, tri-plunger, oil-bath, direct- drive, Kärcher pump with 7-year warranty.
• 50 ft. of durable, wire braid hose rated for 3000 or 4500 PSI; with hose guard for burst protection.
• Heavy-gauge 11/4” steel frame with powder coat finish for all-weather protection.
• Power platform cushioned on 4 vibration isolators for smoother operation and long-life protection to frame and components.

SMART FEATURES
• Four conveniently mounted, quick-couple spray nozzles for varying fan spray.
• Safety relief valve attached to discharge side for protection against excess pressure build up.
• Rust-free, 6-gallon polyethylene diesel fuel tank for hours of operation without interruption.
• EASY! Force trigger gun with cruise control like technology uses its own recoil force to hold the trigger down – no more sore hands after hours of use.
• Water resistant control box with burner on/off switch, adjustable thermostat and hour meter.
• Thermal pump saver valve protects against hot-water damage by venting recirculated water.
• Insulated, dual-lance variable pressure wand with quick-couple connectors for easy attachment of high-pressure spray nozzles.

Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.

KÄRCHER HDS 2.6/30 P CAGE — HOT WATER PRESSURE WASHER LIBERTY SERIES

RUGGED AND PORTABLE CLEANING POWER

These portable gas-powered hot water pressure washers are built using heavy-duty components and a rugged steel chassis to withstand the most rigorous conditions. Their compact frame design and tubed pneumatic wheels provide easy maneuvering over all types of terrain. Each unit is ETL certified and comes with a leak free Schedule 80 heating coil surrounded by a standard stainless-steel wrap.

POWERFUL AND DURABLE
• Industrial-grade Honda or Kohler engines with three-year warranty; two models with electric-start standard.
• Efficient burner with transformer for years of reliable and affordable operation.
• Industrial-grade, tri-plunger, oil-bath, direct- drive, Kärcher pump with 7-year warranty.
• 50 ft. of durable, wire braid hose rated for 3000 or 4500 PSI; with hose guard for burst protection.
• Heavy-gauge 11/4” steel frame with powder coat finish for all-weather protection.
• Power platform cushioned on 4 vibration isolators for smoother operation and long-life protection to frame and components.

SMART FEATURES
• Four conveniently mounted, quick-couple spray nozzles for varying fan spray.
• Safety relief valve attached to discharge side for protection against excess pressure build up.
• Rust-free, 6-gallon polyethylene diesel fuel tank for hours of operation without interruption.
• EASY! Force trigger gun with cruise control like technology uses its own recoil force to hold the trigger down – so, no more sore hands after hours of use.
• Water resistant control box with burner on/off switch, adjustable thermostat and hour meter.
• Thermal pump saver valve protects against hot-water damage by venting recirculated water.
• Insulated, dual-lance variable pressure wand with quick-couple connectors for easy attachment of high-pressure spray nozzles.

Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.

KÄRCHER HEATER 5.0/30 ED — PROVIDING SUPPLEMENTAL HEAT

The perfect solution for turning a cold-water pressure washer into a hot water pressure washer. Our Kärcher Series water heater provides supplemental heat to cold water machines, giving users the benefits and advantages of hot water cleaning when needed. An electric-powered diesel heated unit, the Heater 5.0/30 Ed effectively heats water at a rate of up to 5 gallons per minute. ETL certified to UL & CSA standards.

POWERFUL AND DURABLE
• High-efficiency burner with transformer for years of reliable and affordable operation; produces 380,000 BTU.
• Rust-free, 4.5-gallon polyethylene fuel tank for diesel or heating oil.
• Rugged 11/4-inch steel tube frame and ventilated metal cabinet with epoxy, powder coat finish for all-weather protection.
• Durable, wire braid hose rated for 4500 PSI and with quick coupler allows for tangle-free connection to cold water pressure washer.

SMART FEATURES
• Water resistant control box with adjustable thermostat and extra safe on/off rocker switch for the burner.
• Corrosion-free steel fittings.
• 36 ft. electrical cord with ground fault circuit interrupter for operator safety.

OUTSTANDING MOBILITY
• Easy-grip handles and hand truck design make for easy maneuvering.
• 10” tubed pneumatic tires for easy handling on all terrains or surfaces.

Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.

KÄRCHER 9450 HEATING MODULE — DELIVERS A CLEANING PUNCH

The 9450-heating module provides the flexibility to “convert” a cold-water pressure washer into a hot water unit. By attaching the heating module to a cold-water pressure washer, the pressurized water is now heated to produce all the benefits of hot water cleaning. Uses fuel oil or diesel to heat the water using a high-efficiency, vertical heating coil. Equipped with a flow switch to control the burner.

POWERFUL AND DURABLE
• High-efficiency burner with transformer for years of reliable and affordable operation; produces up to 920,000 BTU.
• Rugged, heavy-duty steel cabinet painted with an epoxy powder-coat finish for all-weather protection
• Multiple fuel-burner types available: Diesel, Kerosene, Home Heating Oil, Natural Gas, LP Gas (optional)

SMART FEATURES
• Effective heating of up to 10 GPM provides supplemental hot water for cold water pressure washers.
• Helpful trilingual labels with operating instructions in English, Spanish and French for owner and operator protection.
• Many uses: fleet, oilfield, and food processing applications
• Designed to attach to cold water pressure washers with cleaning power of 6 to 10 GPM and up to 3200 PSI.
• All models operate on 115V/ 1PH and are ETL safety certified.

Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.

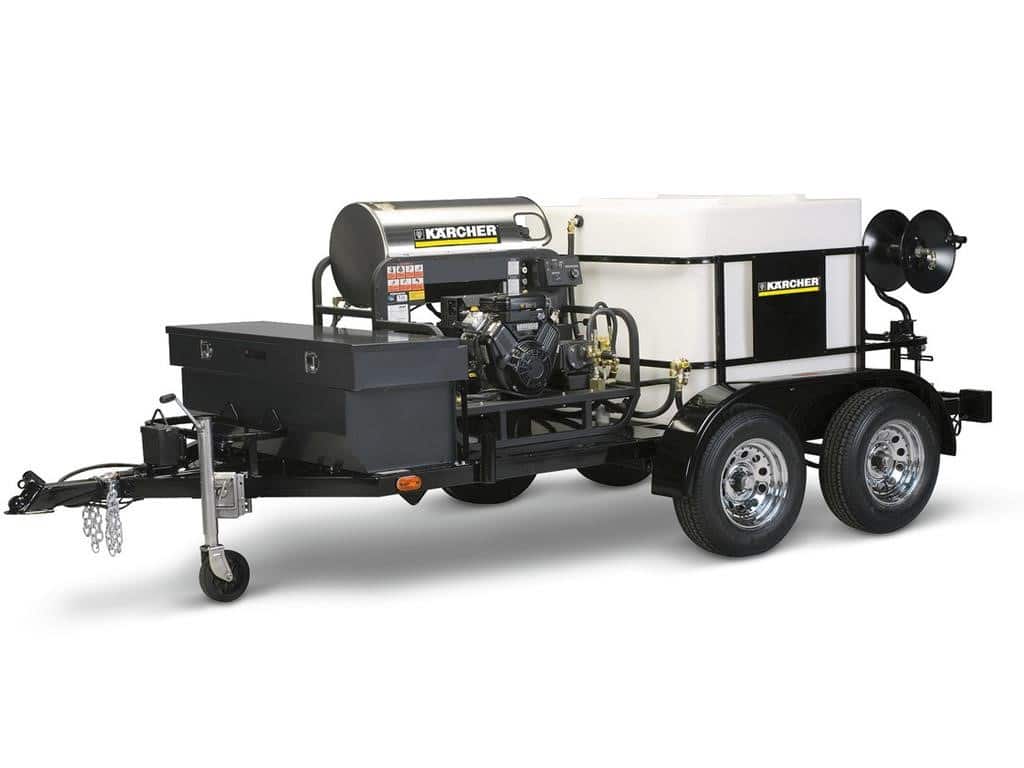

KÄRCHER TRK6000 TRAILER — HIGH CLEANING PERFORMANCE

The Kärcher TRK-6000 tandem axle pressure washer trailer is designed to accommodate a variety of pressure washer skids. This trailer package is rugged, affordable, versatile, and easy to ship and store. The TRK-6000 is made of durable 10-gauge steel with electrical wiring recessed within a tubular frame. The wheel and axle assembly features leaf-spring suspension of up to 3,500 lbs. Includes a high-density, polyethylene 330-gallon water tank with a 12-inch access port, 1 1/2-inch drain valve, 3/4-inch float valve and a 50-mesh inlet filter. A 3-way ball valve simplifies switching of the water flow from the holding tank to a faucet.

Trailers also include an electric start engine and battery, 1,000 lb. swivel jack with a 25/16-inch ball coupler for quick and easy hook up of the trailer, two 5/16-inch chains for additional safety, and a lighted license plate holder and recessed tail lights.

SMART FEATURES
• Electrical wiring is recessed within the tubular frame.
• Lighted license plate holder and recessed tail lights.
• Two 3-way ball valves for easy switching of the water flow from the holding tank to a faucet.
• Electric brakes and break away kit

OUTSTANDING MOBILITY
• 1,500 lb.-rated swivel jacks with a 2-5/16-inch ball coupler for quick and easy hook up of the trailer.
• Wheel and axle assembly has an industrial undercarriage leafspring suspension of up to 3,500 lbs. per axle and 15-inch, white spoke wheels (TRK-6000 above shown with optional chrome wheels and fenders).

POWERFUL AND DURABLE
• Extra-rugged 2-by-3-inch structural tubing is covered with a powdercoated epoxy black finish for all-weather protection.
• Durable steel cage for holding the tank and pressure washer in place.
• High-density, polyethylene water tank with 12-inch access port, 1-1/2- inch drain valve, 3/4-inch float valve and a 50-mesh inlet filter; two 5/16- inch chains for additional safety.

Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.

KÄRCHER TRK2500 TRAILER — HIGH CLEANING PERFORMANCE

Kärcher’s TRK-2500 pressure washer trailers are designed to accommodate a variety of pressure washer skids. This trailer package is rugged, affordable, versatile, and easy to ship and store. The TRK-2500 is made of durable 10-gauge steel with electrical wiring recessed within a tubular frame. The wheel and axle assembly features leaf-spring suspension of up to 3,500 lbs. The 39-inch tongue features a swing-away hinge that saves on storage space. Includes a high-density, polyethylene 200-gallon water tank with a 12-inch access port, 1 1/2-inch drain valve, 3/4-inch float valve and a 50-mesh inlet filter. A 3-way ball valve simplifies switching of the water flow from the holding tank to a faucet.

Trailers also include an electric start engine and battery, 1,000 lb. swivel jack with a 2-inch ball coupler for quick and easy hook up of the trailer, two 5/16-inch chains for additional safety, and a lighted license plate holder and recessed tail lights.

CUSTOMIZATION
• Hose reel, utility rack and sanddle box options available.

SMART FEATURES
• Swing-away hinge makes for easy storing and shipping.
• High-density, polyethylene 200-gallon water tank with a 12-inch access port, 1 1/2-inch drain valve, 3/4-inch float valve and a 50-mesh inlet filter; and two 5/16-inch chains for additional safety
• Electric brakes and break away kit
• Electrical wiring recessed within tubular frame

3 EASE OF USE
• Lighted license plate holder and recessed tail lights

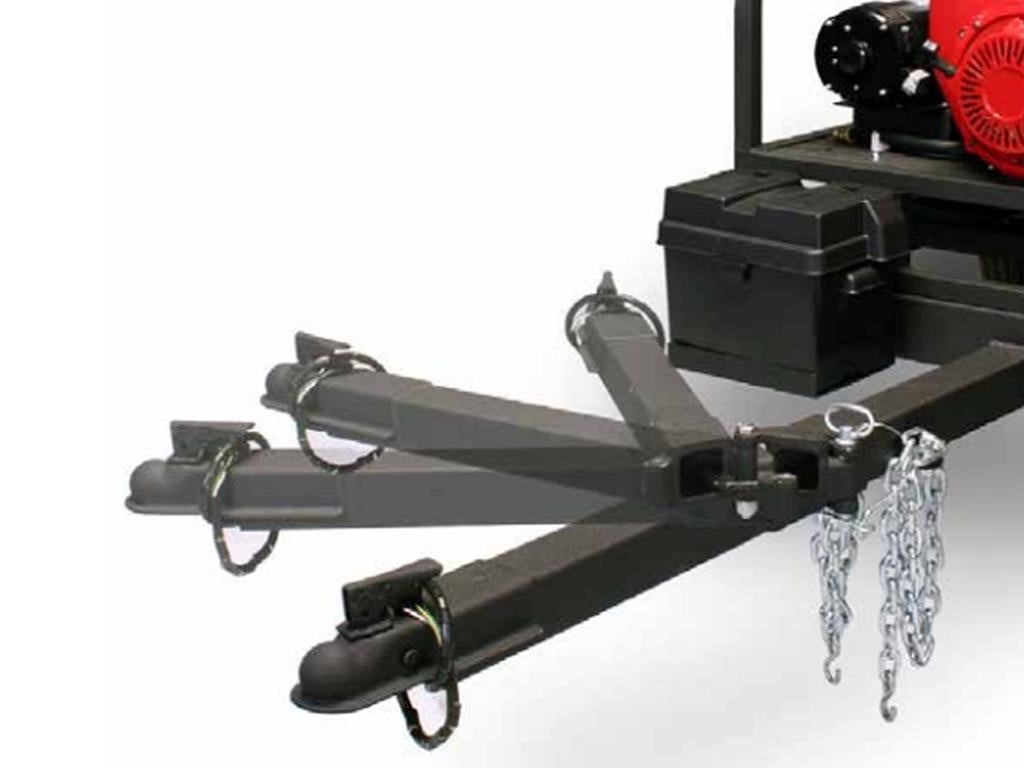

• 1,000 lb. swivel jack with a 2-inch ball coupler for quick and easy hook up of the trailer
• 3-way ball valve for easy switching of the water flow from the holding tank to a faucet

Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
