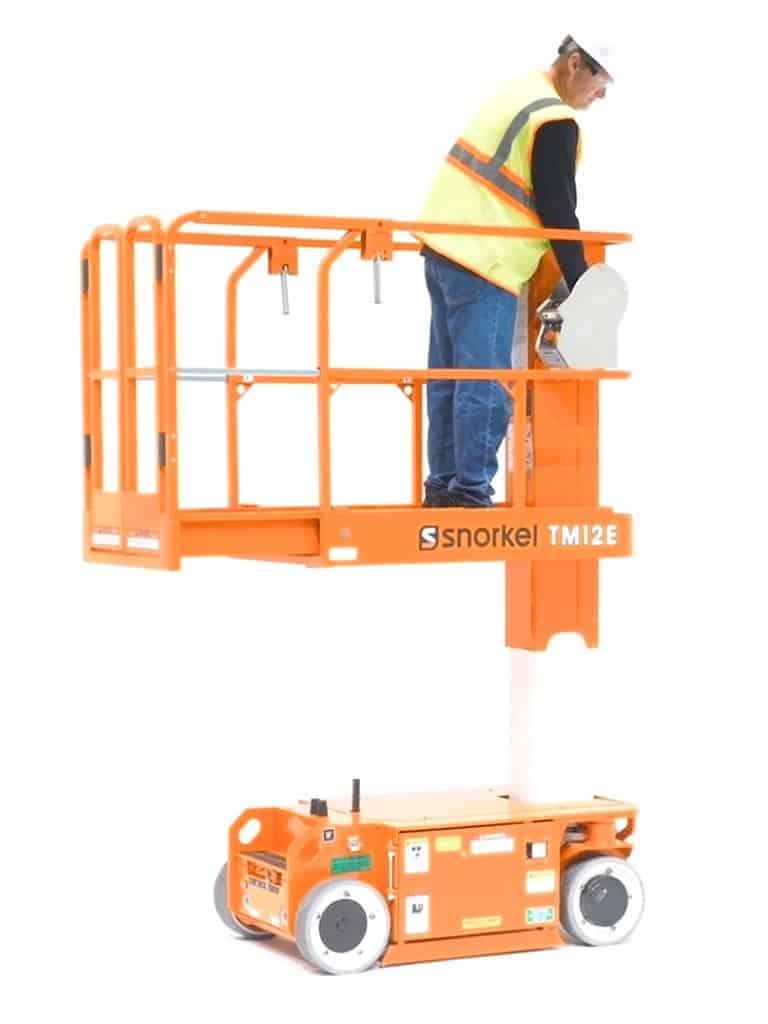

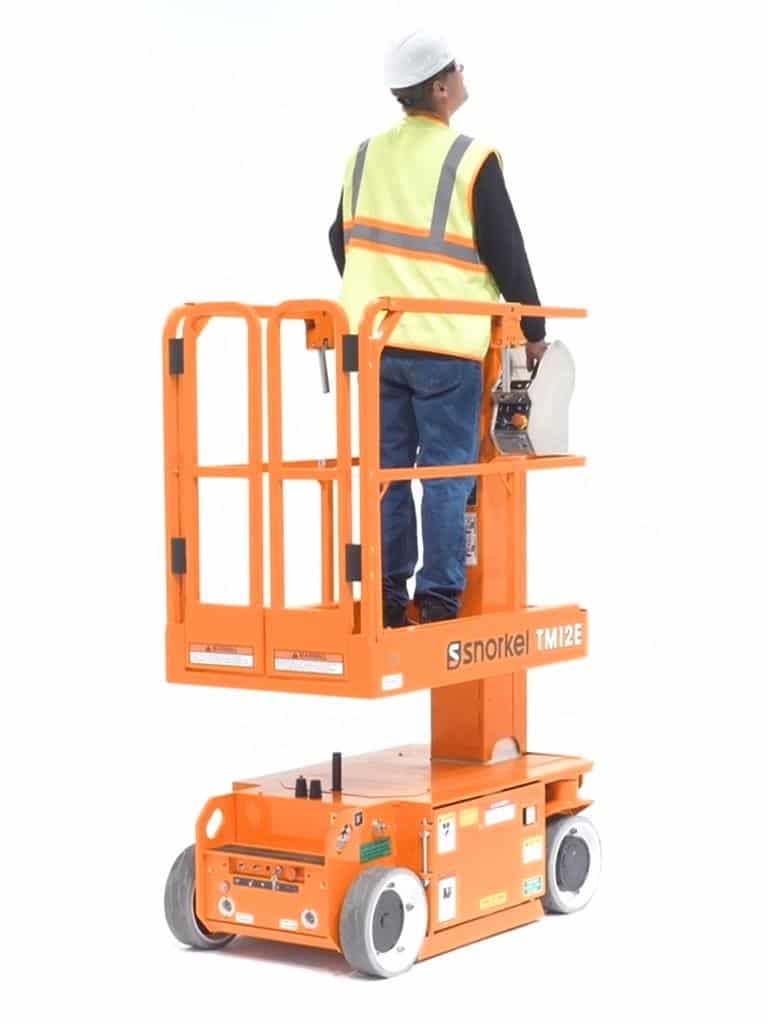

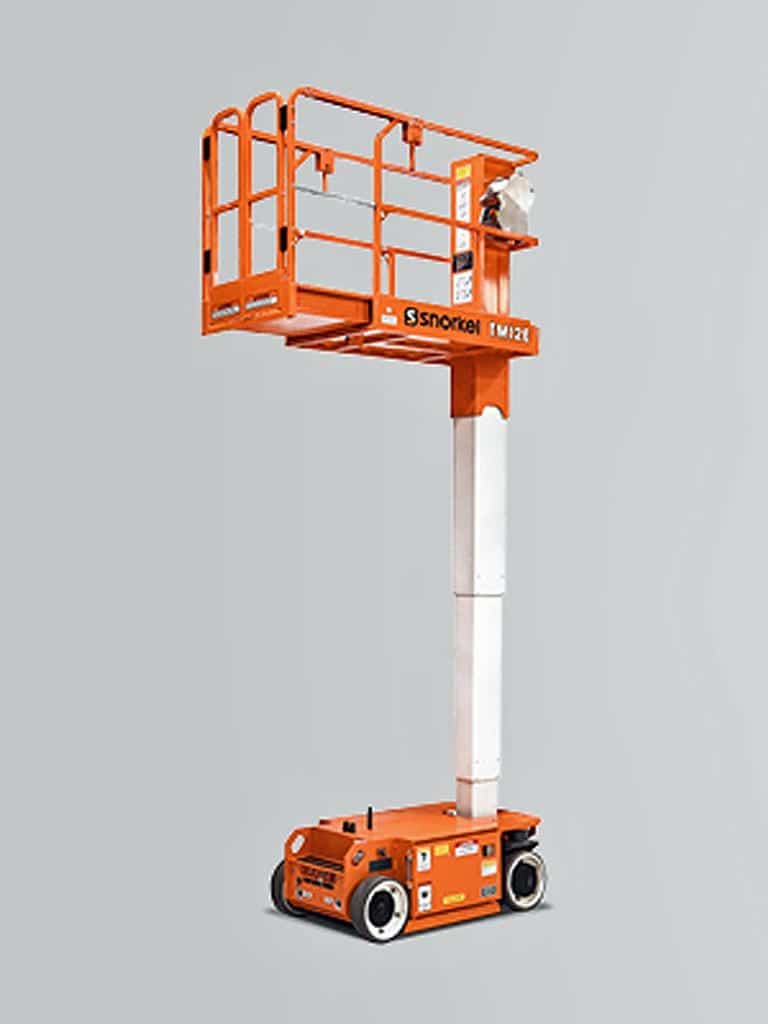

SNORKEL SELF-PROPELLED TELESCOPIC MAST LIFT − TM12E
THE PROVEN RENTAL PERFORMER
The Snorkel TM12E is an efficient self-propelled telescopic mast lift. This mast lift is compact in dimension and robust in performance with a smooth and quiet electric drive. A zero inside turning radius makes the TM12E easy to use in tight areas.
ELECTRIC DRIVE TELESCOPIC MAST LIFTS
• Industry-leading electric drive telescopic mast lifts
• Versatile, robust and simple to use
• Drives through a standard doorway
• Smooth & efficient electric drive

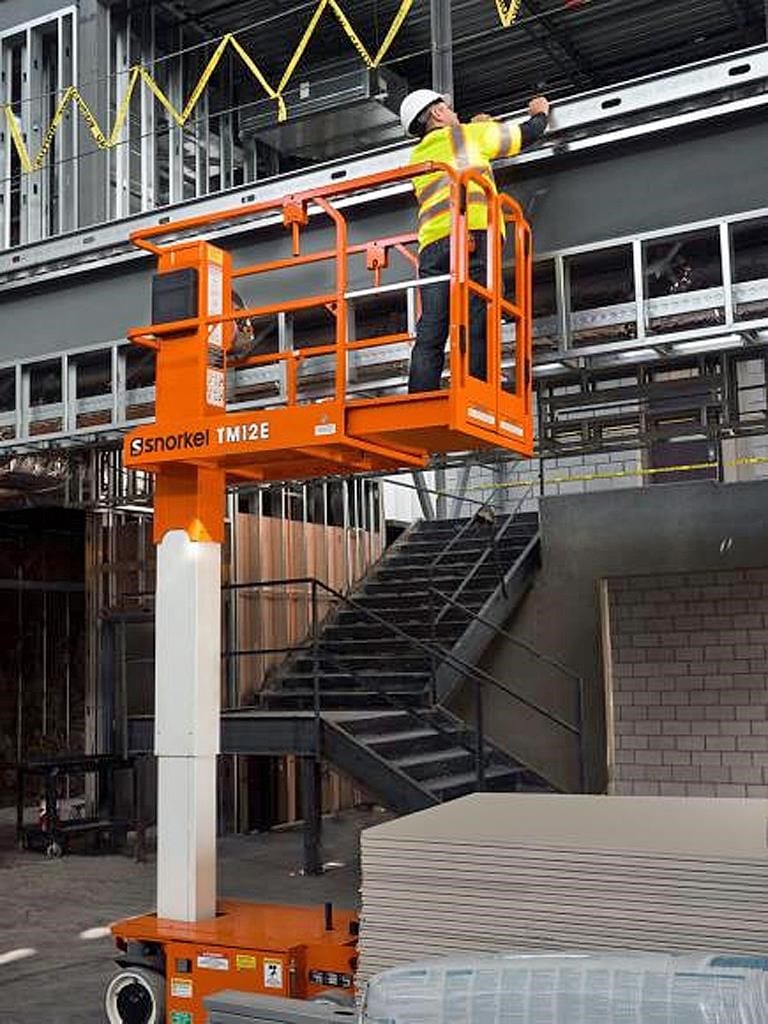

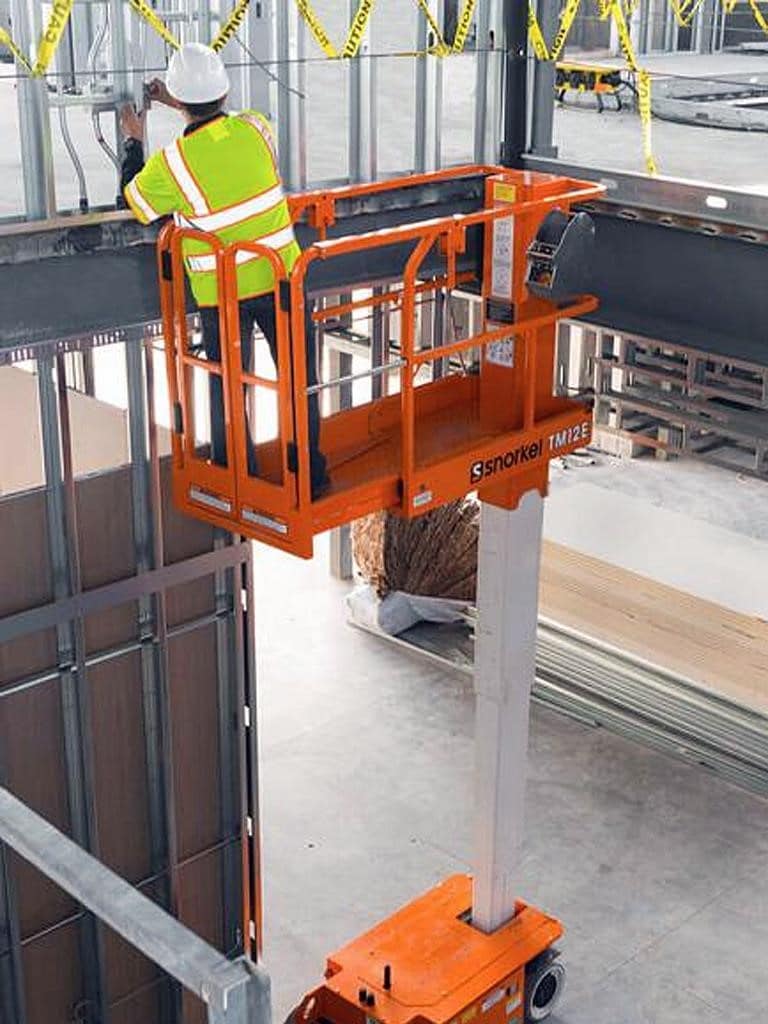

• Ideal for many applications – from construction to stock picking
SELF PROPELLED MAST LIFTS

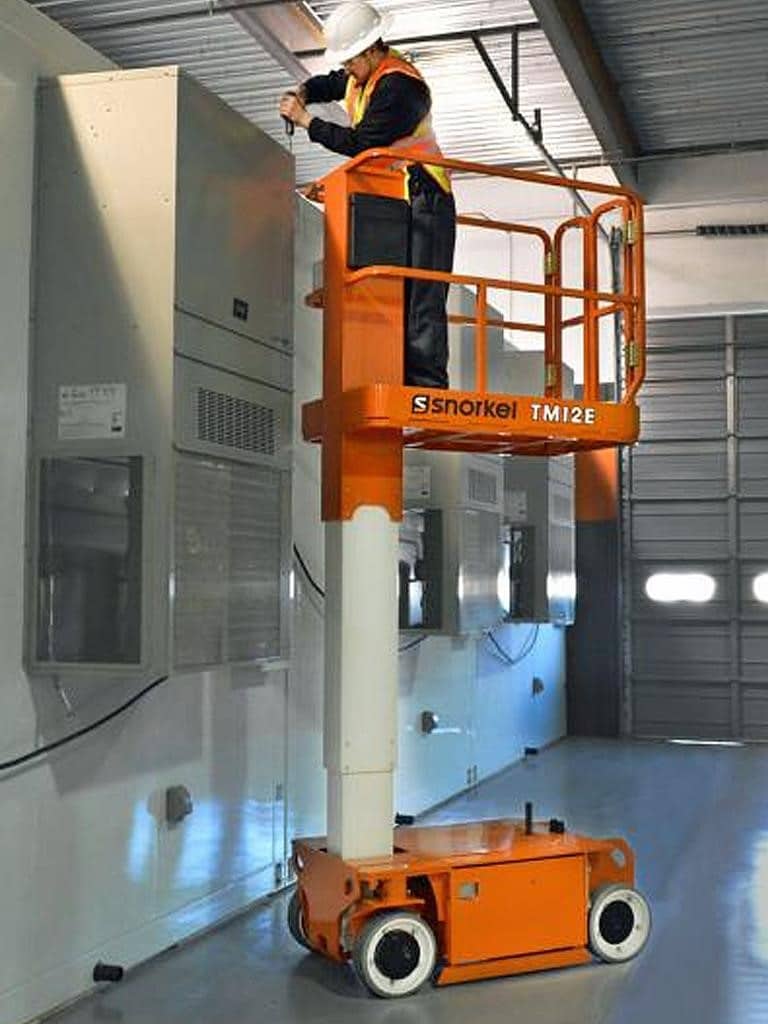

Snorkel’s line of self-propelled telescopic mast lifts are ideal for various indoor applications. Narrow dimensions allow these lifts to be driven through standard doorways and carried in passenger elevators. Available electric drive provides longer duty cycles and increased efficiency on the job on select models.
STANDARD FEATURES
• Zero inside turning radius
• Roll-out deck extension
• Proportional controls
• Saloon-door style entry gates
• Descent & tilt alarms
• Emergency lowering at chassis controls
• Non-marking rubber tires
• 2 persons indoors
• 1 person outdoors
• Crane lift points
• Hour meter & on-board diagnostics display
• Horn
• Selectable motion alarm
• Integrated battery charger 110V 20A
• 2 year parts & labor, 5 year structural warranty
• ANSI compliant
OPTIONS
• Special paint colors
• Environmental hydraulic oil
• Order picker tray
• Snorkel OnSite™ telematics
Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
- POWER - Battery charger: 20 Amp
- PERFORMANCE - Raise / lower time: 28 / 36 seconds
- DIMENSIONS - Max. working height: 18 ft
- PERFORMANCE - Max. operating slope (side to side): 2°
- PERFORMANCE - Max. wind speed: 28 mph
- PERFORMANCE - Max. drive speed (stowed): 2.5 mph
- PERFORMANCE - Inside turning radius : 0 in
- POWER - Power source : 24V 220 Ah batteries
- PERFORMANCE - Max. drive height: 12 ft
- PERFORMANCE - Gradeability : 25%
- DIMENSIONS - Ground clearance : 3 in
- PERFORMANCE - Outside turning radius : 55.5 in
- WEIGHT - Weight : 2,240 lbs
- PERFORMANCE - Max. operating slope (front to back): 2°
- DIMENSIONS - Deck extension length: 20 in
- DIMENSIONS - Overall width: 2 ft 6 in
- PERFORMANCE - Controls : Proportional
- DIMENSIONS - Max. platform height : 12 ft
- DIMENSIONS - Platform size (extended): 27 in x 59 in
- PERFORMANCE - Max. drive speed (elevated): 0.3 mph
- PERFORMANCE - Drive system: Dual DC motors
- DIMENSIONS - Platform size (stowed): 27 in x 39 in
- PERFORMANCE - Tires : 12.7 in non-marking rubber
- PERFORMANCE - Platform capacity (SWL) : 500 lbs
- PERFORMANCE - Parking brake : 2 wheel, spring-applied, electric release
- DIMENSIONS - Overall length: 4 ft 6 in
- DIMENSIONS - Stowed height: 5 ft 6 in
