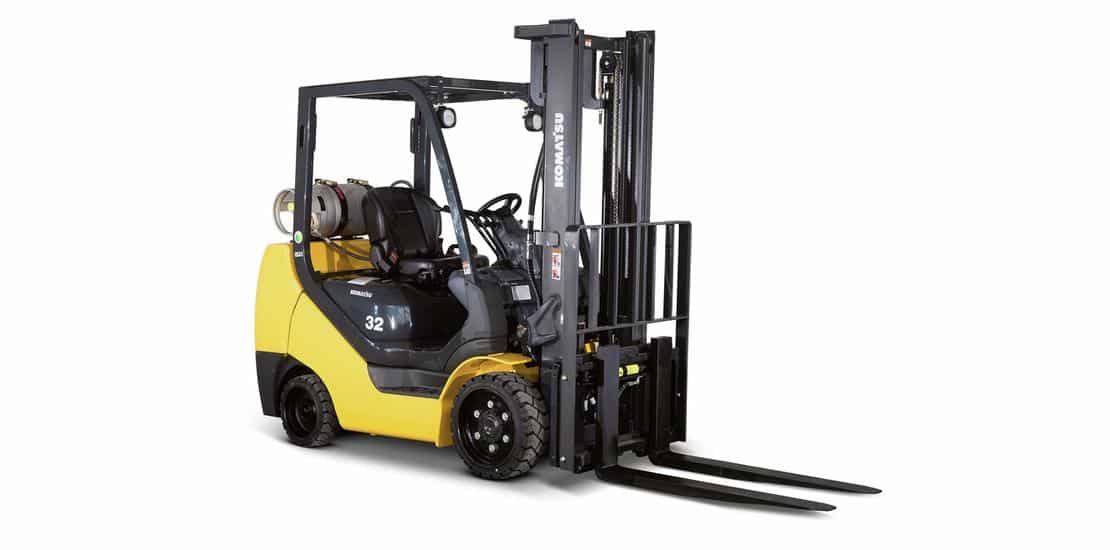

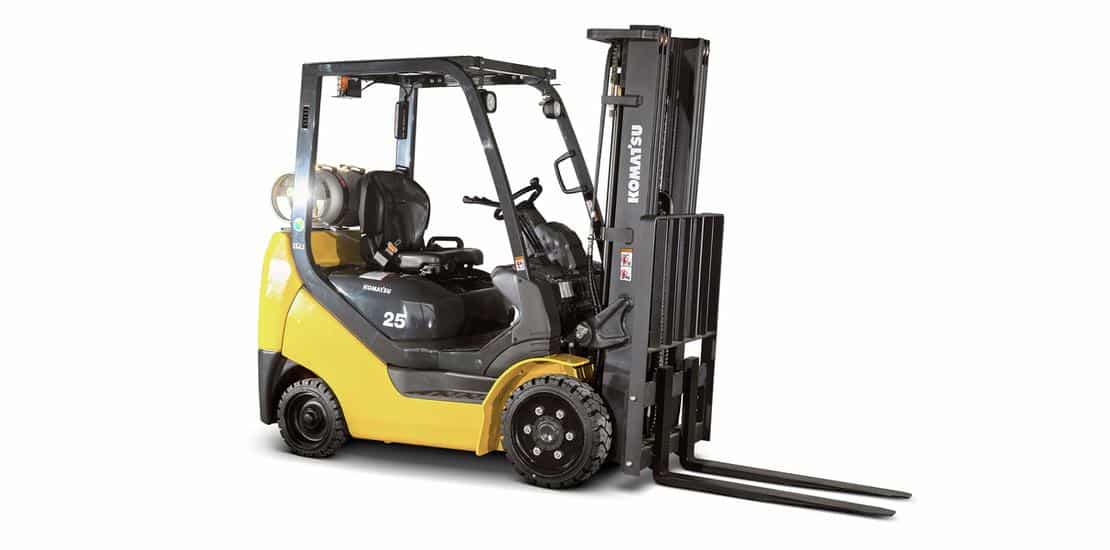

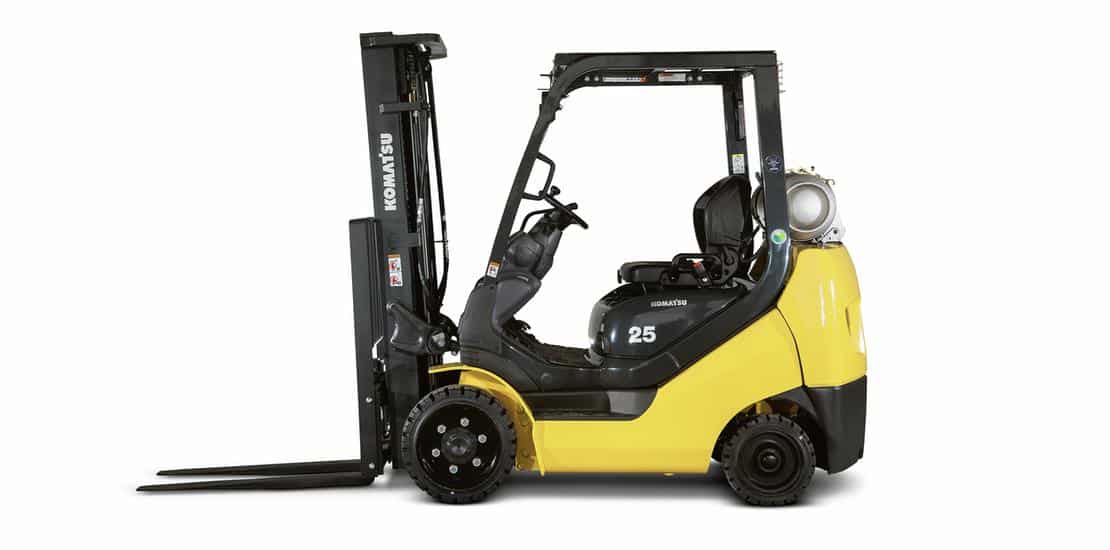

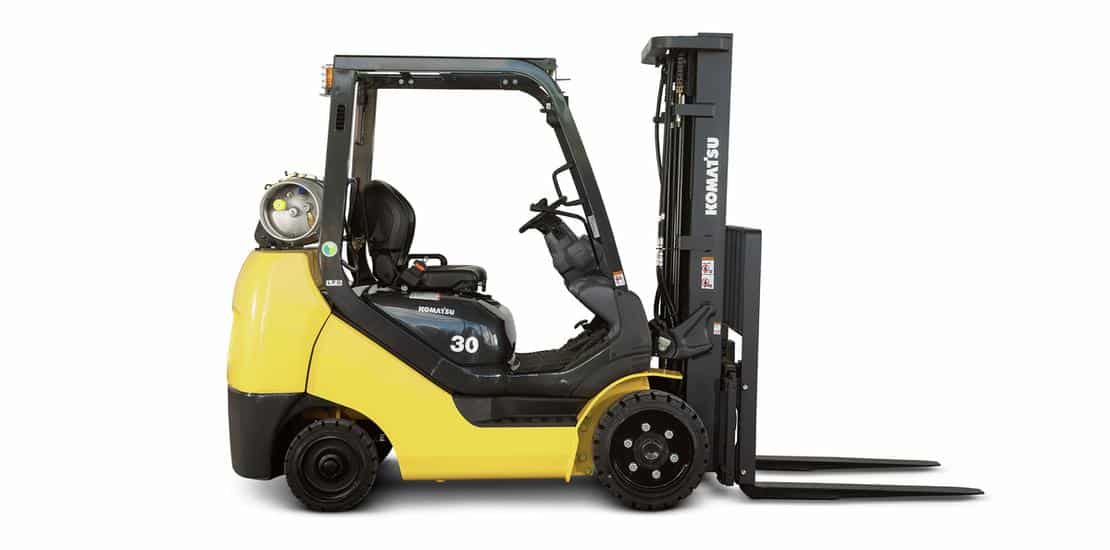

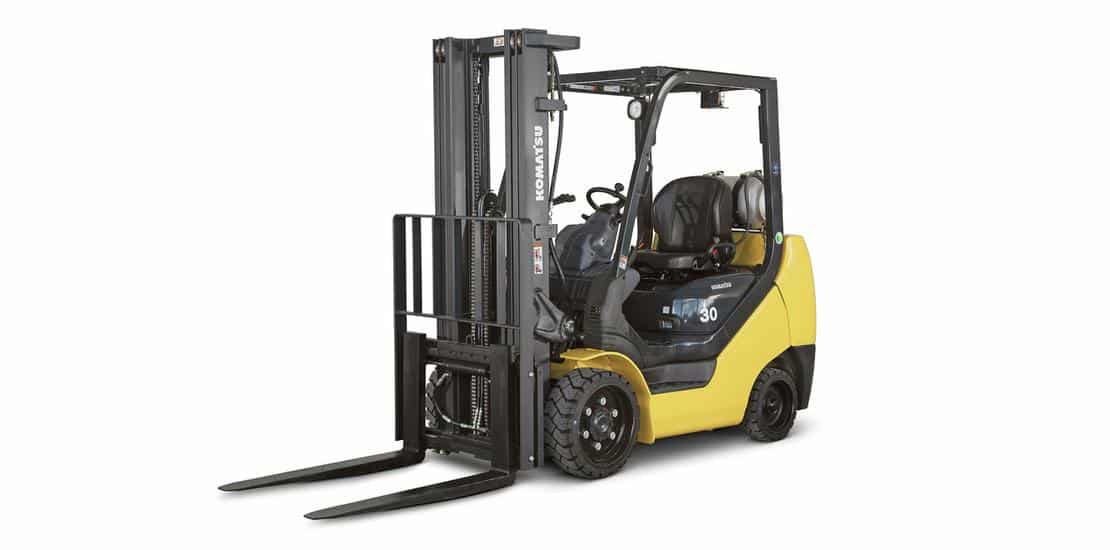

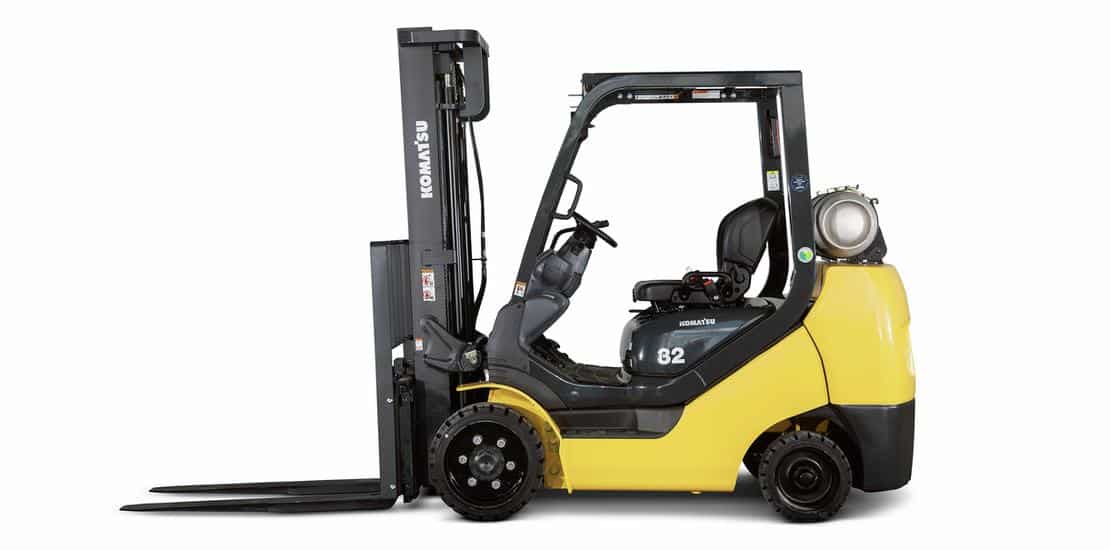

Dimensions

DIMENSIONS FG20ST-16 FG25ST-16 FG25SHT-16 FG30SHT-16 FG32SHT-16 Tilting Angle – 2 stage masts, Forward/Backward 6 / 8 deg 6 / 8 deg 6 / 8 deg 6 / 8 deg 6 / 8 deg Tilting Angle – 3 stage masts, Forward/Backward 6 / 5 deg 6 / 5 deg 6 / 5 deg 6 / 5 deg 6 / 5 deg Mast Height , Lowered 85.5 in 85.5 in 85.5 in 85.5 in 88.5 in Mast Height, Extended 176 in 176 in 176 in 176 in 176 in Free Lift Height 5.5 in 5.5 in 5.5 in 5.5 in 5.5 in Maximum Fork Height 128 in 128 in 128 in 128 in 128 in Height Overhead Guard 80.9 in 80.9 in 80.9 in 80.9 in 80.9 in Length, with Standard Forks 132.9 in 135.4 in 135.4 in 137.8 in 139.2 in Length to Fork Face 90.7 in 93.3 in 93.3 in 95.7 in 97 in Overall Width at Drive Tires 42.1 in 42.1 in 42.1 in 43.3 in 43.3 in Forks,
Thickness x Width x Length
1.6 x 4 x 42 in 1.6 x 4 x 42 in 1.6 x 4 x 42 in 2 x 5 x 42 in 2 x 6 x 42 in Carriage Width/ITA Class 37 in / II 37 in / II 37 in / II 37 in / III 37 in / III Ground Clearance, Under Mast 5.5 in 5.5 in 5.5 in 5.5 in 5.5 in Ground Clearance, Center of Wheelbase 3.9 in 3.9 in 3.9 in 3.9 in 3.9 in Right Angle Stacking Aisle 92.5 in 94.5 in 94.5 in 98.8 in 100 in Turning Radius, Outside 75.6 in 77.6 in 77.6 in 81.5 in 82.7 in

Performance

DRIVE FG20ST-16 FG25ST-16 FG25SHT-16 FG30SHT-16 FG32SHT-16 Engine Manufacturer /
Engine Model
GCT / K21 GCT / K21 GCT / K25 GCT / K25 GCT / K25 Rated Output
(SAE Net)
54 HP @ 2,700 rpm 54 HP @ 2,700 rpm 60 HP @ 2,700 rpm 60 HP @ 2,700 rpm 60 HP @ 2,700 rpm Maximum Torque
(SAE Net)
111 lbs.-ft. @ 2,000 rpm 111 lbs.-ft. @ 2,000 rpm 136 lbs.-ft. @ 2,000 rpm 136 lbs.-ft. @ 2,000 rpm 136 lbs.-ft. @ 2,000 rpm # of Cylinders /
Displacement
4 / 126 cu in 4 / 126 cu in 4 / 152 cu in 4 / 152 cu in 4 / 152 cu in

General

GENERAL FG20ST-16 FG25ST-16 FG25SHT-16 FG30SHT-16 FG32SHT-16 Power Type LPG LPG LPG LPG LPG Operation Type Sit-Down Sit-Down Sit-Down Sit-Down Sit-Down Capacity @ 24 in.
Load Center
4,000 lbs. 5,000 lbs. 5,000 lbs. 6,000 lbs. 6,500 lbs. Load Distance From
Center Axle (2 Stage)
16.9 in 16.9 in 16.9 in 17.3 in 17.3 in Wheelbase 55.1 in 55.1 in 55.1 in 57.1 in 57.1 in

Weight

WEIGHT FG20ST-16 FG25ST-16 FG25SHT-16 FG30SHT-16 FG32SHT-16 Service Weight 7,300 lbs. 8,180 lbs. 8,180 lbs. 9,440 lbs. 9,920 lbs. Axle Loading,
Loaded Front
9,820 lbs. 11,330 lbs. 11,330 lbs. 13,260 lbs. 14,000 lbs. Loaded Rear 1,480 lbs. 1,850 lbs. 1,850 lbs. 2,180 lbs. 2,430 lbs. Unloaded Front 2,820 lbs. 2,600 lbs. 2,600 lbs. 2,870 lbs. 2,740 lbs. Unloaded Rear 4,480 lbs. 5,580 lbs. 5,580 lbs. 6,570 lbs. 7,180 lbs.

Drive

OTHER FG20ST-16 FG25ST-16 FG25SHT-16 FG30SHT-16 FG32SHT-16 Relief Pressure,
Maximum
2,630 psi 2,630 psi 2,630 psi 2,630 psi 2,630 psi Transmission Powershift Powershift Powershift Powershift Powershift Sound Level 82 dB 82 dB 83 dB 83 dB 83 dB

Tires

TIRES FG20ST-16 FG25ST-16 FG25SHT-16 FG30SHT-16 FG32SHT-16 Tire Type Cushion Cushion Cushion Cushion Cushion Tire Size – Front 21 x 7 x 15 in 21 x 7 x 15 in 21 x 7 x 15 in 21 x 8 x 15 in 21 x 8 x 15 in Rear 16.25 x 5 x 11.25 in 16.25 x 5 x 11.25 in 16.25 x 5 x 11.25 in 16.25 x 6 x 11.25 in 16.25 x 6 x 11.25 in Number of Wheels, Front/Rear 2x / 2 2x / 2 2x / 2 2x / 2 2x / 2 Tread – Front 34.6 in 34.6 in 34.6 in 35.2 in 35.2 in Rear 35.4 in 35.4 in 35.4 in 34.8 in 34.8 in
