SES15-25 CLARK Forklifts CLARK Electric Forklifts

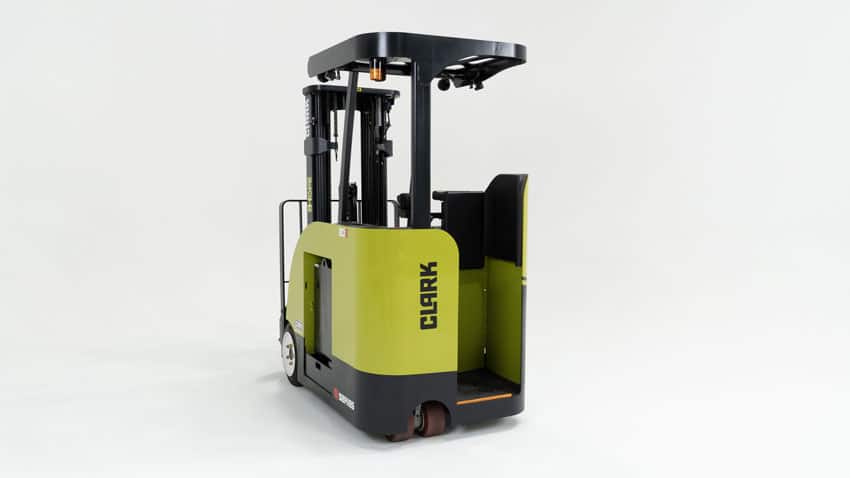

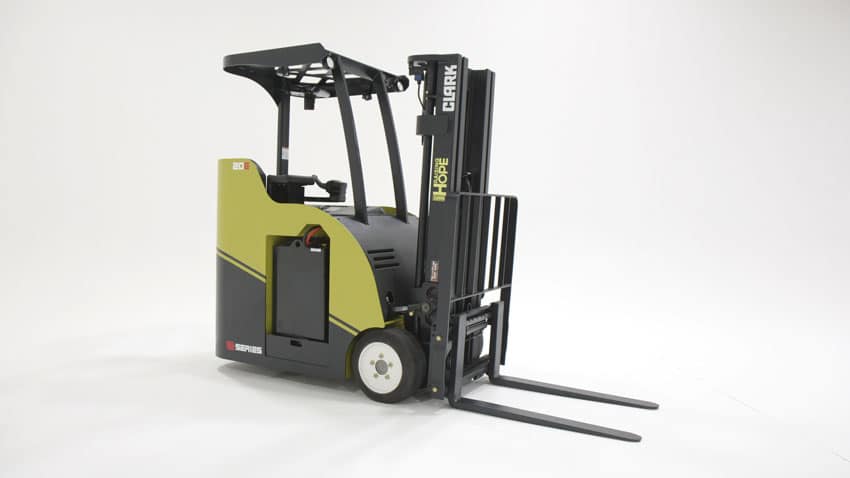

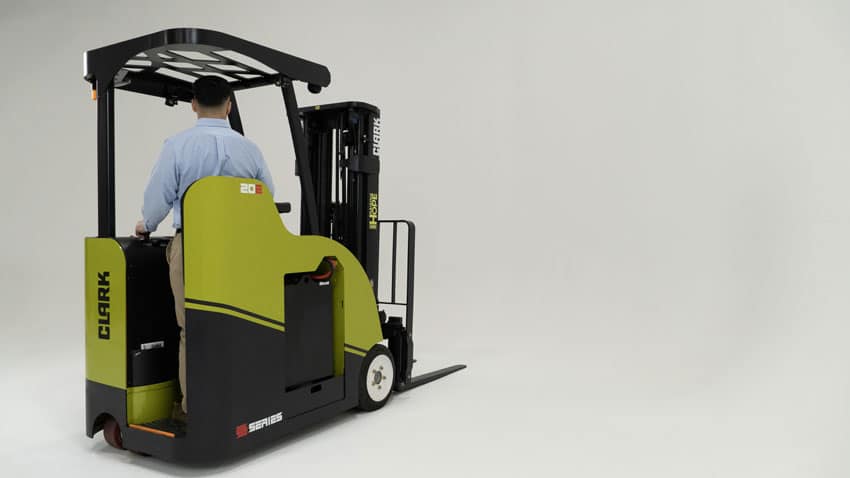

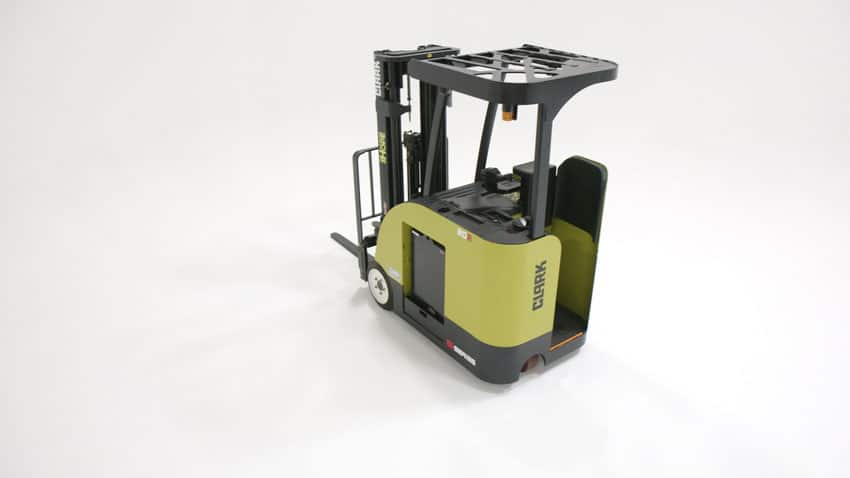

SES15-25 CLARK Electric Forklifts
The SES Forklift is engineered for superior comfort, control, and efficiency, ensuring operators perform at their best throughout demanding shifts. With a synchronized armrest and joystick, ergonomic floating floor, and spacious design, it prioritizes operator comfort and precision handling. Its patented nested I-beam mast enhances stability and maintains greater load capacity at high lift heights, reducing the need for a higher-capacity truck. The Smart Dash LCD display offers real-time diagnostics, programmable settings, and automatic dealer contact to minimize downtime. Safety is paramount, with features like real-time fork height monitoring, automatic shutoff, and an anti-rollback system to prevent accidents. The maintenance-free electric braking system reduces operating costs, while LED lights, red boundary markers, and an integrated fire extinguisher improve workplace safety. Designed for durability, the SES features a fully welded frame for long-lasting reliability. With cutting-edge technology and thoughtful operator enhancements, the SES delivers unmatched performance, stability, and safety in every operation.
- Ergonomic Comfort & Control
- Precision Handling

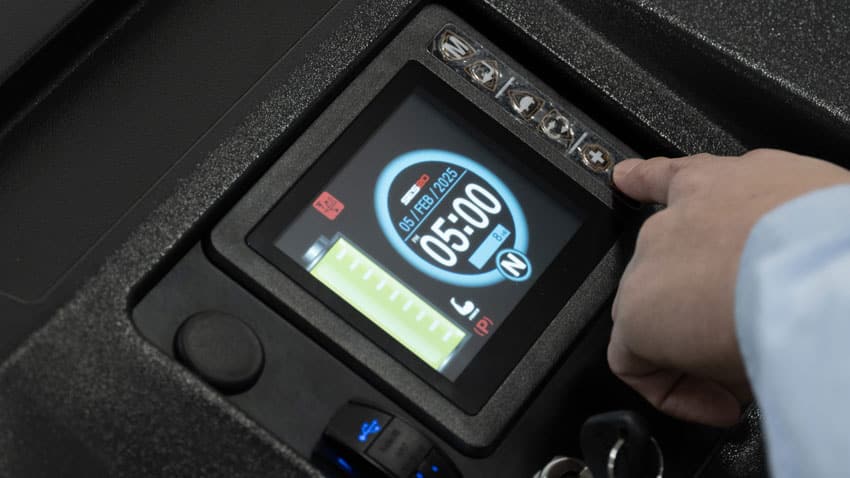

- Smart Dash Technology
- Patented Strength & Stability
- Maintenance-Free Efficiency
- Advanced Safety Features
- Integrated Performance Systems
- Operator Convenience
- Fusion Lithium Battery Option Available
- LOAD CAPACITY RANGE: 3,000-5,000 LBS
- TRAVEL SPEED UP TO : 7.3 MPH (L) 11.7 MPH (U)
- OVERHEAD GUARD LEAST: 86.8 IN
- TURNING RADIUS : 53.8 IN (1366 mm) - 60.6 IN (1538 mm)
Tech Specs
| Load Capacity / Rated Load (lbs/kg) | Height Overhead Guard (in/mm) | Width (in/mm) | Right Angle Stack (in/mm) | Outside Turning Radius (in/mm) | Inside Turning Radius (in/mm) | Top Speed Loaded (kmp/mph) | Top Speed Unloaded (kmp/mph) | Power Unit – HP(KW) @rpm | |
|---|---|---|---|---|---|---|---|---|---|
| SES15 | 3000 / 1360 | 86.8 / 2205 | 41.5 (1055) | 127 (3226) | 53.8 / 1366 | N/A / N/A | 7.3 / 11.7 | 7.3 / 11.7 | 36V / 48V |
| SES17 | 3500 / 1588 | 86.8 / 2205 | 41.5 (1055) | 127 (3226) | 58.1 / 1477 | N/A / N/A | 7.3 / 11.7 | 7.3 / 11.7 | 36V / 48V |
| SES20 | 4000 / 1814 | 86.8 / 2205 | 41.5 (1055) | 132 (3353) | 58.1 / 1477 | N/A / N/A | 7.3 / 11.7 | 7.3 / 11.7 | 36V / 48V |
| SES25 | 5000 / 2268 | 86.8 / 2205 | 43.5 (1106) | 134 (3404) | 60.6 / 1538 | N/A / N/A | 7.3 / 11.7 | 7.3 / 11.7 | 36V / 48V |
