CLARK GEX 40/45/50 CLARK Forklifts CLARK Electric Forklifts
CLARK GEX 40/45/50 CLARK Electric Forklifts
Need Assistance?
Our expert team can help.

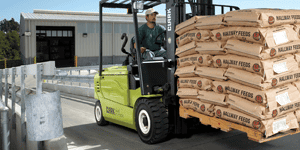

In the past, one truck would be used for outdoor applications and another truck would be used for indoor warehousing. Now one GEX can handle both environments, leaving you with the thought… two “hands” aren’t always better than one.
- Weight Capacity (lbs): 8000 / 9000 / 10000 lbs
- Battery Voltage: 100% AC Electric 80 Volt
- Weight Capacity (kg): (4000 / 4500 / 5000 kg)

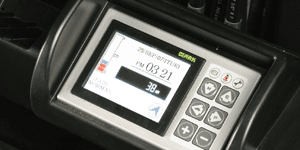

- Indicates the current alarm code and stores previous alarm codes for quick access

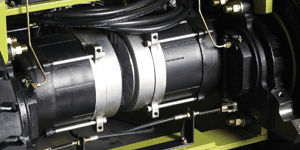

- Enclosed, brushless
- The operator can select from 4 pre-set performance modes
- GEX 40/45/50 can accommodate 72 kwh battery
- Certain adjustments can be password protected to allow only authorized operators to make adjustments
- Same motors for E & EE
- Silent staging reduces shock and vibration

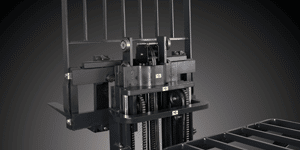

- Carriage has 6 rollers to maximize load distribution and reduce free play
- Relays steer tire position to control
- Thermal and stall protection
- Nested I-channel allows space for cylinders, hoses and chains
- Reduces truck travel speed in turns
- Only requires one receptacle via single battery connector

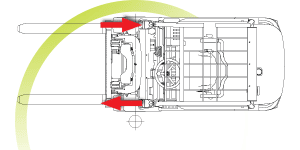

- Dual/powered reversing for tighter turns
- Provides added traction, especially on wet or uneven surfaces
- Rivals IC truck performance in speed, acceleration and gradeability

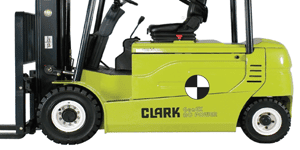

- CLARK moved back the steer axle, dropped the battery compartment and moved all major components lower
- Suitable for Wet Applications
- Inside wheel power reverses in tight turns preventing scuffing of steer tires like conventional 4-wheel trucks
- Higher voltage = lower line loss & heating = greater efficiency
- Provides excellent lateral stability
